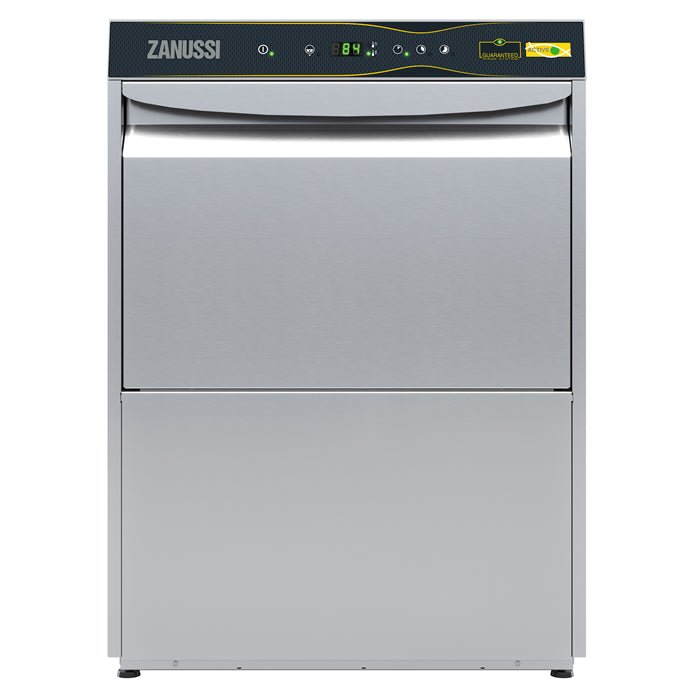

Premium Undercounter Dishwasher with Drain Pump, Detergent Dispenser & Atmospheric Boiler.

Key Features

• • 4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.

  • Incorporated Soft Start feature to offer additional protection to more delicate items.

  • Constant temperature of 84 °C thoughout the rinsing cycle regardless of the network's water pressure and temperature.

  • Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.

  • Digital read-out keeps operator informed as to cycle status as well as temperatures.

  • Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.

  • High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back into the network as a result of a sudden drop in main pressures.

  • IPX 4 water protection.

  • Low noise level.

  • State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.

  • Three phase or single phase electrical connection, convertible on-site.

  • Unique temperature interlock guarantees required temperatures in both the wash and final rinse.

  • Washing capacity of 40 baskets or 720 dishes per hour.

  • Washing system endowed with rotating washing arms, high powered wash pump and large capacity boiler for professional washing.

  • Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.

  • Simple control panel with digital display allows on-site personalization of washing and rinsing cycle times and temperatures as well as precise rinse aid and detergent quantities to suit customer's needs.

  • Simple service from the front.

  • Slanted wash arms to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.

  • Green light of Guaranteed Rinse System (ACTIVE) confirms that items have been rinsed properly.

  • Built-in atmospheric boiler sized to raise incoming water to 84 °C minimum for sanitizing rinse. No external booster is required.

  • Solid double skinned counter-balance door with hurt-free handle fully in stainless steel.

  • An effective rinse system uses only 2,5 litres of clean hot water per basket for lower running costs.

  • Element protection from dry fire and low water.

  • Incorporated drain pump to control water level in wash tank draining.

  • Interchangeable wash/rinse arms screw out for simple clean up.

  • Large deep drawn wash tank and internal wash area with round corners and no pipes to avoid dirt built-up.

  • Revolving Stainless steel wash/rinse arms above and below the basket.

  • The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.

  • Unit to feature smooth surfaces to facilitate cleaning.

  • 304 stainless steel boiler with higher welding protection to increase resistance to corrosion.

  • PVC water supply hose with metal connections resistant to high water pressure.

  • Completely closed on the back by a cover plate.

  • Large tank filter collects the soil to keep the wash water clean for a longer time and have better washing performance.

  • Front panel, door, wash tank, tank filters, wash arms and rinse arms made in heavy duty anti-corrosive 304 AISI stainless steel.
