Hoshizaki IM-240XPE-28 180kg Modular & Stackable Extension Cube Ice Maker
The Hoshizaki IM-240XPE-28 is a high-output modular and stackable extension cube ice maker, producing approximately 180kg of premium 28mm cube ice every 24 hours at 21°C air / 15°C water conditions, with production reaching approximately 195kg per day under optimal conditions.
Designed as an extension model for the Hoshizaki IM-240DPE-28, the IM-240XPE-28 provides a space-efficient way to increase ice production capacity for growing hospitality and foodservice operations.
Part of Hoshizaki's latest IM CUBE generation, this commercial ice maker combines Hoshizaki's renowned hard, clear and slowly melting cube ice with automated cleaning, smart maintenance notifications, variable-speed pump technology and durable commercial construction.
Please Note: This is a modular extension ice maker. Ice storage bin is sold separately.
Key Features
- Modular and stackable extension cube ice maker
- Designed to expand the capacity of the Hoshizaki IM-240DPE-28
- Produces approx. 180kg of ice per 24 hours at 21°C air / 15°C water
- Up to approx. 195kg per 24 hours at 10°C air / 10°C water

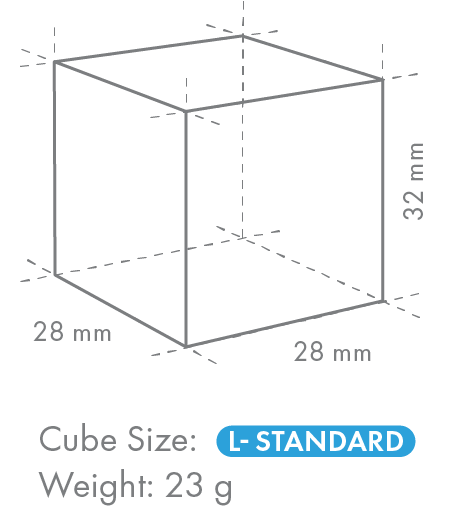

- Produces Hoshizaki's premium 28mm cube ice
- Hard, clear and slowly melting individual cubes
- Modular and stackable configuration for increased ice production
- Closed water circuit supports hygienic ice production
- Closed Cell System forms cubes individually for consistent ice quality
- Variable-speed magnetic DC pump motor
- Smart water flow control helps prevent chipped or cloudy cubes
- Automated cleaning with wash auto-restart
- Water circuit and condenser cleaning notifications
- Dedicated stand-by and wash controls
- Adjustable ice cube dimple size
- Food-grade stainless steel AISI 430 internal components
- Premium foamed insulation
- Removable water tank and DC pump for easier servicing
- Natural R290 refrigerant
- Air-cooled refrigeration system
- 220-240V single phase
- 10A plug
- Storage bin sold separately
Designed to Expand IM-240DPE-28 Ice Production
The IM-240XPE-28 is specifically designed as an extension cuber for the Hoshizaki IM-240DPE-28. Its modular and stackable configuration allows commercial operations to increase ice production while making efficient use of available floor space.
This makes it particularly suitable for growing restaurants, hotels, bars, clubs and other high-volume hospitality businesses that require additional ice production without unnecessarily increasing their equipment footprint.
Premium 28mm Hoshizaki Cube Ice
The IM-240XPE-28 produces Hoshizaki's renowned 28mm individual cube ice. The Closed Cell System forms each cube individually, producing hard, clear and slowly melting ice suitable for professional beverage service and other commercial applications.
Smart water flow technology adjusts throughout the ice-making process to help prevent chipped or cloudy cubes, supporting consistent ice quality batch after batch.
High-Volume Ice Production
Production capacity varies according to ambient air and incoming water temperatures:
| 10°C Air / 10°C Water | Approx. 195kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 180kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 160kg / 24 Hours |
Modular & Stackable Design
The modular and stackable configuration is designed for businesses requiring substantial ice production while optimising available space. The IM-240XPE-28 can be used as an extension to increase the production capacity of a compatible IM-240DPE-28 installation.
Important: The IM-240XPE-28 does not include an integrated ice storage bin. A compatible Hoshizaki storage bin is required and sold separately.
Compatible Storage Bins & Top Kits
| B-801SA | IMD Top Kit |
| B-1300 SS | No Top Kit |
Storage bins and applicable top kits are sold separately.
Automated Cleaning & Maintenance
The latest IM CUBE generation introduces automated cleaning with wash auto-restart, along with dedicated notifications for water circuit and condenser cleaning. These features help simplify routine maintenance and support reliable long-term commercial operation.
The removable water tank and DC pump provide easier access during servicing, while dedicated stand-by and wash controls simplify everyday operation.
Efficient Variable-Speed Pump Technology
A magnetic DC pump motor with variable speed intelligently adjusts water flow during different phases of the ice-making process. This helps optimise performance and reduce unnecessary energy and water consumption while maintaining consistent cube formation.
The machine also uses natural R290 refrigerant, premium foamed insulation and an improved water tank design to further support efficient operation.
Durable & Hygienic Construction
A closed water circuit helps protect the ice-making process against contamination, while food-grade stainless steel AISI 430 internal components provide durability for demanding commercial environments.
The exterior combines AISI 441 stainless steel with galvanised steel at the rear for a robust commercial finish.
Specifications
| Model | IM-240XPE-28 |
| Item Number | 91000175 |
| Configuration | Modular & Stackable Extension Ice Maker |
| Ice Type | 28mm Cube Ice |
| Production at 10°C Air / 10°C Water | Approx. 195kg / 24 Hours |
| Production at 21°C Air / 15°C Water | Approx. 180kg / 24 Hours |
| Production at 32°C Air / 21°C Water | Approx. 160kg / 24 Hours |
| Corresponding Bins & Top Kits | B-801SA (IMD) | B-1300 SS (No Top Kit) |
| Storage Bin | Sold Separately |
| Exterior | Stainless Steel AISI 441, Galvanized Steel (Rear) |
| Width | 1084mm |
| Depth | 700mm |
| Height | 500mm |
| Net Weight | 78kg |
| Packed Weight | 93kg |
| Cooling | Air Cooled |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 3.7A |
| Rated Motor | 3.7A |
| Starting Amperage | 27A |
| Electric Consumption | 845W |
| Refrigerant | R290 / 147g |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 2250W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Scoop |
| Package Dimensions | 1196(W) x 825(D) x 640(H)mm |
| GEM Number | AIM0021 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.67m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.32m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.29m³ / 24 Hours |
Ideal For
The Hoshizaki IM-240XPE-28 is ideal for high-volume restaurants, bars, hotels, clubs, entertainment venues, commercial kitchens and hospitality operations looking to expand the ice production capacity of an IM-240DPE-28 system while maintaining a space-efficient modular configuration.
Please Note: This product is an extension modular ice maker designed for compatible Hoshizaki configurations. Ice storage bin and any required top kit are sold separately.
