Key Features
• Nickel plated 28 mj open burners with FFD standard
• Burner, chargrill & hotplate combinations
• Available freestanding or as a benchtop model
• Modular Professional series design
• 24 month ‘Platinum Warranty’
• Easy to clean and service
Open Burners
• Nickel plated cast iron 28 mj dual-flame ring burners
• Flame failure device standard (pilots optional extra)
• Variable flame control valve with low flame setting
• Heavy duty cast iron trivets
• Pressed 0.7mm 304 stainless steel spillage bowls
Griddle/Hotplate
• 18 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 21mm thick mild steel griddle plate
• Top weld sealed hotplate sections

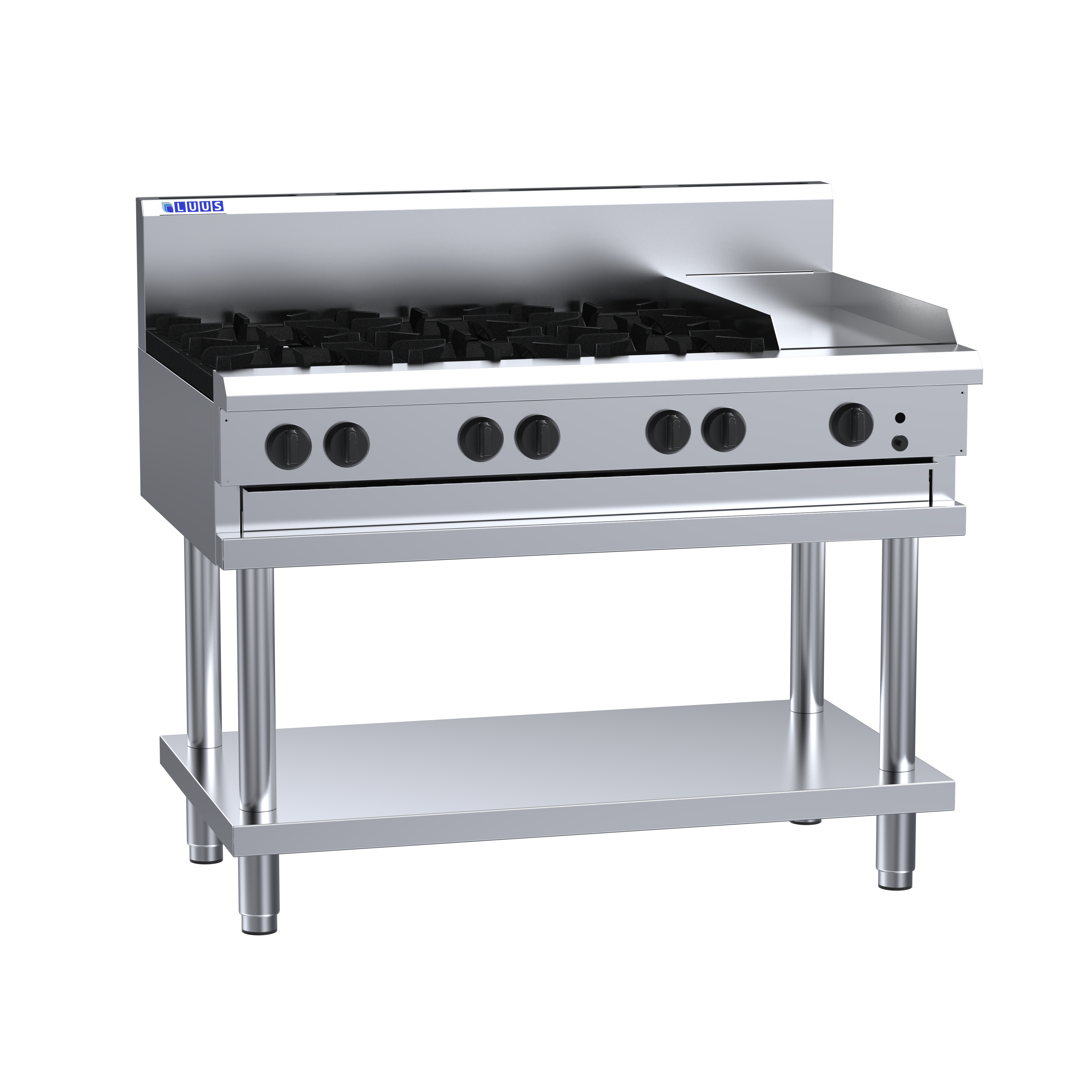

• CS-6B3P plate: 290mm x 540mm; 0.16m2 cooking area
• 2mm 304 stainless steel splash guards
Overall Construction
• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range
• Secondary catchment tray 0.9mm stainless steel
Connections
• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Benchtop model gas connection: 60mm from bottom
• Supplied with gas regulator (specify Nat or LP on order)
Cleaning & Servicing
• Removable burner hoods and spillage bowls
• Secondary undertray to catch any additonal waste
• Easy access to all parts & components from front
Options/Accessories
• Rear castors
• Pilots to open burners
• 300mm drop on plate (6mm mild steel) for open burners
• Ribbed or chrome finish on hotplates
• RH and LH side shields
• Ceramic rocks (specify when ordering)
• Benchtop mount (specify when ordering)
