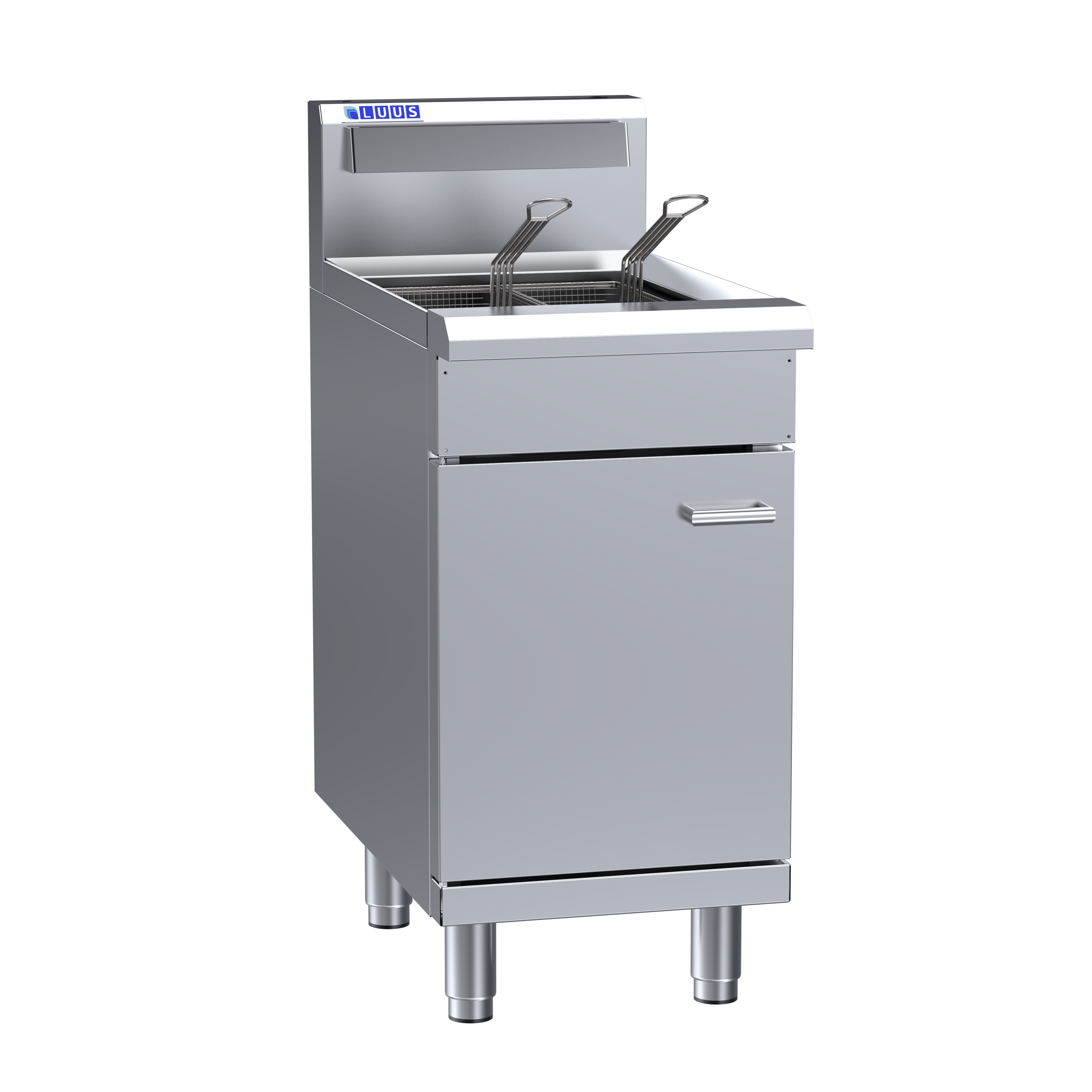

Luus FV-45 V-Pan 2 Basket Gas Fryer
After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote
- Type Gas Fryers
- Vendor Luus
- SKU / Model no FV-45
- Width(mm) 450
- Depth(mm) 800
- Height(mm) 1100
- Power 100mj
- Warranty 2 Year via Registration
- Weight 72kg
To check item availability for pickup, please email us the product code(s) along with your state. We'll confirm if the item(s) are available for pickup in your area sales@stellarequip.com.au
Features
• Easy to clean V-pan design with cool zone
• High performance burners and recovery rates
• Includes pilot, FFD, piezo and high temp cutout
• 30kg/h production rate
• 20 litre oil capacity
• Cabinet design with internal fryer controls
• Supplied with 2 fryer baskets
• Modular Professional series design
• 24 month ‘Platinum Warranty’
• Easy control/burner access for servicing
V-Pan Fryer
• 100MJ/h jet burner with pilot, FFD and piezo ignition
• Mechanically controlled thermostat
• Thermostat temperature range 100 - 200° C
• High temperature cut-out safety mechanism
• 1.5mm stainless steel tank
• 20 litre tank capacity
• Includes 2 stainless steel fryer baskets
• 0.9mm stainless steel perforated fish/base plate
• Tank drainage valve at bottom front of unit
Overall Construction
• Heavy duty construction
• Constructed 0.9mm stainless steel door
• High density Fiberfrax Durablanket insulation around tank
• Welded 1.2mm stainless steel front hob
• Front and side panels 0.9mm stainless steel
• Splashback 1.2 mm stainless steel
• Includes stainless steel legs with 55mm adjustable range
Connections
• Gas 3/4” BSP male
• Gas 225mm from right, 50mm from rear, 210mm from floor
• In-built gas regulator (specify Nat or LP on order)
• Drain 1 1/4” BSP male
• Drain 225mm from left, 70mm from front, 385mm floor
Cleaning & Servicing
• Easy access to all parts & components from front
• V-pan easy-to-clean design
• Rear basket support bar
• Removable baskets and inserts
Options/Accessories
• Additional fryer baskets
• Joining caps
• RH and LH side shields
• Rear castors
