Hoshizaki IM-30CPE-28 28kg Self-Contained Cube Ice Maker – 28mm
After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote
Hoshizaki IM-30CPE-28 28kg Self-Contained Cube Ice Maker – 28mm

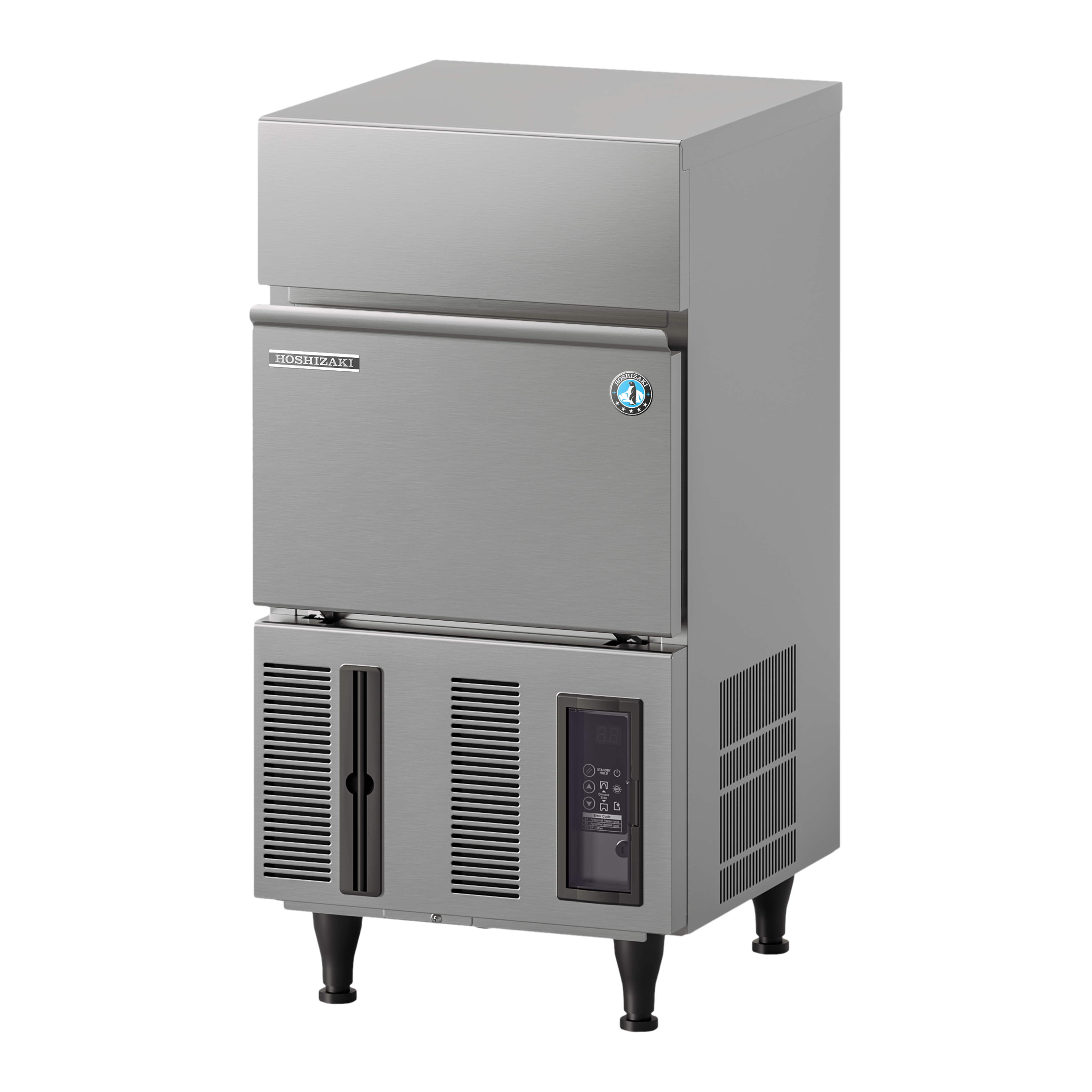

The Hoshizaki IM-30CPE-28 Cube Ice Maker is a compact, self-contained commercial ice machine designed to produce Hoshizaki's renowned 28mm hard, clear and slow-melting cube ice. Producing approximately 28kg of ice per 24 hours at 21°C air / 15°C water conditions, it is an excellent choice for cafés, bars, restaurants, hotels and other hospitality businesses requiring premium-quality cube ice without a large equipment footprint.
Part of Hoshizaki's latest IM CUBE generation, the IM-30CPE-28 introduces advanced features including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
The closed water circuit and individual cube-forming system help protect the ice-making process against contamination while producing consistently clear and uniform cubes. Smart water flow adjustment throughout the production cycle helps prevent chipped or cloudy ice, while the variable-speed DC pump improves operating efficiency.
With a compact 398mm-wide footprint, approximately 11.5kg maximum ice storage capacity and a standard 220-240V 10A plug, the IM-30CPE-28 provides an efficient all-in-one ice production and storage solution for commercial environments where space is at a premium.
Key Features
- Self-contained commercial cube ice maker
- Produces approximately 28kg of ice per 24 hours at 21°C air / 15°C water conditions
- Up to approximately 31kg production per 24 hours at 10°C air / 10°C water conditions
- Produces premium 28mm Hoshizaki cube ice
- Hard, clear and slow-melting ice cubes
- Approx. 11.5kg maximum ice storage capacity
- Compact 398mm-wide footprint
- Closed water circuit helps protect against contamination
- Closed-cell individual cube-forming system
- Variable-speed magnetic DC pump motor
- Smart water flow adjustment helps prevent chipped or cloudy ice
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash buttons
- Built-in maintenance reminders
- Removable water tank and DC pump for easier servicing
- Food-grade stainless steel internal components
- High-grade foamed insulation
- R290 natural refrigerant
- Air-cooled refrigeration system
- 220-240V single phase
- 10A plug
- Installation kit, legs and ice scoop included
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 31kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 28kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 22kg / 24 Hours |
Specifications
| Model | IM-30CPE-28 |
| Item Number | 91000154 |
| Ice Type | 28mm Cube Ice |
| Rated Production Capacity | Approx. 28kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 31kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 11.5kg (Bin Control Setting Approx. 6kg) |
| Cooling | Air Cooled |
| Refrigerant | R290 / 65g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 398mm |
| Depth | 451mm |
| Height | 787mm |
| Net Weight | 36kg |
| Packed Weight | 41kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 1.5A |
| Starting Amperage | 8A |
| Electrical Consumption | 215W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 570W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Legs & Scoop |
| Package Dimensions | 505(W) x 575(D) x 862(H)mm |
| GEM Number | AIM0015 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.15m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.07m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.05m³ / 24 Hours |

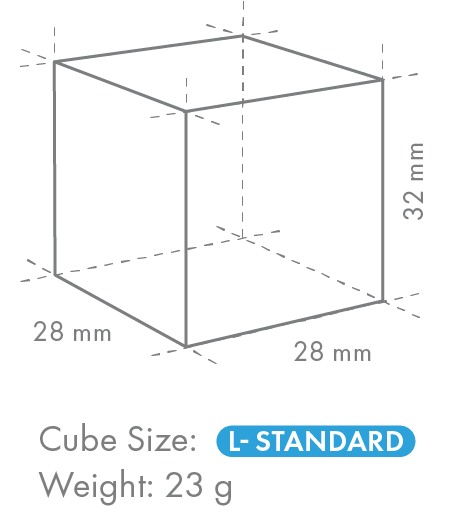

Premium 28mm Hoshizaki Cube Ice
The Hoshizaki IM-30CPE-28 produces individual 28mm cubes designed for excellent clarity, hardness and slow melting. Hoshizaki's closed-cell ice-making system forms cubes individually, providing consistent size and quality for professional beverage presentation.
Compact Commercial Ice Maker
At only 398mm wide, the IM-30CPE-28 is particularly well suited to venues where available floor space is limited. Its self-contained design combines ice production and storage in one compact machine while still providing up to approximately 31kg of ice production per day under favourable operating conditions.
Advanced Cleaning & Hygiene
Automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications and easily removable internal components help simplify ongoing maintenance. Combined with the closed water circuit and food-grade stainless steel components, the IM-30CPE-28 is designed to support high standards of hygiene in professional environments.
Ideal For
Ideal for cafés, restaurants, bars, pubs, clubs, hotels, cocktail bars and other hospitality businesses requiring a compact and reliable source of premium 28mm cube ice.
