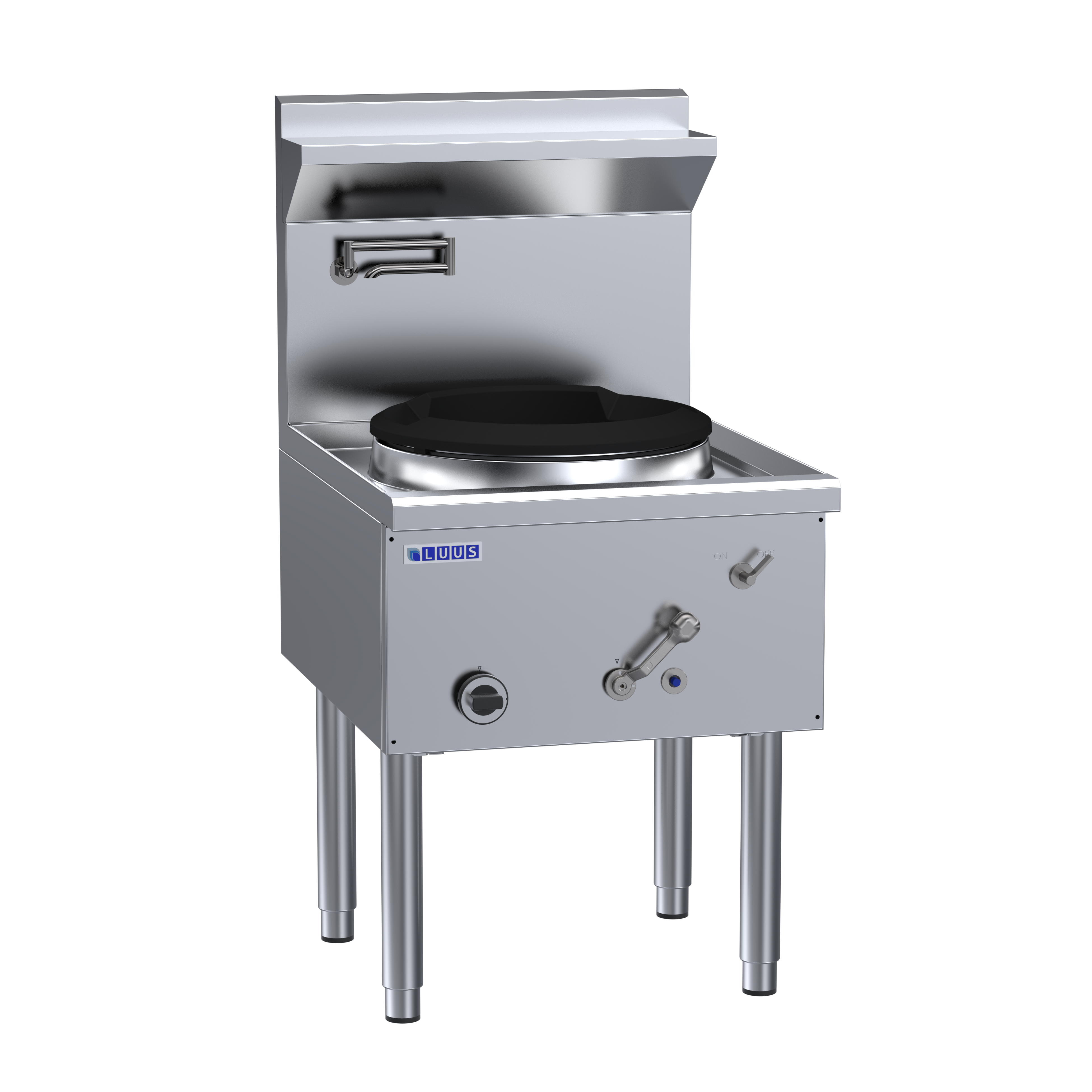

LUUS WZ-17C 1 Hole Compact 405mm Ring Waterless Wok
After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote
- Type Woks
- Vendor Luus
- SKU / Model no WZ-17C
- Width(mm) 650
- Depth(mm) 800
- Height(mm) 1300
- Power 90mj
- Warranty 2 Year via Registration
- Weight 123kg
To check item availability for pickup, please email us the product code(s) along with your state. We'll confirm if the item(s) are available for pickup in your area sales@stellarequip.com.au
Key Features
• Space saving 800mm total unit depth
• 405mm wok ring suitable for standard sized woks
• Duckbill burners ideal for variable heat control
• Uses up to 90% less water than Traditional Woks
• Air gap design eliminates need for water cooling
• Machine pressed deck to prevent grime catchment
• Concealed ring lip prevents water from entering air gap
• Removable, vented rear condiment shelf
• Modular design to suit multiple WZ wok units
• 24 month ‘Platinum Warranty’
• Easy to clean and service
Waterless Wok
• 90 mj 18 jet duckbill burners with pilot & FFD
• 405mm diameter large size cast-iron wok ring
• Air gap cooling system
• Quarter turn water control lever
• Front gutter design for easier cleaning
• Internal front heat shield panel
• Supplied with waste strainer
• Zinc-aluminium Alloy burner handles
Overall Construction
• Heavy duty construction
• Full skirt, enamelled cast-iron rings
• 1.5mm 304 stainless steel one-piece pressed deck
• 0.9mm 304 stainless steel condiment shelf
• Splashback and front cover 1.2 mm 304 stainless steel
• Integrated hob 1.5mm 304 stainless steel
• Side panels 1.2mm 304 stainless steel
• Undertrays 0.9mm stainless steel
• Stainless steel removable legs
• 30mm height adjustment range
Connections
• Gas 3/4” BSP Female
• Gas 61mm from right, 84mm from rear, 425m to floor
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 140mm from right, 81mm to rear, 408mm to floor
• Drain 1 3/4” BSP male, drain outlet 2”
• Drain 122mm from right, 83mm from rear, 590mm to floor
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• Knee lever timer tap
• Replace Duckbill burner with Chimney Dual Ring burner (110mj)
• Replace Standard Duckbill burner with High Output 28 inj
Duckbill burner (145MJ)
• 250mm and 500mm wide clip on shelves (front)
• Wok Holder
• Clip On Sauce Holder
• Injector Cleaning Tool
• Joining caps & strips
• RH and LH side shields
• Rear castors
