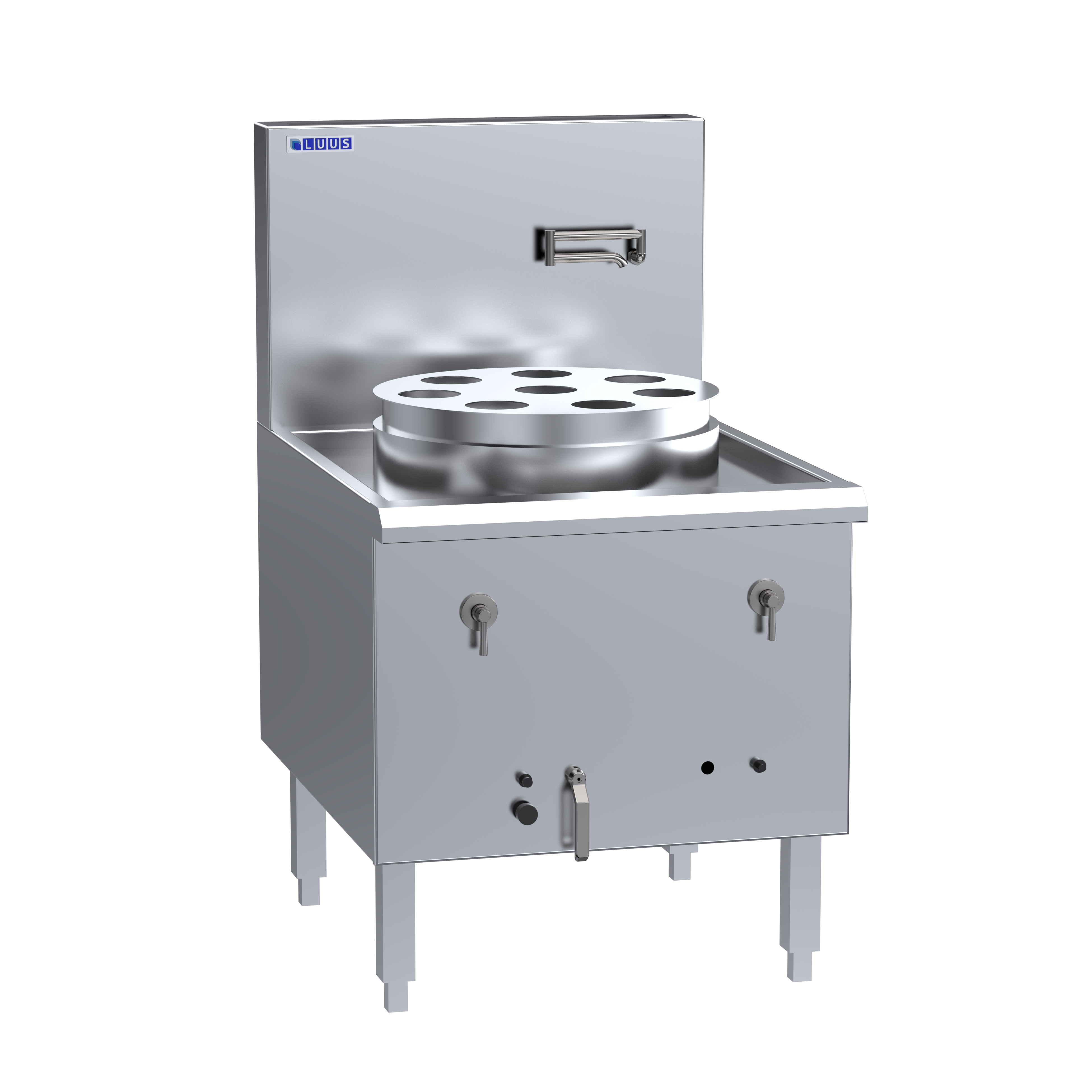

LUUS YC-1 1 Burner Yum Cha Steamer
After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote
- Type Food Steamers
- Vendor Luus
- SKU / Model no YC-1
- Width(mm) 750
- Depth(mm) 950
- Height(mm) 1300
- Power 115mj
- Warranty 2 Year via Registration
- Weight 112kg
To check item availability for pickup, please email us the product code(s) along with your state. We'll confirm if the item(s) are available for pickup in your area sales@stellarequip.com.au
Key Features
• Powerful Mongolian burner for maximum steam output
• 7 hole steamer plate suitable for bamboo baskets
• Water cooling system to preserve unit longevity
• Cast iron ring with Fiberfrax insulation
• Durable Zinc-aluminum Alloy burner handle
• Laundry arm controlled by quarter turn lever
• 304 grade high quality stainless steel panels
• 24 month ‘Platinum Warranty’
• Easy to clean and service
Steamer
• 115mj 32 jet mongolian burner with piezo, pilot & FFD
• Water deck cooling system
• 1.5mm 304 stainless steel 7 hole steamer plate
• 1.2mm 304 stainless steel pot & skirting
• Water deck cooling system
• Quarter turn water control lever
• Rear laundry arm with front panel controls
• Front gutter design for easier cleaning
• Zinc-aluminium Alloy burner handle
Overall Construction
• Welded steel frame construction
• Cast iron ring with Fiberfrax Durablanket insulation
• Double flanged watertight gasket seal
• Rear flue system to aid combustion
• 1.2mm 304 stainless steel deck, front cover & splashback
• 0.7mm 304 stainless steel side panels and undertrays
• 10mm ceramic insulation board under top deck
• 25mm Fibertex Rockwool insulation in fron & side panels
• 38mm stainless steel tube legs with adjustable feet
Connections
• Gas 3/4” BSP male
• Gas 100mm from left, 50mm from rear, 300mm from floor
(regulator connected inside front cover)
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 100mm from right, 100 mm from rear, 200mm floor
• Drain 2” BSP male
• Drain 100mm from right, 130mm from front, 650mm floor
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• 4 piece 304 stainless steel steam rack set
• Joining caps & strips
• Rear castors
