Hoshizaki
SKU / Model no: 91000171

Hoshizaki IM-240APE-28 180kg Cube Ice Maker – Modular

$6,417.00 AUD + GST
$9,650.00 AUD + GST -34% $6,417.00 AUD + GST
SilverChef Logo
Rent, Try, Buy From $81.45 + GST Per Week
Apply Now →
Call Us for a Stellar Deal

Contact Us 0426 810 596

Last Price Guarantee
18+ Years Experience

Please let us know how we can assist you in the comments section. If you would like us to give you a call, kindly include your contact number.

Shipping Prices Tailored to you

    After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote

    Specifications
    • Type Ice Machines
    • Vendor Hoshizaki
    • SKU / Model no 91000171
    • Width(mm) 560
    • Depth(mm) 700
    • Height(mm) 880
    • Power 1 PHASE 220-240V 50Hz/ 10 AMP Plug
    • Warranty Two years
    • Weight 78kg
    • Spec Sheet Link
    • User Manual Link

    To check item availability for pickup, please email us the product code(s) along with your state. We'll confirm if the item(s) are available for pickup in your area sales@stellarequip.com.au

    Description Our Ordering Process

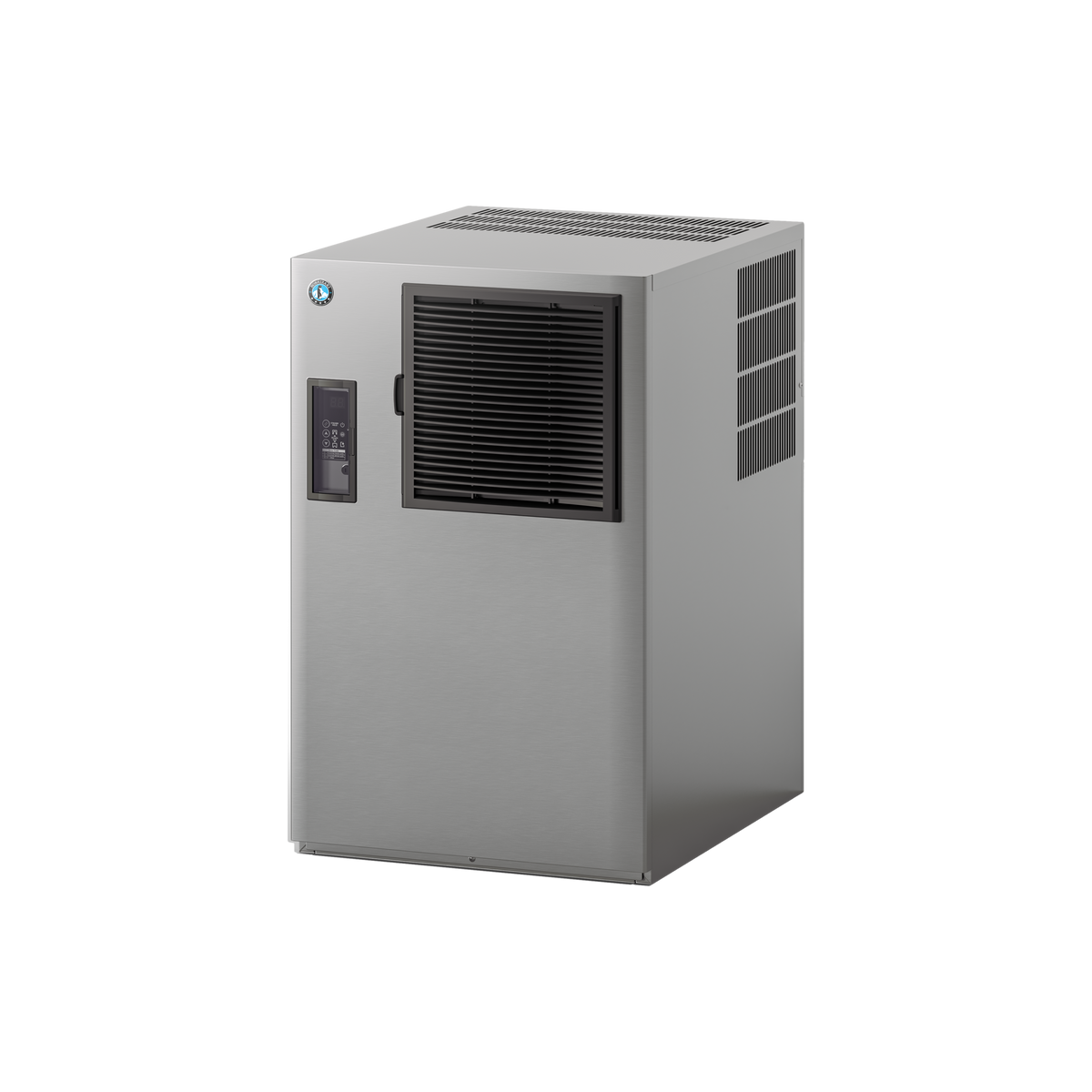

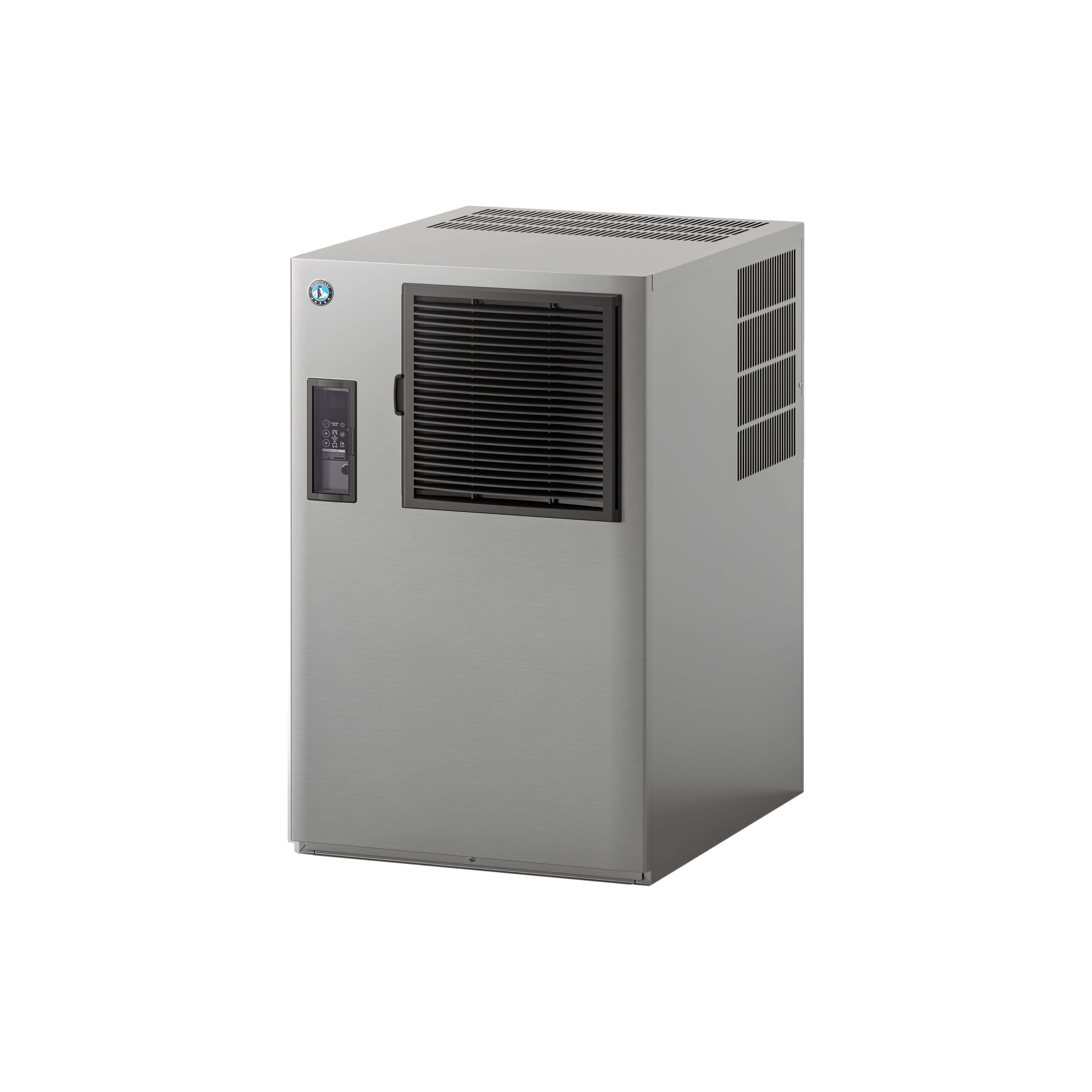

    Hoshizaki IM-240APE-28 180kg Cube Ice Maker – Modular

    The Hoshizaki IM-240APE-28 is a high-capacity modular commercial cube ice maker from the latest Hoshizaki IM CUBE range. Producing approximately 180kg of premium 28mm cube ice per 24 hours at 21°C air / 15°C water conditions, with production reaching approximately 195kg per day under optimal conditions, it is designed for demanding hospitality and foodservice operations requiring a reliable supply of quality ice.

    Unlike a self-contained ice maker, the modular IM-240APE-28 is designed to be installed on a compatible ice storage bin, which is sold separately. This provides greater flexibility when selecting storage capacity to suit the requirements of your venue.

    The latest IM CUBE generation combines Hoshizaki's proven ice-making technology with upgrades including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, a variable-speed magnetic DC pump motor, high-grade stainless steel components and dedicated standby and wash controls.

    Key Features

    • High-capacity modular commercial cube ice maker
    • Produces premium 28mm Hoshizaki cube ice
    • Approx. 180kg production per 24 hours at 21°C air / 15°C water
    • Up to approx. 195kg production per 24 hours at 10°C air / 10°C water
    • Modular design allows selection of a compatible storage bin
    • Ice storage bin sold separately
    • Closed Cell System forms individual, consistent ice cubes
    • Closed water circuit helps protect against contamination
    • Variable-speed magnetic DC pump motor
    • Smart water-flow control throughout the ice-making cycle
    • Designed to help prevent chipped or cloudy cubes
    • Automated cleaning with wash auto-restart
    • Water circuit cleaning notifications
    • Condenser cleaning notifications
    • Dedicated standby and wash controls
    • Adjustable ice cube dimple size
    • Removable water tank and DC pump for easier maintenance
    • Food-grade AISI 430 stainless steel internal components
    • Premium foamed insulation
    • Eco-friendly R290 natural refrigerant
    • Air-cooled refrigeration system
    • 220-240V single phase operation
    • 10A plug
    • Ice chute, installation kit and scoop included

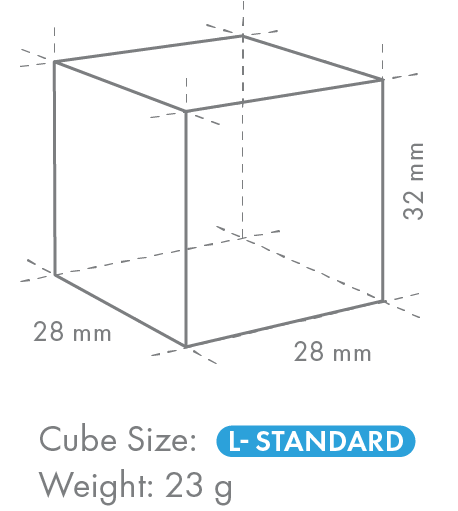

    Premium 28mm Hoshizaki Cube Ice

    The IM-240APE-28 produces Hoshizaki's renowned hard and slow-melting 28mm cube ice. Smart variable-speed pump technology adjusts water flow throughout the production cycle to help prevent chipped or cloudy cubes, while the Closed Cell System forms each cube individually for consistent clarity and quality.

    High-Volume Ice Production

    Designed for demanding commercial applications, the IM-240APE-28 produces approximately 180kg of ice every 24 hours under standard 21°C air / 15°C water conditions. Under cooler 10°C air / 10°C water conditions, production can reach approximately 195kg per 24 hours.

    10°C Air / 10°C Water Approx. 195kg / 24 Hours
    21°C Air / 15°C Water Approx. 180kg / 24 Hours
    32°C Air / 21°C Water Approx. 160kg / 24 Hours

    Modular Design – Storage Bin Sold Separately

    As a modular ice maker, the IM-240APE-28 requires a compatible Hoshizaki ice storage bin. The storage bin is not included and is sold separately, allowing the machine to be matched with different bin capacities depending on your daily ice requirements and available space.

    Compatible Hoshizaki bin configurations include:

    • B-301SA – No top kit required
    • B-501SA – Requires 8D top kit
    • B-801SA – Requires 8D + 18D top kits
    • Double Stack Configuration: B-801SA with 4DM

    Automatic Cleaning & Maintenance

    Automated cleaning with wash auto-restart helps simplify routine maintenance, while dedicated notifications advise when the water circuit and condenser require cleaning. The water tank and DC pump can also be removed for easier servicing and cleaning.

    Efficient & Sustainable Operation

    The IM-240APE-28 uses environmentally friendly R290 natural refrigerant together with a variable-speed magnetic DC pump motor. Smart pump operation, standby functionality, premium foamed insulation and an improved water tank design are engineered to reduce unnecessary energy and water consumption while maintaining reliable commercial performance.

    Durable & Hygienic Construction

    A closed water circuit helps protect the ice-making process against contamination, while food-grade AISI 430 stainless steel internal components are designed for durability and hygiene. Reduced-wear technology and intelligent motor control also support dependable long-term operation in demanding commercial environments.

    Specifications

    Model IM-240APE-28
    Item Number 91000171
    Configuration Modular Cube Ice Maker
    Ice Type 28mm Cube Ice
    Rated Production Capacity Approx. 180kg / 24 Hours at 21°C Air / 15°C Water
    Maximum Production Approx. 195kg / 24 Hours at 10°C Air / 10°C Water
    Storage Bin Sold Separately
    Compatible Bins / Top Kits B-301SA (No Top Kit) / B-501SA (8D) / B-801SA (8D + 18D) / Double Stack B-801SA (4DM)
    Exterior AISI 441 Stainless Steel / Galvanised Steel Rear
    Cooling Air Cooled
    Refrigerant R290 / 147g
    Width 560mm
    Depth 700mm
    Height 880mm
    Net Weight 78kg
    Packed Weight 89kg
    Electrical Supply 220-240V / 50Hz / Single Phase
    Plug 10A
    Running Amperage 3.8A
    Starting Amperage 27A
    Electrical Consumption 850W
    Ambient Operating Temperature 1°C to 40°C
    Water Supply Temperature 5°C to 35°C
    Water Supply Pressure 0.07-0.8 MPa (0.7-8 bar)
    Voltage Range Rated Voltage ±6%
    Electrical Circuit Breaker Protection 5A
    Heat Rejection 2510W at 32°C Air / 21°C Water
    Accessories Included Ice Chute, Installation Kit & Scoop
    Package Dimensions 665(W) x 820(D) x 1054(H)mm
    GEM Number AIM0020

    Water Consumption

    10°C Air / 10°C Water Approx. 0.67m³ / 24 Hours
    21°C Air / 15°C Water Approx. 0.32m³ / 24 Hours
    32°C Air / 21°C Water Approx. 0.29m³ / 24 Hours

    Ideal For

    The Hoshizaki IM-240APE-28 is ideal for restaurants, bars, pubs, hotels, clubs, resorts, cafés, commercial kitchens, catering operations and other high-volume hospitality venues requiring dependable production of premium 28mm cube ice.

    Please note: This is a modular ice maker head. An ice storage bin is required and sold separately.
