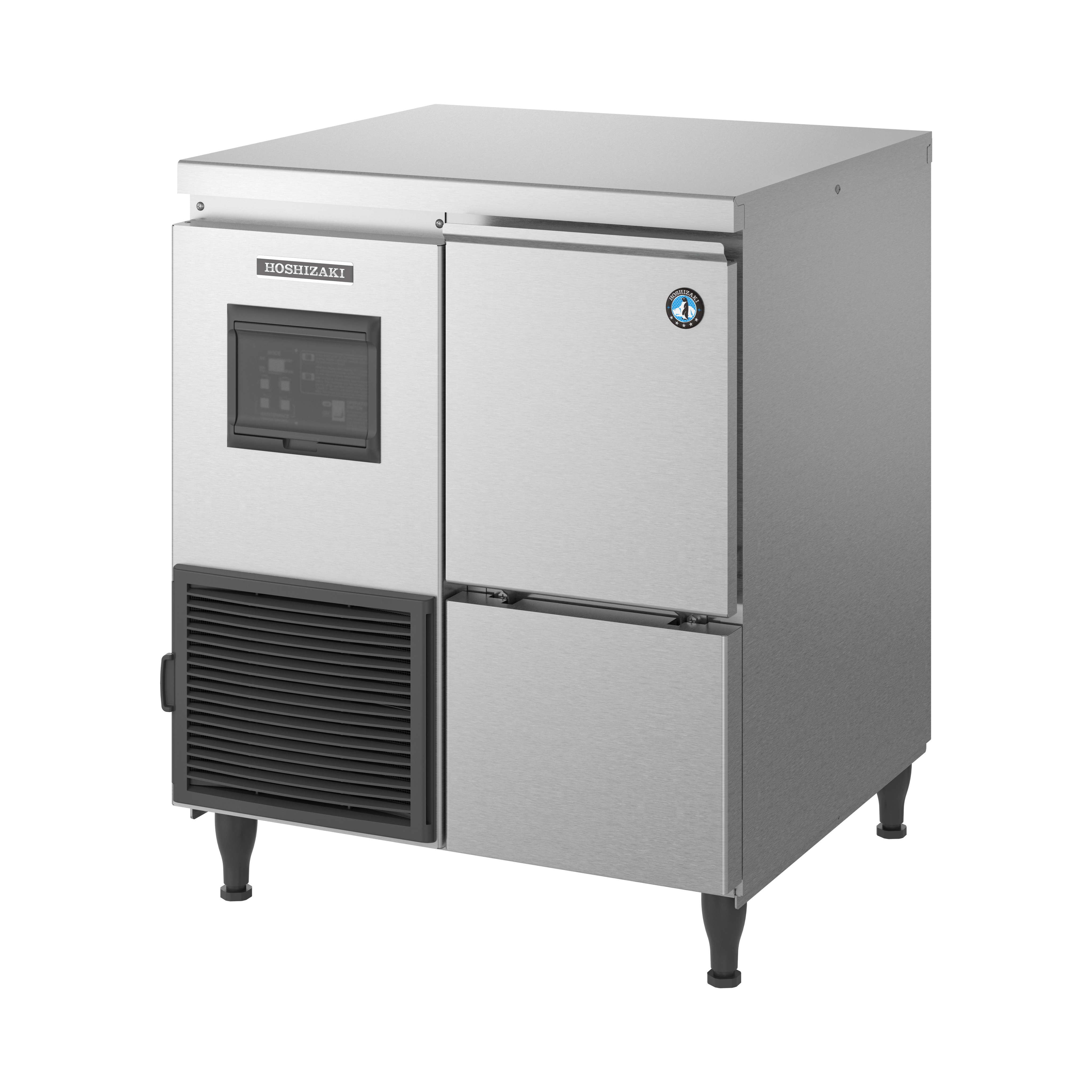

Hoshizaki FM-120KE-HC 105kg Self-Contained Flake Ice Maker
The Hoshizaki FM-120KE-HC is a compact, self-contained commercial flake ice maker producing approximately 105kg of premium flake ice every 24 hours at 21°C air / 15°C water conditions, with production reaching approximately 125kg per day under optimal conditions.
Hoshizaki flake ice has a light, soft texture that provides fast and even cooling. It creates a consistent temperature environment while helping prevent freezer burn, making it ideal for seafood displays, fish markets, supermarkets, fresh food counters, food preparation and commercial hospitality applications.
With a compact 640mm wide footprint and an integrated ice storage bin, the FM-120KE-HC provides an efficient all-in-one solution for businesses requiring reliable flake ice production without a separate storage bin.
Key Features
- Self-contained commercial flake ice maker
- Produces approx. 105kg of flake ice per 24 hours at 21°C air / 15°C water
- Up to approx. 125kg per 24 hours at 10°C air / 10°C water
- Approx. 26kg maximum ice storage capacity
- Approx. 21kg bin control setting
- Light, soft flake ice for fast and even cooling
- Ideal for seafood, fish and fresh food displays
- Excellent for preparing, layering and presenting chilled foods
- Closed water circuit helps protect the ice-making process from contamination
- Automated water circuit rinse cycle helps prevent mineral build-up
- Worktime-based component replacement monitoring
- Carbon graphite bushings allow grease-free operation
- Reduced number of moving components helps minimise wear and tear
- Water-lubricated bearings help prevent calcification and bacterial contamination
- Natural R290 refrigerant
- Durable stainless steel exterior
- Compact 640(W) x 600(D) x 800(H)mm design
- Air-cooled refrigeration system
- 220-240V single phase
- 10A plug
- Installation kit and scoop included
Premium Hoshizaki Flake Ice
The FM-120KE-HC produces high-quality commercial flake ice with a light, soft texture that provides excellent contact with the product being chilled. The ice cools quickly and evenly and can be easily spread, shaped and layered around fresh food.
This makes Hoshizaki flake ice particularly suited to applications where both temperature control and product presentation are important.
Ideal for Seafood & Fresh Food Displays
The soft, mouldable nature of flake ice makes it ideal for creating attractive chilled displays. It can be layered around fresh fish, seafood, oysters and other temperature-sensitive foods, providing effective cooling while helping maintain an appealing presentation.
Flake ice is particularly useful for fish markets, seafood retailers, supermarkets and fresh food counters where ice needs to be easily shaped and replenished throughout service.
High-Volume Ice Production
Ice production varies according to ambient air and incoming water temperatures:
| 10°C Air / 10°C Water | Approx. 125kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 105kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 82kg / 24 Hours |
Integrated 26kg Ice Storage
As a self-contained flake ice machine, the FM-120KE-HC combines ice production and storage within a single unit. The integrated storage bin provides approximately 26kg maximum storage capacity, with a bin control setting of approximately 21kg.
This eliminates the need to purchase a separate ice storage bin and provides a convenient all-in-one solution for commercial operations.
Hygienic Closed Water Circuit
The closed water circuit helps protect the ice-making process against contamination. Hoshizaki's automated water circuit rinse cycle also helps prevent mineral build-up within the hydraulic system while supporting high hygiene standards and easier ongoing maintenance.
Designed for Long-Term Commercial Operation
The FM-120KE-HC uses carbon graphite bushings instead of conventional ball bearings, allowing grease-free operation. Its design reduces moving components to help minimise wear and tear, while water-lubricated bearings assist in preventing calcification and bacterial contamination.
A worktime-based component replacement system can be monitored through the machine's control display, helping operators plan preventative maintenance and support dependable long-term operation.
Compact 640mm Wide Design
Measuring just 640mm wide x 600mm deep x 800mm high, the FM-120KE-HC delivers substantial commercial ice production from a compact footprint. This makes it particularly suitable for kitchens, preparation areas and fresh food operations where available floor space is limited.
R290 Natural Refrigerant
The FM-120KE-HC uses R290 natural refrigerant, helping reduce environmental impact while supporting efficient commercial ice production.
Plug & Play Installation
The self-contained design provides a straightforward installation solution, combining the ice maker and storage bin into one compact unit. The machine operates from a 220-240V single-phase 10A power supply and includes an installation kit and scoop.
Specifications
| Model | FM-120KE-HC |
| Item Number | 91000179 |
| Configuration | Self-Contained Flake Ice Maker |
| Ice Type | Flake Ice |
| Production at 10°C Air / 10°C Water | Approx. 125kg / 24 Hours |
| Production at 21°C Air / 15°C Water | Approx. 105kg / 24 Hours |
| Production at 32°C Air / 21°C Water | Approx. 82kg / 24 Hours |
| Maximum Storage Capacity | Approx. 26kg |
| Bin Control Setting | Approx. 21kg |
| Exterior | Stainless Steel AISI 441, Galvanized Steel (Rear) |
| Width | 640mm |
| Depth | 600mm |
| Height | 800mm |
| Net Weight | 66kg |
| Packed Weight | 76kg |
| Cooling | Air Cooled |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 2.0A |
| Starting Amperage | 8.8A |
| Electric Consumption | 355W |
| Refrigerant | R290 / 100g |
| Ambient Operating Temperature | 5°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.05-0.8 MPa |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 6A |
| Heat Rejection | 655W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Scoop |
| Package Dimensions | 746(W) x 706(D) x 887(H)mm |
| GEM Number | AIM0023 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.125m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.105m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.082m³ / 24 Hours |
Ideal For
The Hoshizaki FM-120KE-HC is an excellent choice for fish markets, seafood retailers, supermarkets, fresh food displays, restaurants, hotels and commercial kitchens requiring dependable flake ice production from a compact self-contained machine.
