Hoshizaki FM-120KE-HCN 96kg Self-Contained Nugget Ice Maker

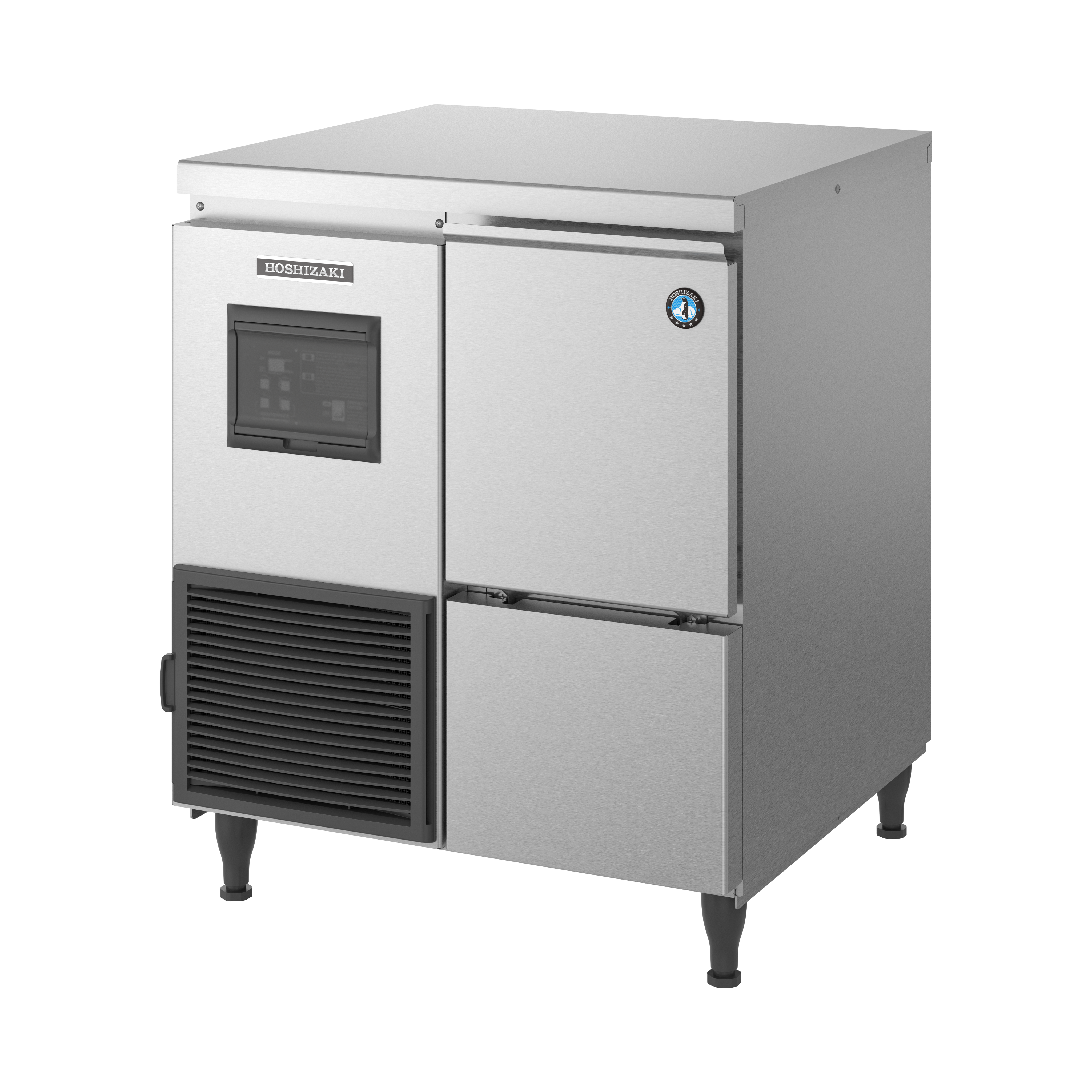

The Hoshizaki FM-120KE-HCN is a high-performance self-contained commercial nugget ice maker producing approximately 96kg of premium nugget ice every 24 hours at 21°C air / 15°C water conditions, with production reaching approximately 110kg per day under optimal conditions.
Hoshizaki nugget ice has a dry, hard texture that delivers effective cooling with controlled dilution. It is particularly well suited to cocktails, bars, restaurants, hotels and high-volume beverage service, including spirit-forward drinks such as Mojitos and Tiki-style cocktails where temperature, dilution and presentation are important.
With an integrated ice storage bin providing approximately 32kg maximum storage capacity, the FM-120KE-HCN combines ice production and storage into one compact commercial unit.
Key Features
- Self-contained commercial nugget ice maker
- Produces approx. 96kg of nugget ice per 24 hours at 21°C air / 15°C water
- Up to approx. 110kg production per 24 hours at 10°C air / 10°C water
- Approx. 32kg maximum integrated ice storage capacity
- Approx. 27kg bin control setting
- Dry, hard nugget ice with excellent cooling performance
- Ideal for cocktails, bars and commercial beverage service
- Natural R290 refrigerant
- Closed water circuit helps protect against contamination
- Automated water circuit rinse cycle
- Worktime-based component replacement monitoring
- Carbon graphite bushings allow grease-free operation
- Reduced number of moving parts helps minimise wear and tear
- Water-lubricated bearings help reduce calcification and bacterial contamination
- Durable stainless steel exterior
- Compact 640mm wide footprint
- Air-cooled refrigeration system
- 220-240V single phase
- 10A plug
- Installation kit and scoop included
Premium Hoshizaki Nugget Ice
The FM-120KE-HCN produces premium commercial nugget ice with a dry, hard texture designed to provide efficient cooling while maintaining an appropriate level of dilution.
This makes it an excellent choice for cocktail bars, restaurants, pubs, hotels and hospitality venues. Nugget ice is especially well suited to Mojitos, Tiki-style cocktails and other spirit-forward drinks where consistent cooling and presentation are important.
High-Volume Ice Production
Ice production varies according to ambient air and incoming water temperatures:
| 10°C Air / 10°C Water | Approx. 110kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 96kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 75kg / 24 Hours |
Integrated 32kg Ice Storage
As a self-contained nugget ice machine, the FM-120KE-HCN incorporates its own storage bin and does not require a separate external ice storage bin.
The integrated bin provides approximately 32kg maximum levelled storage capacity, with a bin control setting of approximately 27kg, creating a convenient all-in-one solution for commercial hospitality applications.
Hygienic Closed Water Circuit
The closed water circuit helps protect the ice-making process against contamination. Hoshizaki's automated water circuit rinse cycle also helps prevent mineral build-up within the hydraulic system while supporting consistent hygiene and easier ongoing maintenance.
Designed for Long-Term Commercial Operation
The FM-120KE-HCN uses carbon graphite bushings instead of traditional ball bearings, enabling grease-free operation. A reduced number of moving parts helps minimise wear and tear, while water-lubricated bearings assist in preventing calcification and bacterial contamination.
A worktime-based component replacement system can be monitored through the machine's control display, helping operators manage preventative maintenance and support dependable long-term operation.
R290 Natural Refrigerant
The FM-120KE-HCN uses environmentally friendly R290 natural refrigerant, supporting efficient commercial operation while optimising ice production performance.
Compact Self-Contained Design
At only 640mm wide, the FM-120KE-HCN delivers substantial nugget ice production and integrated storage within a relatively compact footprint. Its plug-and-play design also helps simplify installation and commissioning.
Specifications
| Model | FM-120KE-HCN |
| Item Number | 91000182 |
| Configuration | Self-Contained Nugget Ice Maker |
| Ice Type | Nugget Ice |
| Production at 10°C Air / 10°C Water | Approx. 110kg / 24 Hours |
| Production at 21°C Air / 15°C Water | Approx. 96kg / 24 Hours |
| Production at 32°C Air / 21°C Water | Approx. 75kg / 24 Hours |
| Maximum Storage Capacity | Approx. 32kg Levelled |
| Bin Control Setting | Approx. 27kg |
| Exterior | Stainless Steel AISI 441, Galvanized Steel (Rear) |
| Cooling | Air Cooled |
| Width | 640mm |
| Depth | 600mm |
| Height | 800mm (798-833mm) |
| Net Weight | 66kg |
| Packed Weight | 76kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 2.0A |
| Starting Amperage | 8.8A |
| Electric Consumption | 355W |
| Refrigerant | R290 / 100g |
| Ambient Operating Temperature | 5°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.05-0.8 MPa |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 6A |
| Heat Rejection | 655W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Scoop |
| Package Dimensions | 746(W) x 706(D) x 887(H)mm |
| GEM Number | AIM0025 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.110m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.096m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.075m³ / 24 Hours |
Ideal For
The Hoshizaki FM-120KE-HCN is ideal for cocktail bars, restaurants, pubs, clubs, hotels, resorts and other commercial hospitality operations requiring reliable, high-volume nugget ice production with integrated storage.
