Hoshizaki
SKU / Model no: 91000184

Hoshizaki FM-480AKE-HCN-SB 330kg Modular Nugget Ice Maker

$8,551.00 AUD + GST
$12,860.00 AUD + GST -34% $8,551.00 AUD + GST
SilverChef Logo
Rent, Try, Buy From $108.53 + GST Per Week
Apply Now →
Call Us for a Stellar Deal

Contact Us 0426 810 596

Last Price Guarantee
18+ Years Experience

Please let us know how we can assist you in the comments section. If you would like us to give you a call, kindly include your contact number.

Shipping Prices Tailored to you

    After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote

    Specifications
    • Type Ice Machines
    • Vendor Hoshizaki
    • SKU / Model no 91000184
    • Width(mm) 560
    • Depth(mm) 700
    • Height(mm) 780
    • Power 1 PHASE 220-240V 50Hz/ 10 AMP Plug
    • Warranty Two years
    • Weight 92kg
    • Spec Sheet Link
    • User Manual Link

    To check item availability for pickup, please email us the product code(s) along with your state. We'll confirm if the item(s) are available for pickup in your area sales@stellarequip.com.au

    Description Our Ordering Process

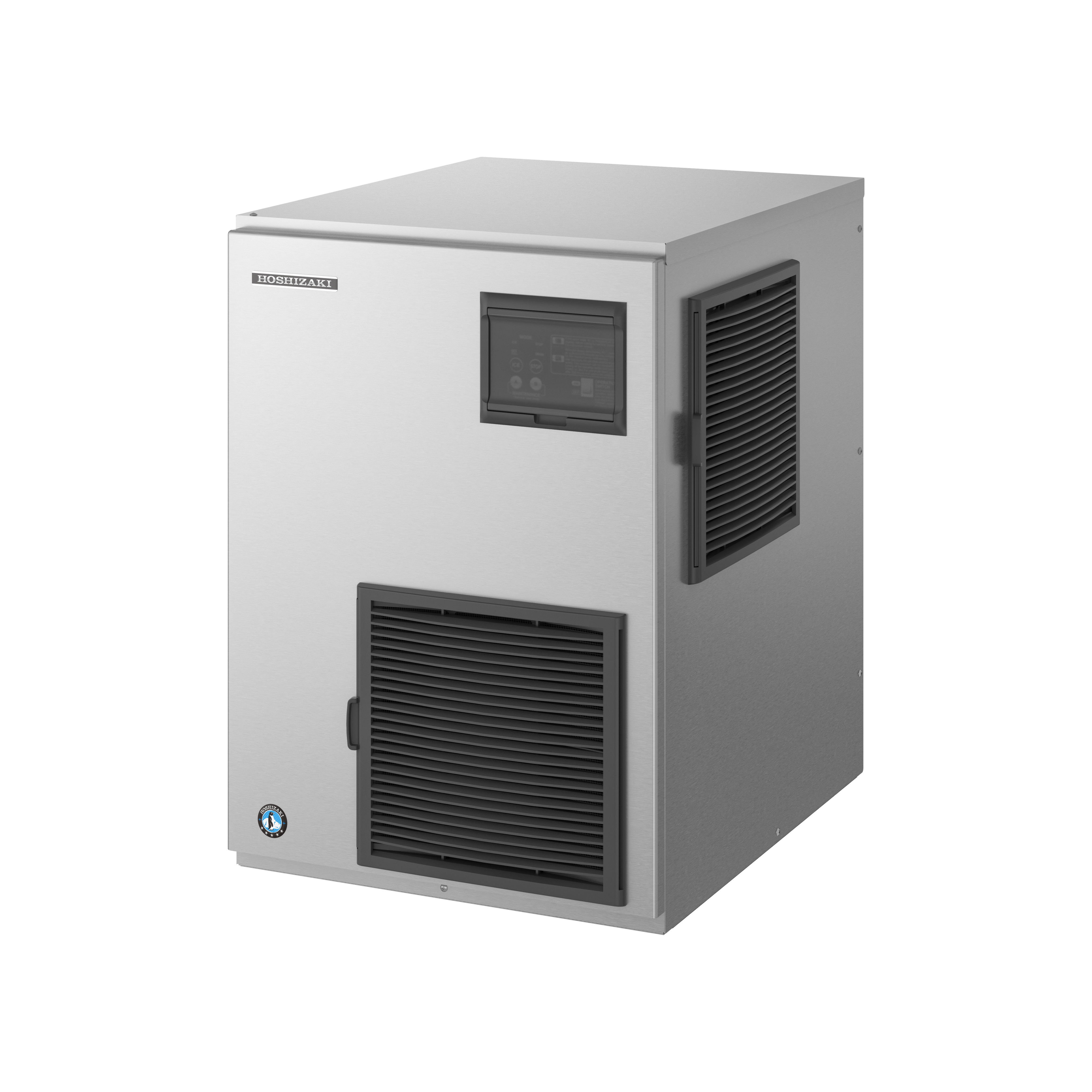

    Hoshizaki FM-480AKE-HCN-SB 330kg Modular Nugget Ice Maker

    The Hoshizaki FM-480AKE-HCN-SB is a high-capacity modular commercial nugget ice maker designed to produce approximately 330kg of premium nugget ice every 24 hours at 21°C air / 15°C water conditions, with production reaching approximately 380kg per day under optimal conditions.

    Hoshizaki nugget ice has a dry, hard texture that provides efficient cooling with controlled dilution, making it an excellent choice for cocktails and beverage service. Its small, mouldable form also makes it highly versatile for seafood, oyster and fresh food displays where an attractive clear ice effect is preferred.

    As a modular ice machine, the FM-480AKE-HCN-SB is designed to be paired with a compatible Hoshizaki ice storage bin, allowing businesses to select a storage configuration that suits their ice demand and available space.

    Key Features

    • High-capacity modular commercial nugget ice maker
    • Approx. 330kg production per 24 hours at 21°C air / 15°C water
    • Up to approx. 380kg production per 24 hours at 10°C air / 10°C water
    • Dry, hard nugget ice with excellent cooling performance
    • Ideal for cocktails and beverage service
    • Excellent alternative to traditional flake ice
    • Small nugget ice can be formed and shaped around displayed products
    • Ideal for seafood, oysters and fresh food displays
    • Modular configuration for flexible ice storage capacity
    • Compatible with multiple Hoshizaki storage bins
    • Stackable configuration available with compatible bin and top kit
    • Air-cooled refrigeration system
    • Eco-friendly R290 natural refrigerant
    • Stainless steel side and rear construction
    • 220-240V single phase
    • 10A plug
    • Installation kit included

    Premium Hoshizaki Nugget Ice

    The FM-480AKE-HCN-SB produces compact nugget ice with a dry and firm texture. Its cooling characteristics make it particularly suitable for drinks where maintaining temperature without excessive dilution is important.

    For cocktail bars, pubs and restaurants, nugget ice works particularly well with Mojitos, Tiki-style cocktails and spirit-forward drinks, providing effective cooling while adding an attractive presentation.

    Ideal for Seafood & Fresh Food Displays

    Beyond beverage service, Hoshizaki nugget ice is an excellent choice for seafood and fresh food presentation. The small pieces can be formed around products, making it suitable for displaying fish, seafood and oysters while creating an attractive clear ice effect.

    Its ability to form into shape also makes nugget ice a practical alternative to conventional flake ice for many commercial food display applications.

    High-Volume Ice Production

    Designed for demanding commercial environments, the FM-480AKE-HCN-SB produces approximately 330kg of nugget ice every 24 hours at 21°C air / 15°C water conditions.

    10°C Air / 10°C Water Approx. 380kg / 24 Hours
    21°C Air / 15°C Water Approx. 330kg / 24 Hours
    32°C Air / 21°C Water Approx. 270kg / 24 Hours

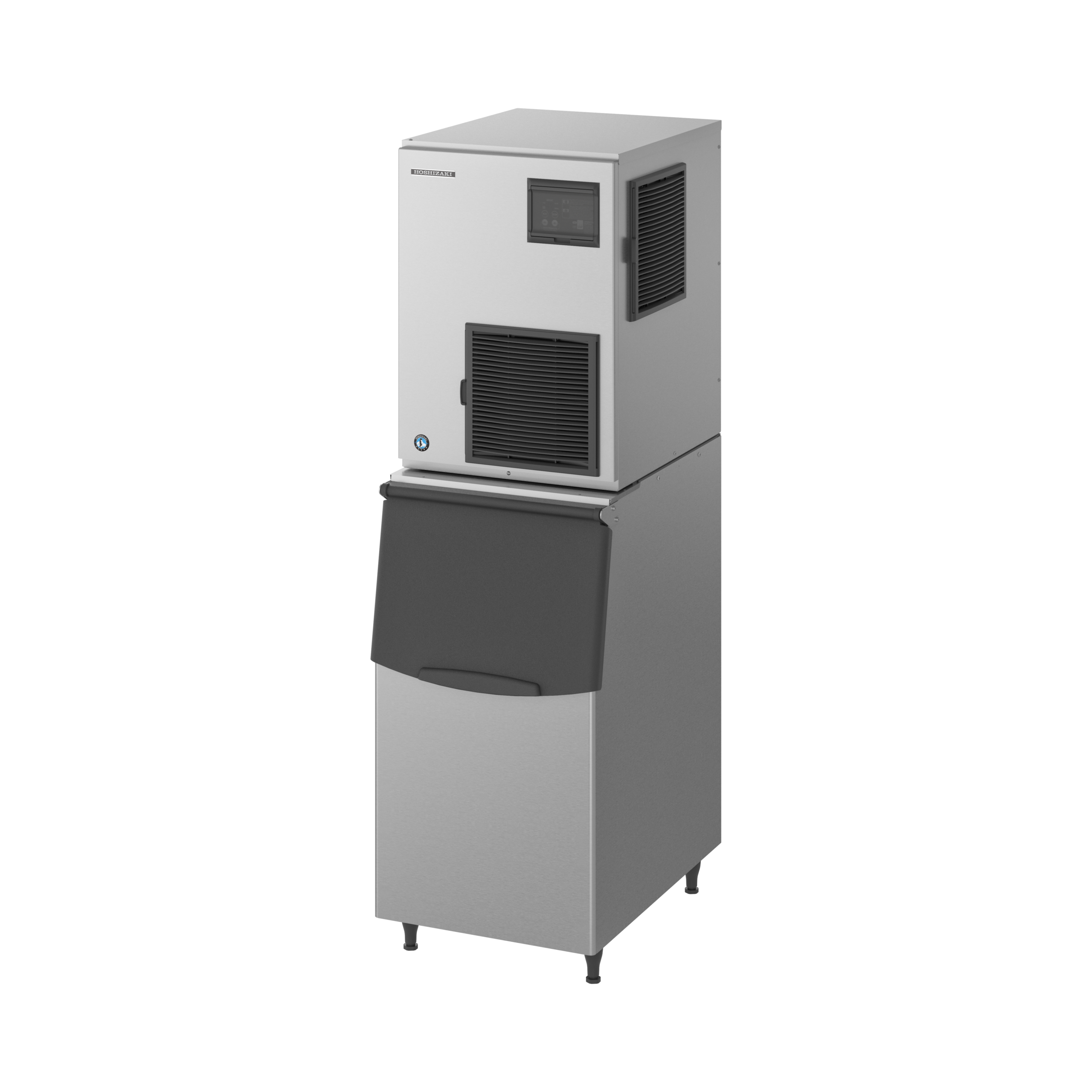

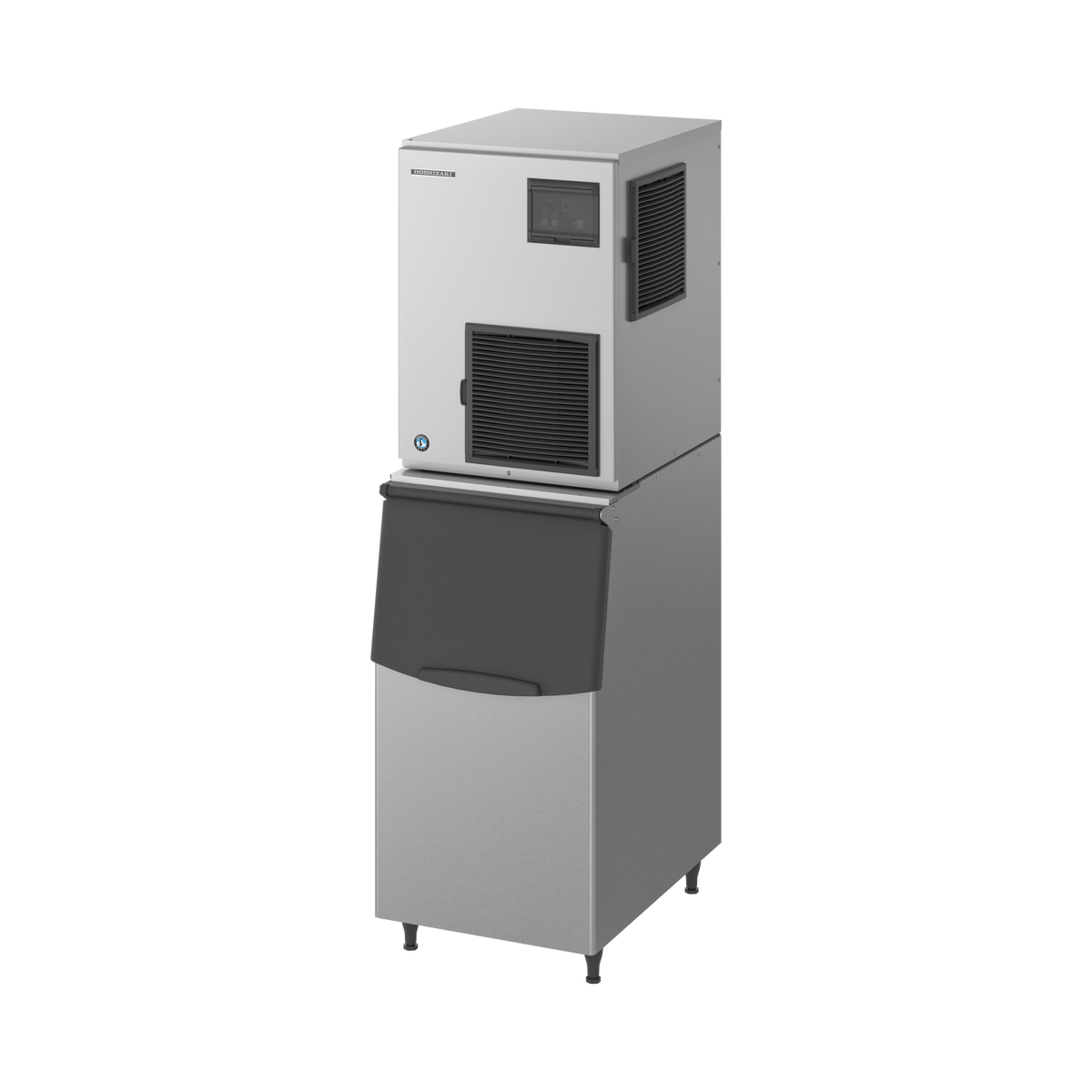

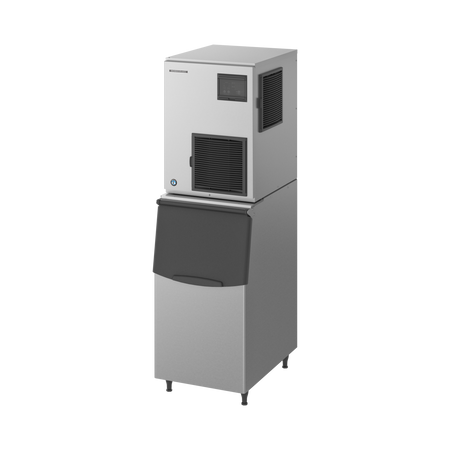

    Modular Ice Maker

    The Hoshizaki FM-480AKE-HCN-SB is a modular ice maker designed to be installed with a compatible ice storage bin. This allows businesses to configure the machine with a storage capacity suited to their operational requirements.

    Compatible Hoshizaki bin configurations include:

    • B-301SA – No top kit required
    • B-501SA – 8D top kit
    • B-801SA – 8D + 18D top kits
    • Double Stack: B-801SA with 4DM

    Efficient R290 Refrigeration

    The FM-480AKE-HCN-SB uses R290 natural refrigerant and an air-cooled refrigeration system. It is designed for commercial operation in ambient temperatures ranging from 5°C to 40°C.

    Specifications

    Model FM-480AKE-HCN-SB
    Item Number 91000184
    Configuration Modular Nugget Ice Maker
    Ice Type Nugget Ice
    Production at 10°C Air / 10°C Water Approx. 380kg / 24 Hours
    Production at 21°C Air / 15°C Water Approx. 330kg / 24 Hours
    Production at 32°C Air / 21°C Water Approx. 270kg / 24 Hours
    Corresponding Bins & Top Kits B-301SA (No Top Kit) / B-501SA (8D) / B-801SA (8D + 18D) / Double Stack B-801SA (4DM)
    Exterior Stainless Steel (Side & Rear), ABS Moulding (Front, Top & Drain Pan)
    Cooling Air Cooled
    Width 560mm
    Depth 700mm
    Height 780mm
    Net Weight 92kg
    Packed Weight 99kg
    Electrical Supply 220-240V / 50Hz / Single Phase
    Plug 10A
    Running Amperage 5.6A
    Starting Amperage 27A
    Electric Consumption 1170W
    Refrigerant R290 / 145g
    Ambient Operating Temperature 5°C to 40°C
    Water Supply Temperature 5°C to 35°C
    Water Supply Pressure 0.05-0.8 MPa (0.5-8 bar)
    Voltage Range Rated Voltage ±6%
    Electrical Circuit Breaker Protection 5A
    Heat Rejection 2190W at 32°C Air / 21°C Water
    Accessories Included Installation Kit
    Package Dimensions 665(W) x 820(D) x 950(H)mm
    GEM Number AIM0046

    Water Consumption

    10°C Air / 10°C Water Approx. 0.380m³ / 24 Hours
    21°C Air / 15°C Water Approx. 0.330m³ / 24 Hours
    32°C Air / 21°C Water Approx. 0.270m³ / 24 Hours

    Ideal For

    The Hoshizaki FM-480AKE-HCN-SB is ideal for cocktail bars, pubs, restaurants, hotels, clubs, resorts, seafood restaurants, fish markets, supermarkets, fresh food displays and other high-volume hospitality operations requiring a dependable supply of commercial nugget ice.

    Please note: This is a modular ice maker and requires a compatible ice storage bin.
