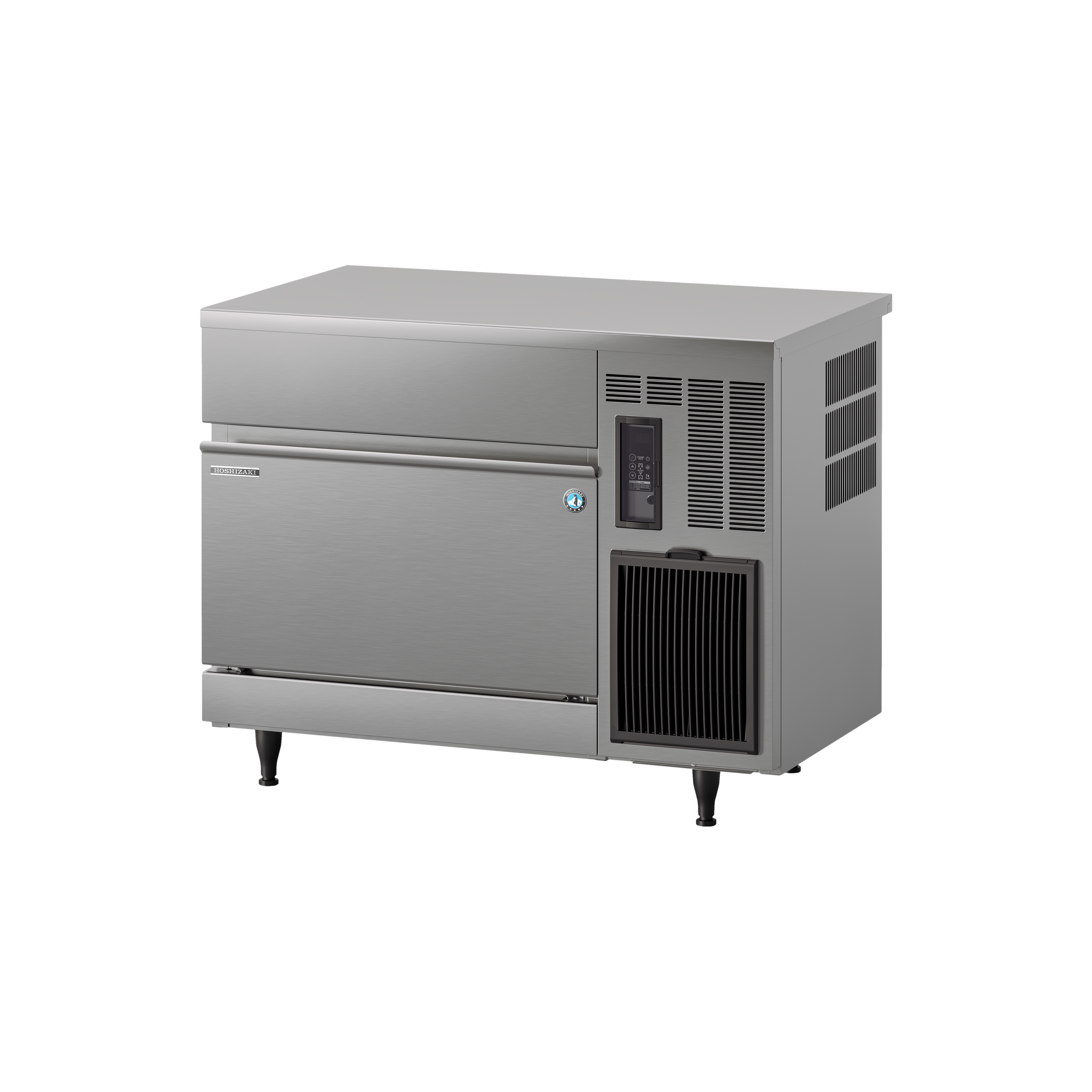

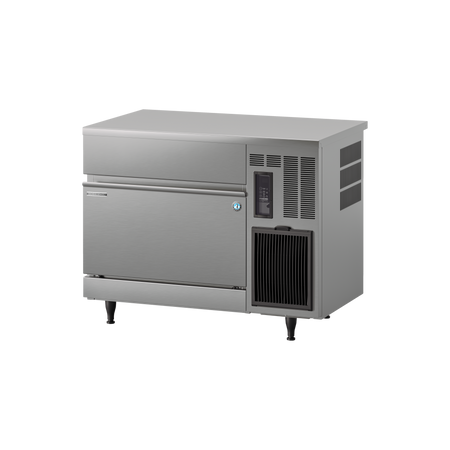

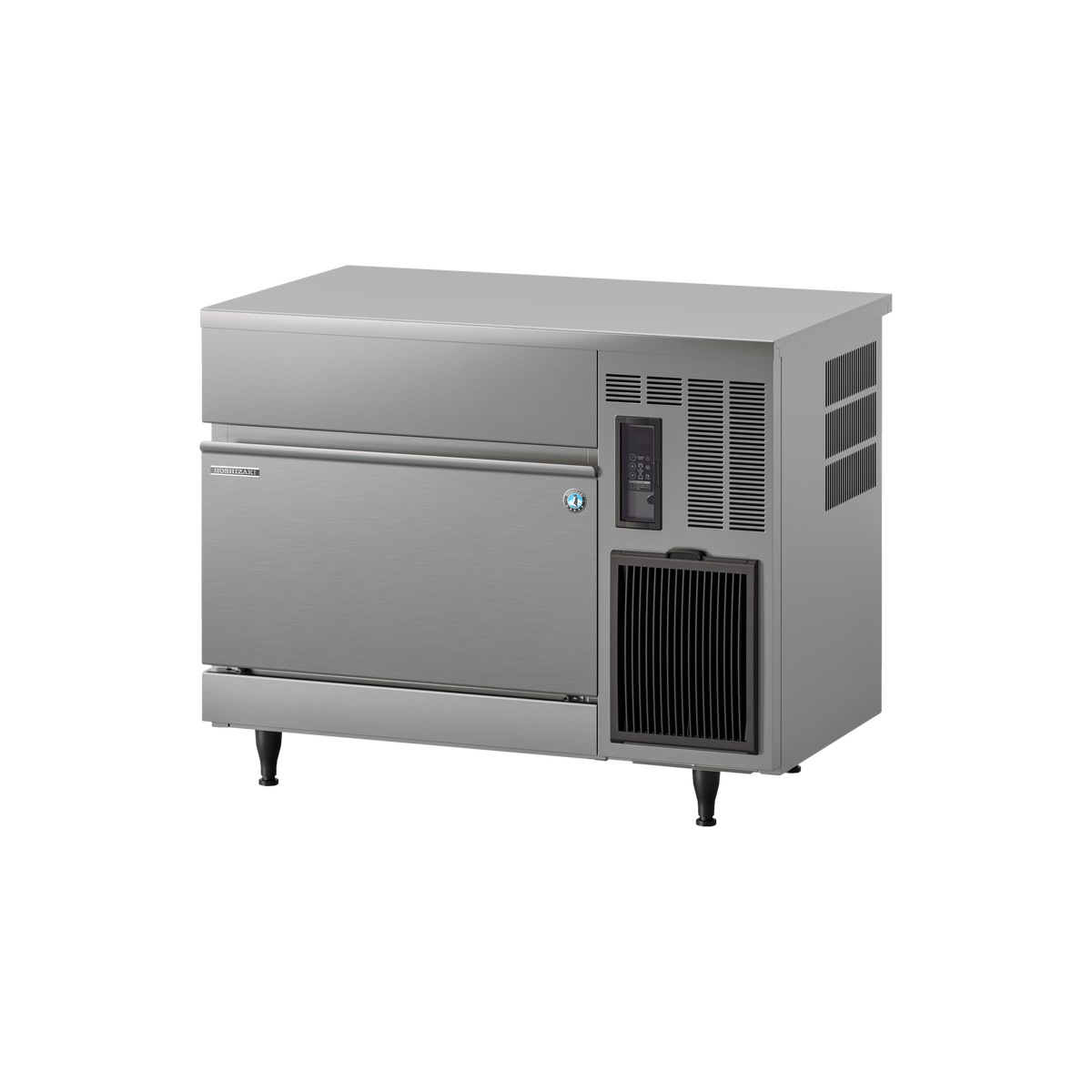

Hoshizaki IM-130CPE-23 92kg Self-Contained Cube Ice Maker – 23mm
After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote
Hoshizaki IM-130CPE-23 92kg Self-Contained Cube Ice Maker – 23mm
The Hoshizaki IM-130CPE-23 is a high-capacity self-contained commercial ice maker from the latest IM CUBE range, producing Hoshizaki's renowned 23mm hard and slow-melting cube ice. Producing approximately 92kg of ice per 24 hours at 21°C air / 15°C water conditions, with production reaching approximately 99kg per 24 hours under optimal conditions, it's an excellent solution for busy hospitality venues with substantial daily ice requirements.
The latest Hoshizaki IM CUBE generation introduces significant upgrades including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
Hoshizaki's fully closed water circuit helps protect the ice-making process against contamination, while the Closed Cell System forms each cube individually for consistent clarity and quality. Smart water-flow technology automatically adjusts pump operation throughout each phase of the ice-making cycle to help prevent chipped or cloudy cubes.
With approximately 38kg maximum ice storage capacity, environmentally friendly R290 natural refrigerant and a standard 220-240V 10A plug, the IM-130CPE-23 combines high-volume production, generous storage and straightforward installation in one self-contained commercial unit.
Key Features
- High-capacity self-contained commercial cube ice maker
- Produces approximately 92kg of ice per 24 hours at 21°C air / 15°C water conditions
- Up to approximately 99kg production per 24 hours at 10°C air / 10°C water conditions
- Premium 23mm Hoshizaki cube ice
- Hard and slow-melting individual ice cubes
- Approx. 38kg maximum ice storage capacity
- Closed water circuit helps protect against contamination
- Closed Cell System for individual cube formation
- Variable-speed magnetic DC pump motor
- Smart water-flow technology adjusts throughout the ice-making cycle
- Helps prevent chipped or cloudy ice cubes
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash controls
- Adjustable cube dimple size
- Removable water tank and DC pump for easier maintenance
- Food-grade AISI 430 stainless steel internal components
- High-grade foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- Optional scoop holder kit available
- 220-240V single phase
- 10A plug
- Installation kit and ice scoop included
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 99kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 92kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 80kg / 24 Hours |
Specifications
| Model | IM-130CPE-23 |
| Item Number | 91000191 |
| Ice Type | 23mm Cube Ice |
| Rated Production Capacity | Approx. 92kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 99kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 38kg (Bin Control Setting Approx. 23kg) |
| Cooling | Air Cooled |
| Refrigerant | R290 / 125g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 1004mm |
| Depth | 600mm |
| Height | 800mm |
| Net Weight | 80kg |
| Packed Weight | 91kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 4.2A |
| Starting Amperage | 19A |
| Electrical Consumption | 585W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 1450W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit & Scoop |
| Package Dimensions | 1110(W) x 700(D) x 875(H)mm |
| GEM Number | AIM0012 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.54m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.23m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.19m³ / 24 Hours |

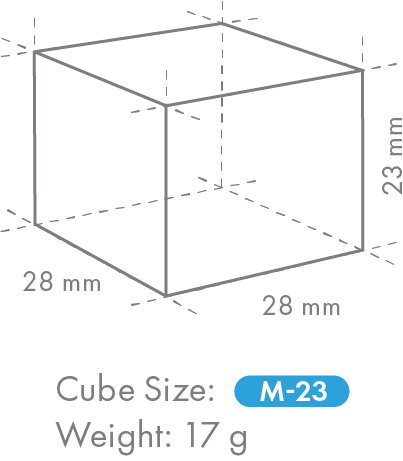

Premium 23mm Hoshizaki Cube Ice
The Hoshizaki IM-130CPE-23 produces individual 23mm cubes designed for hardness and slow melting. Hoshizaki's Closed Cell System forms each cube individually, helping deliver consistent shape, clarity and quality for professional beverage service.
High-Volume Commercial Ice Production
With approximately 92kg production per 24 hours under standard rated conditions and up to approximately 99kg per 24 hours under favourable conditions, the IM-130CPE-23 is designed for venues with substantial daily ice demand. Its approximately 38kg maximum storage capacity helps maintain a strong supply of ice ready for busy service periods.
Advanced Cleaning & Hygiene
Automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications and easily removable components help simplify ongoing maintenance. The fully closed water circuit and food-grade stainless steel components support high hygiene standards and reliable long-term commercial operation.
Efficient & Sustainable Operation
A variable-speed magnetic DC pump motor intelligently manages water flow throughout the ice-making cycle. Combined with R290 natural refrigerant, high-grade foamed insulation, standby functionality and an improved water tank design, the system is engineered to minimise unnecessary energy and water consumption.
Ideal For
Ideal for busy restaurants, bars, pubs, clubs, hotels, cafés, cocktail bars, function venues and other hospitality businesses requiring a high-volume supply of premium 23mm cube ice.
