Hoshizaki IM-240PE-23-F 145kg Cube Ice Maker with Drain Pump – Self Contained

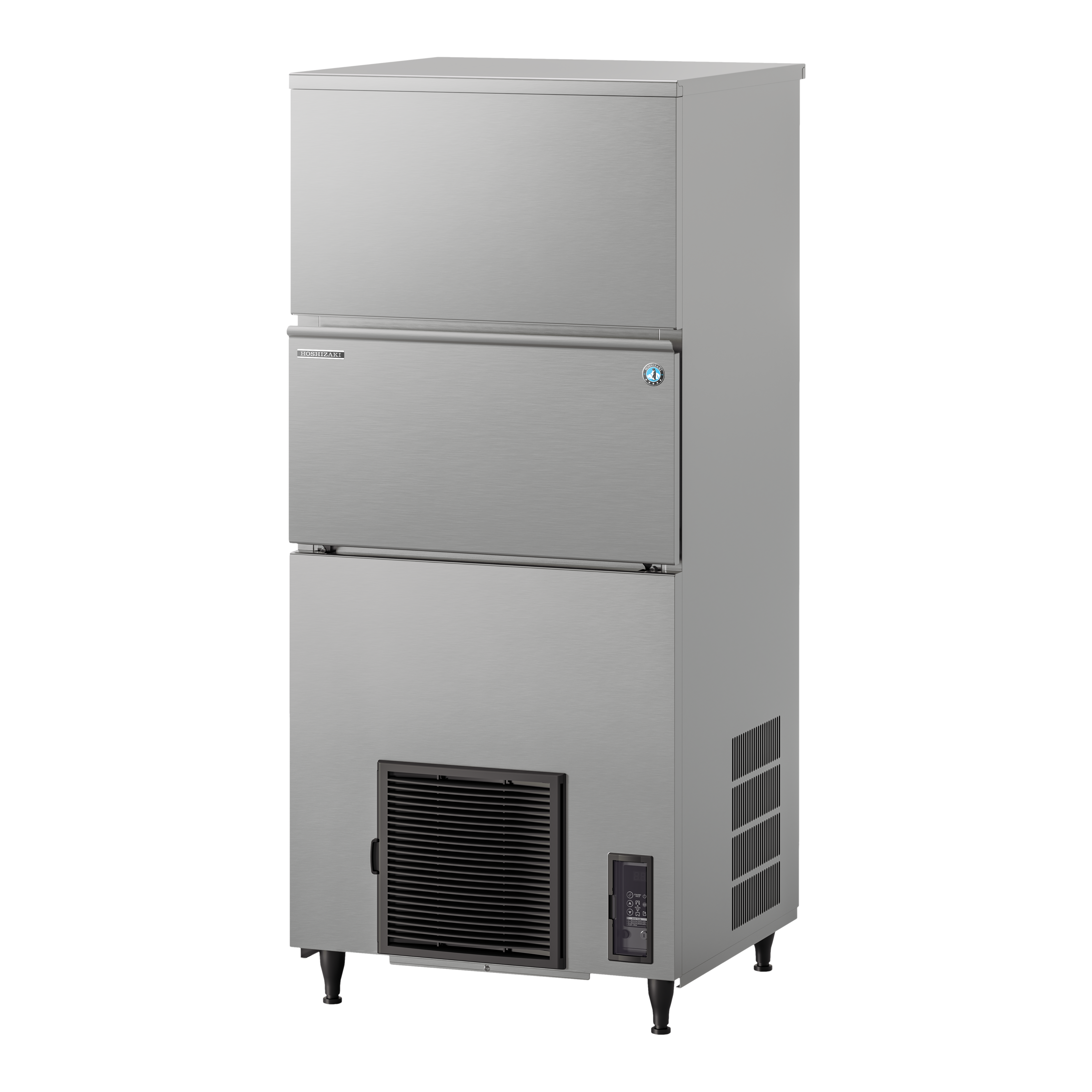

The Hoshizaki IM-240PE-23-F FlexiCUBE is a high-capacity self-contained commercial ice maker designed for demanding hospitality environments. Producing approximately 145kg of premium Hoshizaki cube ice per 24 hours at 21°C air / 15°C water conditions, with production reaching approximately 165kg per 24 hours under optimal conditions, it delivers serious ice production alongside an impressive 110kg maximum storage capacity.
As part of Hoshizaki's latest FlexiCUBE range, the IM-240PE-23-F incorporates an integrated drain pump, allowing drainage up to approximately 10 metres horizontally and 1.5 metres vertically. This provides significantly greater installation flexibility where conventional gravity drainage is difficult or where the available drain isn't positioned directly beside the machine.
The latest IM CUBE generation introduces advanced features including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
Hoshizaki's closed water circuit and Closed Cell System help protect the ice-making process against contamination while individually forming consistent, high-quality cubes. Combined with environmentally friendly R290 natural refrigerant, intelligent water-flow control and a standard 220-240V 10A plug, the IM-240PE-23-F is designed for powerful, efficient commercial ice production.
Key Features
- High-capacity self-contained commercial cube ice maker
- Produces approximately 145kg of ice per 24 hours at 21°C air / 15°C water conditions
- Up to approximately 165kg production per 24 hours at 10°C air / 10°C water conditions
- Approx. 110kg maximum ice storage capacity
- FlexiCUBE design with integrated drain pump
- Drain pump allows drainage up to 10 metres horizontally
- Can pump drainage up to 1.5 metres vertically
- Ideal for installations where conventional gravity drainage is difficult
- Closed water circuit helps protect against contamination
- Closed Cell System individually forms each ice cube
- Variable-speed magnetic DC pump motor
- Smart water-flow control automatically adjusts throughout the ice-making cycle
- Designed to produce clear and consistent premium-quality ice
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash controls
- Adjustable control panel for ice dimple size
- Removable water tank and DC pump for easier servicing
- Food-grade AISI 430 stainless steel internal components
- High-performance foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- Optional scoop holder kit available
- 220-240V single phase operation
- 10A plug
- Installation kit, legs and scoop included
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 165kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 145kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 140kg / 24 Hours |
Specifications
| Model | IM-240PE-23-F |
| Item Number | 91000168 |
| Configuration | Self-Contained FlexiCUBE with Integrated Drain Pump |
| Rated Production Capacity | Approx. 145kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 165kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 110kg (Bin Control Setting Approx. 80kg) |
| Drain Pump | Integrated |
| Maximum Horizontal Drain Distance | Up to 10m |
| Maximum Vertical Drain Height | Up to 1.5m |
| Cooling | Air Cooled |
| Refrigerant | R290 / 147g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 704mm |
| Depth | 665mm |
| Height | 1580mm |
| Net Weight | 102kg |
| Packed Weight | 115kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 3.8A |
| Starting Amperage | 27A |
| Electrical Consumption | 870W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 2580W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Legs & Scoop |
| Package Dimensions | 805(W) x 760(D) x 1684(H)mm |
| GEM Number | AIM0029 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.68m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.37m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.36m³ / 24 Hours |
FlexiCUBE with Integrated Drain Pump
The FlexiCUBE integrated drain pump provides greater freedom when deciding where to position the ice machine. Drainage can be pumped up to approximately 10 metres horizontally and 1.5 metres vertically, helping overcome common installation challenges where a suitable gravity drain isn't available directly beside or below the machine.
High-Capacity Ice Production & Storage
With approximately 145kg daily production under standard rated conditions and up to approximately 110kg of internal storage, the IM-240PE-23-F is designed for busy commercial environments with substantial ice requirements. The large storage capacity provides a valuable reserve during peak service periods.
Advanced Hygiene & Cleaning
A closed water circuit helps protect the ice-making process against contamination, while Hoshizaki's Closed Cell System forms cubes individually for consistent results. Automated cleaning, wash auto-restart and dedicated water circuit and condenser cleaning notifications simplify routine maintenance and help support high hygiene standards.
Efficient & Sustainable Operation
The variable-speed magnetic DC pump motor intelligently manages water flow throughout production. Combined with R290 natural refrigerant, standby functionality and high-performance foamed insulation, the machine is engineered to reduce unnecessary energy and water consumption while maintaining high commercial output.
Ideal For
Ideal for high-volume restaurants, bars, pubs, clubs, hotels, entertainment venues, catering operations and other busy hospitality businesses requiring substantial daily ice production and storage with the added flexibility of an integrated drain pump.
