Hoshizaki
SKU / Model no: 91000169

Hoshizaki IM-240PE-28 180kg Cube Ice Maker – Self Contained

$8,877.00 AUD + GST
$13,350.00 AUD + GST -34% $8,877.00 AUD + GST
SilverChef Logo
Rent, Try, Buy From $112.67 + GST Per Week
Apply Now →
Call Us for a Stellar Deal

Contact Us 0426 810 596

Last Price Guarantee
18+ Years Experience

Please let us know how we can assist you in the comments section. If you would like us to give you a call, kindly include your contact number.

Shipping Prices Tailored to you

    After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote

    Specifications
    • Type Ice Machines
    • Vendor Hoshizaki
    • SKU / Model no 91000169
    • Width(mm) 704
    • Depth(mm) 665
    • Height(mm) 1580
    • Warranty Two years
    • Weight 108kg
    • Spec Sheet Link
    • User Manual Link

    To check item availability for pickup, please email us the product code(s) along with your state. We'll confirm if the item(s) are available for pickup in your area sales@stellarequip.com.au

    Description Our Ordering Process

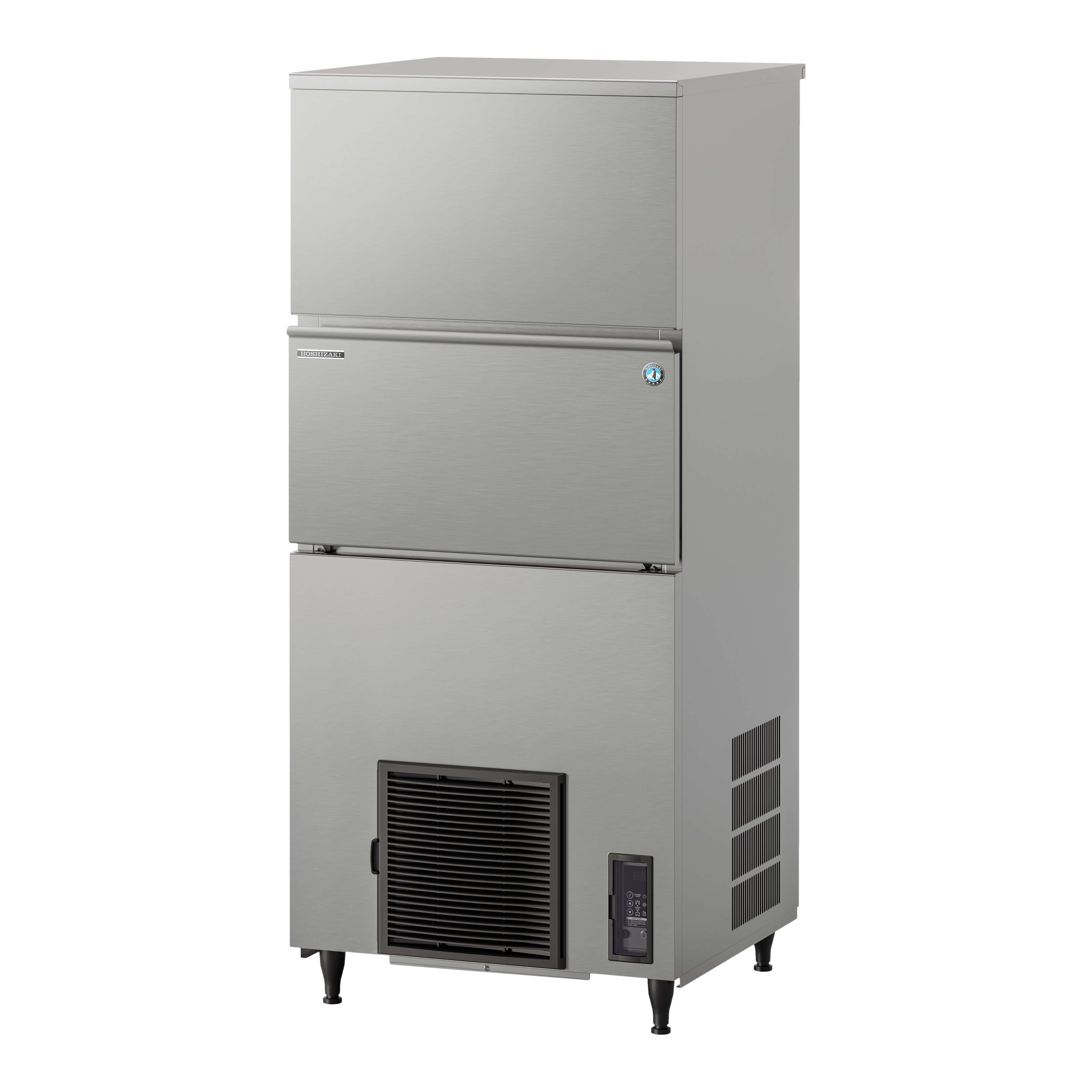

    Hoshizaki IM-240PE-28 180kg Cube Ice Maker – Self Contained

    The Hoshizaki IM-240PE-28 is a high-capacity self-contained commercial ice maker from the latest IM CUBE series, producing Hoshizaki's renowned hard and slow-melting 28mm cube ice. Producing approximately 180kg of ice per 24 hours at 21°C air / 15°C water conditions, with output reaching approximately 195kg per 24 hours under optimal conditions, it's an excellent solution for busy restaurants, bars, hotels, clubs and other high-volume hospitality operations.

    The latest IM CUBE generation introduces a range of smart upgrades including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.

    Hoshizaki's closed water circuit helps protect the ice-making process against contamination, while the Closed Cell System forms each cube individually for consistent clarity and quality. Combined with environmentally friendly R290 natural refrigerant, intelligent water-flow control and a standard 220-240V 10A plug, the IM-240PE-28 delivers dependable high-volume ice production for demanding commercial environments.

    Key Features

    • High-capacity self-contained commercial cube ice maker
    • Produces premium 28mm Hoshizaki cube ice
    • Approx. 180kg ice production per 24 hours at 21°C air / 15°C water conditions
    • Up to approx. 195kg production per 24 hours at 10°C air / 10°C water conditions
    • Approx. 110kg maximum ice storage capacity
    • Closed water circuit helps protect against contamination
    • Closed Cell System individually forms each ice cube
    • Variable-speed magnetic DC pump motor
    • Smart water-flow control throughout the ice-making cycle
    • Helps prevent chipped or cloudy ice
    • Automated cleaning with wash auto-restart
    • Water circuit and condenser cleaning notifications
    • Dedicated standby and wash controls
    • Adjustable ice cube dimple size
    • Removable water tank and DC pump for easier maintenance
    • Food-grade AISI 430 stainless steel internal components
    • High-grade foamed insulation
    • Eco-friendly R290 natural refrigerant
    • Air-cooled refrigeration system
    • Optional scoop holder kit available
    • 220-240V single phase operation
    • 10A plug
    • Installation kit, legs and scoop included

    Ice Production Capacity

    10°C Air / 10°C Water Approx. 195kg / 24 Hours
    21°C Air / 15°C Water Approx. 180kg / 24 Hours
    32°C Air / 21°C Water Approx. 160kg / 24 Hours

    Specifications

    Model IM-240PE-28
    Item Number 91000169
    Configuration Self-Contained Cube Ice Maker
    Ice Type 28mm Cube Ice
    Rated Production Capacity Approx. 180kg / 24 Hours at 21°C Air / 15°C Water
    Maximum Production Approx. 195kg / 24 Hours at 10°C Air / 10°C Water
    Maximum Storage Capacity Approx. 110kg (Bin Control Setting Approx. 80kg)
    Cooling Air Cooled
    Refrigerant R290 / 147g
    Exterior AISI 441 Stainless Steel / Galvanised Steel Rear
    Width 704mm
    Depth 665mm
    Height 1580mm
    Net Weight 108kg
    Packed Weight 121kg
    Electrical Supply 220-240V / 50Hz / Single Phase
    Plug 10A
    Running Amperage 4.0A
    Starting Amperage 27A
    Electrical Consumption 870W
    Ambient Operating Temperature 1°C to 40°C
    Water Supply Temperature 5°C to 35°C
    Water Supply Pressure 0.07-0.8 MPa (0.7-8 bar)
    Voltage Range Rated Voltage ±6%
    Electrical Circuit Breaker Protection 5A
    Heat Rejection 2580W at 32°C Air / 21°C Water
    Accessories Included Installation Kit, Legs & Scoop
    Package Dimensions 805(W) x 760(D) x 1684(H)mm
    GEM Number AIM0022

    Water Consumption

    10°C Air / 10°C Water Approx. 0.67m³ / 24 Hours
    21°C Air / 15°C Water Approx. 0.32m³ / 24 Hours
    32°C Air / 21°C Water Approx. 0.29m³ / 24 Hours

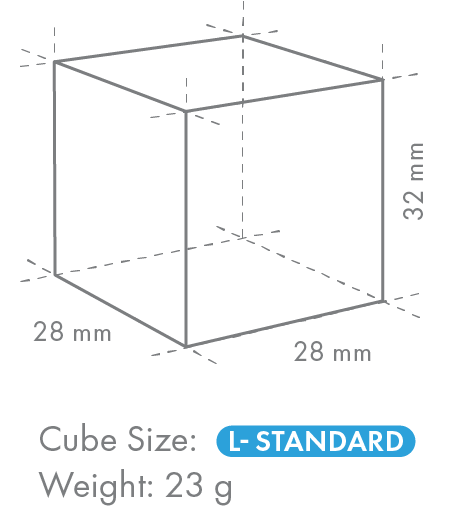

    Premium 28mm Cube Ice

    The IM-240PE-28 produces Hoshizaki's renowned 28mm hard and slow-melting cube ice. The Closed Cell System forms each cube individually, while intelligent water-flow control helps prevent chipped or cloudy cubes for consistently clear, high-quality ice.

    Advanced Hygiene & Cleaning

    A closed water circuit helps protect the ice-making process against contamination. Automated cleaning with wash auto-restart, together with water circuit and condenser cleaning notifications, simplifies routine maintenance and supports high hygiene standards in demanding commercial environments.

    Efficient & Sustainable Operation

    The variable-speed magnetic DC pump motor intelligently adjusts water flow during each stage of the ice-making cycle. Combined with environmentally friendly R290 natural refrigerant, standby functionality, high-grade foamed insulation and an improved water tank design, the machine is engineered to reduce unnecessary energy and water consumption.

    Built for Long-Term Commercial Use

    Food-grade AISI 430 stainless steel internal components, intelligent motor control and reduced-wear technology help support long-term reliability. The removable water tank and DC pump also simplify servicing and routine maintenance.

    Ideal For

    Ideal for busy restaurants, bars, pubs, clubs, hotels, resorts, entertainment venues, catering operations and other high-volume hospitality businesses requiring dependable daily production of premium 28mm cube ice.
