Hoshizaki IM-240PE-28-F 180kg Cube Ice Maker with Drain Pump – Self Contained

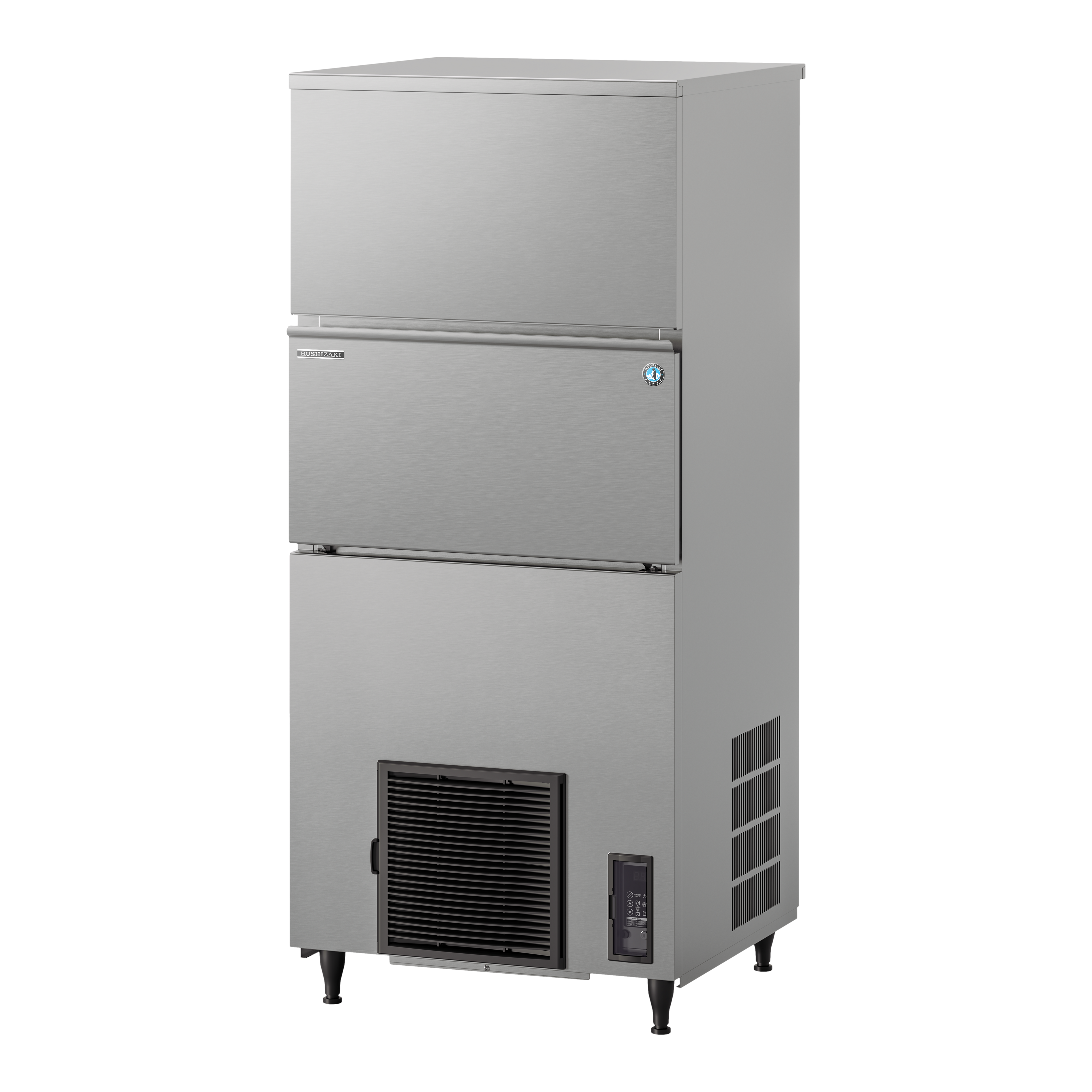

The Hoshizaki IM-240PE-28-F FlexiCUBE is a high-capacity self-contained commercial ice maker designed to produce Hoshizaki's renowned hard, clear and slow-melting 28mm cube ice. Producing approximately 180kg of ice per 24 hours at 21°C air / 15°C water conditions, with output reaching approximately 195kg per 24 hours under optimal conditions, it's an excellent choice for busy bars, restaurants, hotels, clubs and high-volume hospitality venues.
As part of Hoshizaki's latest FlexiCUBE range, the IM-240PE-28-F features an integrated internal drain pump, allowing drainage up to approximately 10 metres horizontally and 1.5 metres vertically. This provides significantly greater flexibility when installing the ice maker in locations where conventional gravity drainage is difficult or a suitable drain isn't positioned directly beside the machine.
The latest IM CUBE generation introduces advanced features including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
Hoshizaki's closed water circuit and Closed Cell System help protect the ice-making process against contamination while forming each cube individually for consistent clarity and quality. Combined with environmentally friendly R290 natural refrigerant, intelligent water-flow control and a standard 220-240V 10A plug, the IM-240PE-28-F delivers powerful and efficient commercial ice production.
Key Features
- High-capacity self-contained commercial cube ice maker
- Produces premium 28mm Hoshizaki cube ice
- Approx. 180kg ice production per 24 hours at 21°C air / 15°C water conditions
- Up to approx. 195kg production per 24 hours at 10°C air / 10°C water conditions
- Approx. 110kg maximum ice storage capacity
- FlexiCUBE design with integrated internal drain pump
- Drain pump allows drainage up to 10 metres horizontally
- Can pump drainage up to 1.5 metres vertically
- Ideal where conventional gravity drainage is difficult
- Closed water circuit helps protect against contamination
- Closed Cell System individually forms each ice cube
- Variable-speed magnetic DC pump motor
- Smart water-flow control for consistent ice production
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash controls
- Adjustable control panel
- Removable components simplify maintenance
- Food-grade AISI 430 stainless steel internal components
- High-grade foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- Optional scoop holder kit available
- 220-240V single phase operation
- 10A plug
- Installation kit, legs and scoop included
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 195kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 180kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 160kg / 24 Hours |
Specifications
| Model | IM-240PE-28-F |
| Item Number | 91000170 |
| Configuration | Self-Contained FlexiCUBE with Integrated Drain Pump |
| Ice Type | 28mm Cube Ice |
| Rated Production Capacity | Approx. 180kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 195kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 110kg (Bin Control Setting Approx. 80kg) |
| Drain Pump | Integrated |
| Maximum Horizontal Drain Distance | Up to 10m |
| Maximum Vertical Drain Height | Up to 1.5m |
| Cooling | Air Cooled |
| Refrigerant | R290 / 147g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 704mm |
| Depth | 665mm |
| Height | 1580mm |
| Net Weight | 109kg |
| Packed Weight | 122kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 4.0A |
| Starting Amperage | 27A |
| Electrical Consumption | 870W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 2580W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Legs & Scoop |
| Package Dimensions | 805(W) x 760(D) x 1684(H)mm |
| GEM Number | AIM0022 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.67m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.32m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.29m³ / 24 Hours |
FlexiCUBE with Integrated Drain Pump
The FlexiCUBE integrated drain pump provides greater freedom when positioning the ice maker. Drainage can be pumped up to approximately 10 metres horizontally and 1.5 metres vertically, helping overcome installation challenges where a suitable gravity drain isn't available directly beside or below the machine.

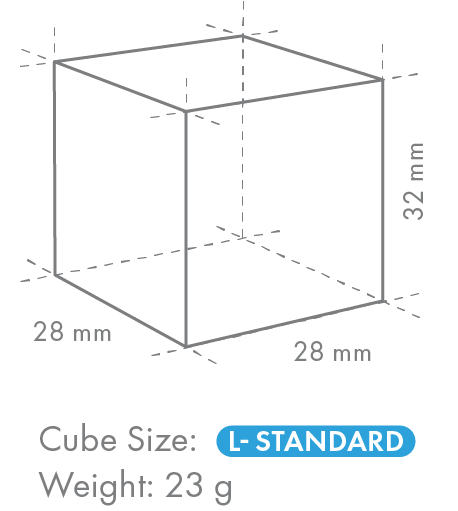

Premium 28mm Cube Ice
The IM-240PE-28-F produces Hoshizaki's renowned 28mm hard, clear and slow-melting cube ice. The Closed Cell System forms cubes individually, while intelligent water-flow control helps produce consistent, high-quality ice suitable for drinks, cocktails, spirits and other commercial hospitality applications.
Advanced Hygiene & Cleaning
A closed water circuit helps protect the ice-making process against contamination. Automated cleaning with wash auto-restart, together with dedicated water circuit and condenser cleaning notifications, simplifies routine maintenance and supports high hygiene standards in demanding commercial environments.
Efficient & Sustainable Operation
The variable-speed magnetic DC pump motor regulates water flow throughout each production cycle. Combined with environmentally friendly R290 natural refrigerant, standby functionality, premium foamed insulation and an improved water tank design, the machine is engineered to reduce unnecessary energy and water consumption while maintaining strong commercial performance.
Ideal For
Ideal for busy restaurants, bars, pubs, clubs, hotels, resorts, entertainment venues, catering operations and other high-volume hospitality businesses requiring substantial daily ice production with the added installation flexibility of an integrated drain pump.
