Hoshizaki IM-45CPE-25 34kg Self-Contained Cube Ice Maker – 25mm
After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote
Hoshizaki IM-45CPE-25 34kg Self-Contained Cube Ice Maker – 25mm

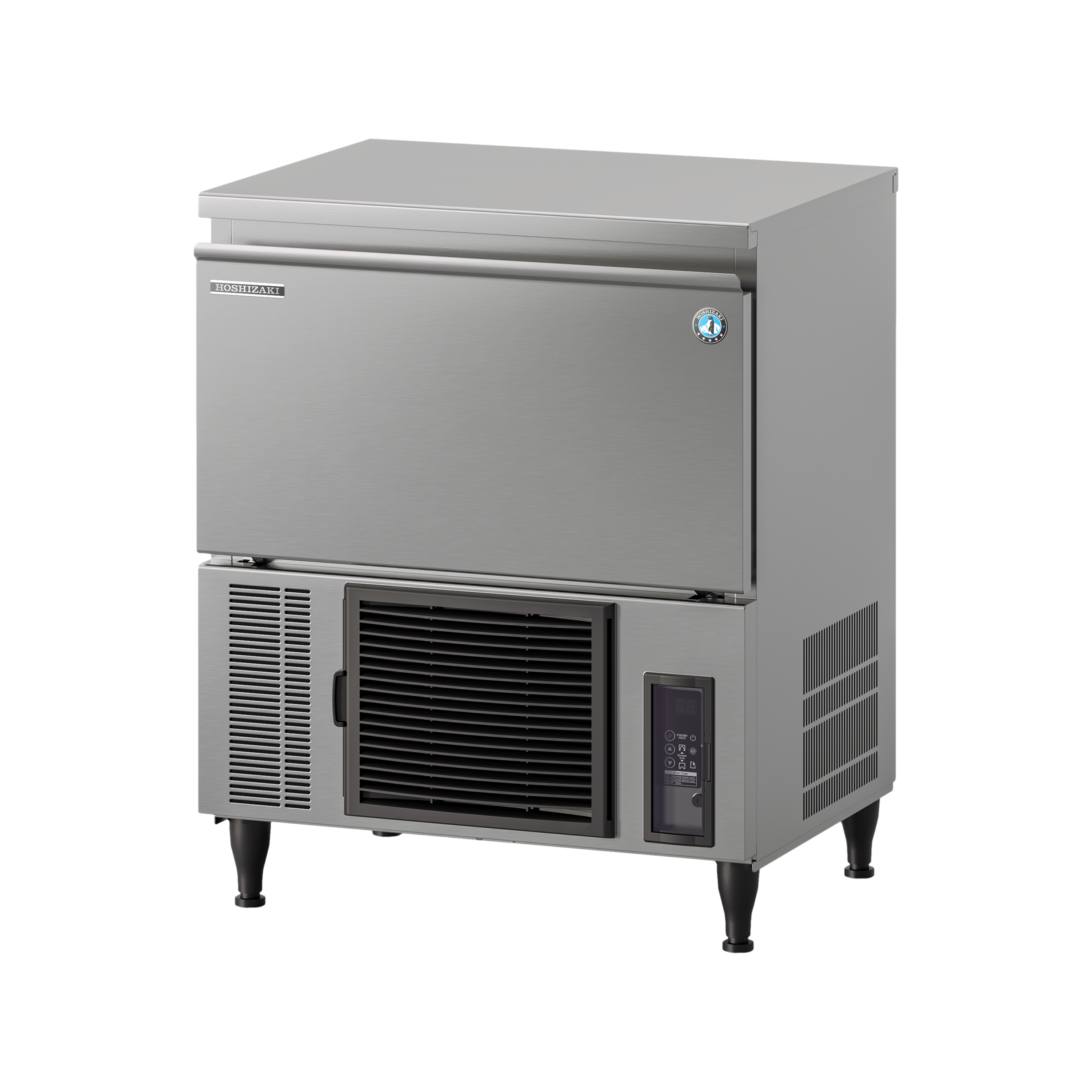

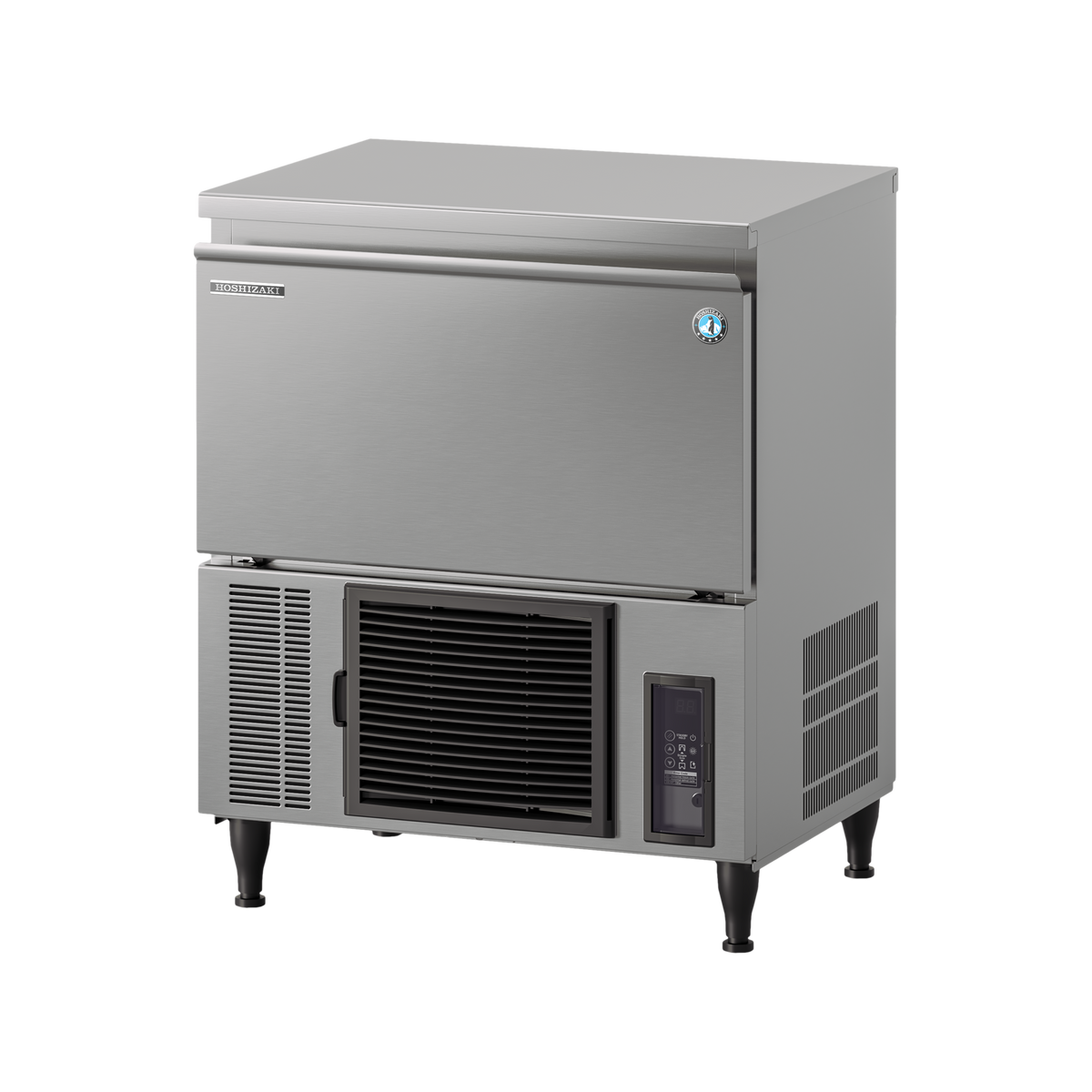

The Hoshizaki IM-45CPE-25 Cube Ice Maker is a self-contained commercial ice machine producing Hoshizaki's renowned 25mm hard, clear and slow-melting cube ice. Producing approximately 34kg of ice per 24 hours at 21°C air / 15°C water conditions, it provides a reliable supply of premium-quality ice for restaurants, cafés, bars, hotels and other hospitality venues.
Part of Hoshizaki's latest IM CUBE generation, the IM-45CPE-25 features advanced upgrades including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
The closed water circuit and closed-cell ice-making system help protect against contamination throughout the cubing process while delivering consistently clear and uniform ice. Intelligent water flow automatically adapts during each phase of production to help prevent chipped or cloudy cubes, while the improved water tank design and variable-speed pump help optimise water and energy consumption.
With approximately 15kg maximum ice storage capacity, a practical self-contained design and standard 220-240V 10A plug, the IM-45CPE-25 combines commercial ice production and storage within one efficient unit.
Key Features
- Self-contained commercial cube ice maker
- Produces approximately 34kg of ice per 24 hours at 21°C air / 15°C water conditions
- Up to approximately 38kg production per 24 hours at 10°C air / 10°C water conditions
- Premium 25mm Hoshizaki cube ice
- Hard, clear and slow-melting ice cubes
- Approx. 15kg maximum ice storage capacity
- Closed water circuit helps protect against contamination
- Closed-cell individual cube-forming system
- Variable-speed magnetic DC pump motor
- Intelligent water flow adjustment throughout the ice-making cycle
- Helps prevent chipped or cloudy ice cubes
- Improved water tank design helps reduce water consumption
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash buttons
- Adjustable control panel for cube dimple size
- Removable water tank and DC pump for easier servicing
- Food-grade AISI 430 stainless steel internal components
- High-grade foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- Optional Scoop Holder-Kit available
- 220-240V single phase
- 10A plug
- Installation kit, legs and ice scoop included
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 38kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 34kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 26kg / 24 Hours |
Specifications
| Model | IM-45CPE-25 |
| Item Number | 91000155 |
| Ice Type | 25mm Cube Ice |
| Rated Production Capacity | Approx. 34kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 38kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 15kg (Bin Control Setting Approx. 8kg) |
| Cooling | Air Cooled |
| Refrigerant | R290 / 70g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 633mm |
| Depth | 511mm |
| Height | 780mm |
| Net Weight | 44kg |
| Packed Weight | 54kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 1.6A |
| Starting Amperage | 9A |
| Electrical Consumption | 245W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 710W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Legs & Scoop |
| Package Dimensions | 735(W) x 570(D) x 864(H)mm |
| GEM Number | AIM0019 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.20m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.11m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.09m³ / 24 Hours |

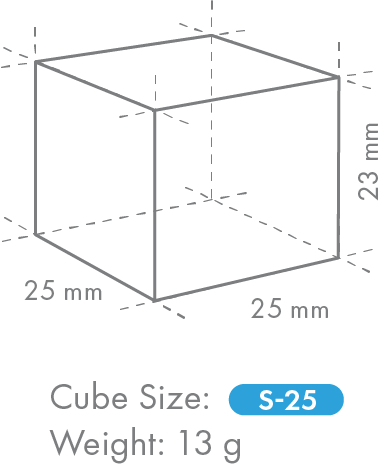

Premium 25mm Hoshizaki Cube Ice
The Hoshizaki IM-45CPE-25 produces individual 25mm cubes designed for excellent clarity, hardness and slow melting. Hoshizaki's closed-cell ice-making system forms each cube individually, helping deliver consistent size, shape and quality for professional beverage presentation.
Advanced Cleaning & Hygiene
Automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications and easily removable internal components help simplify ongoing maintenance. The closed water circuit and food-grade stainless steel components are designed to support high hygiene standards and dependable long-term commercial operation.
Efficient Self-Contained Design
The IM-45CPE-25 combines commercial ice production with approximately 15kg maximum storage capacity in one unit. Its efficient internal layout provides strong output without requiring a separate ice storage bin, making it a practical solution for space-conscious hospitality venues.
Ideal For
Ideal for restaurants, cafés, bars, pubs, clubs, hotels, cocktail bars and other hospitality businesses requiring a reliable supply of premium 25mm cube ice.
