Hoshizaki IM-45CPE-28-F 36kg Cube Ice Maker with Drain Pump – 28mm

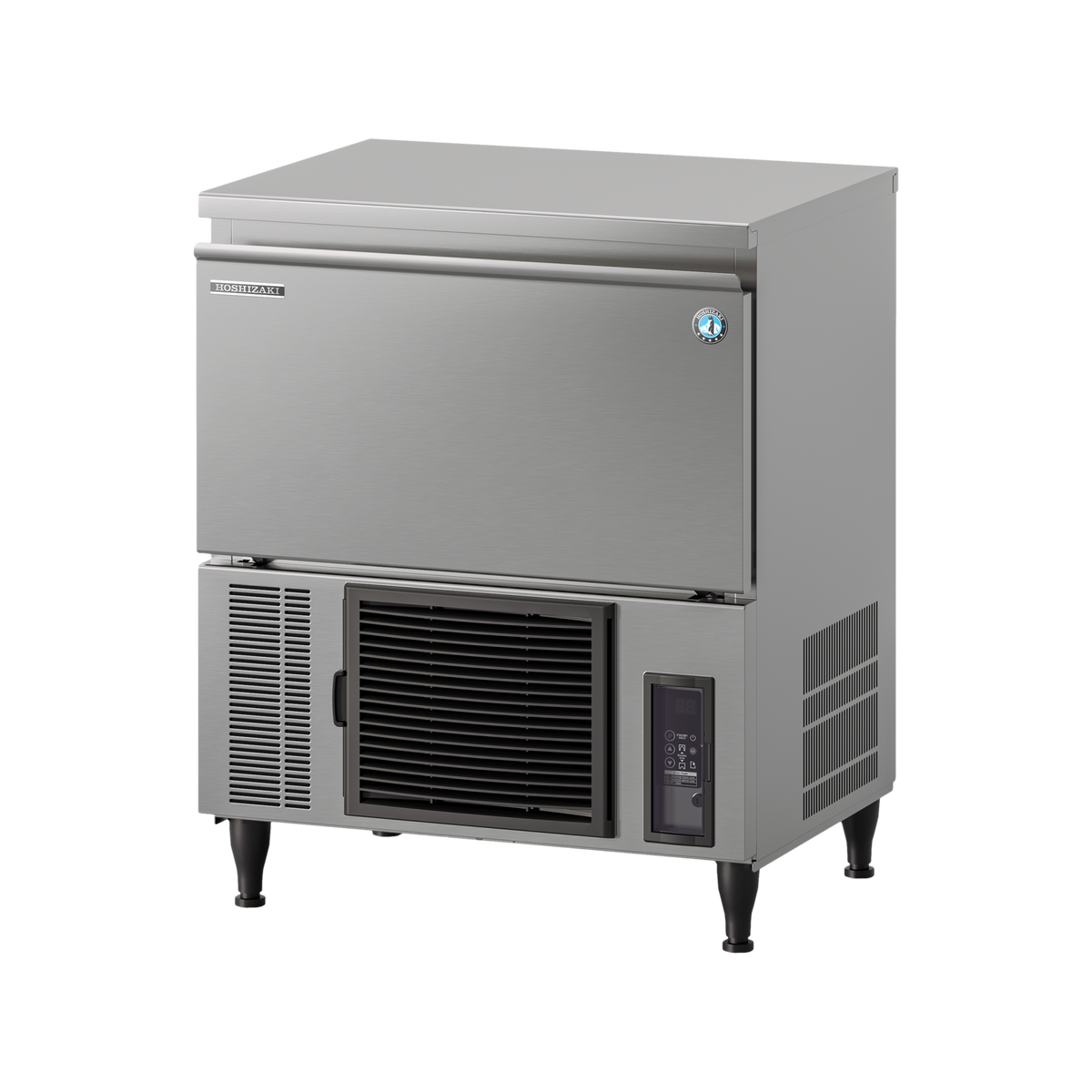

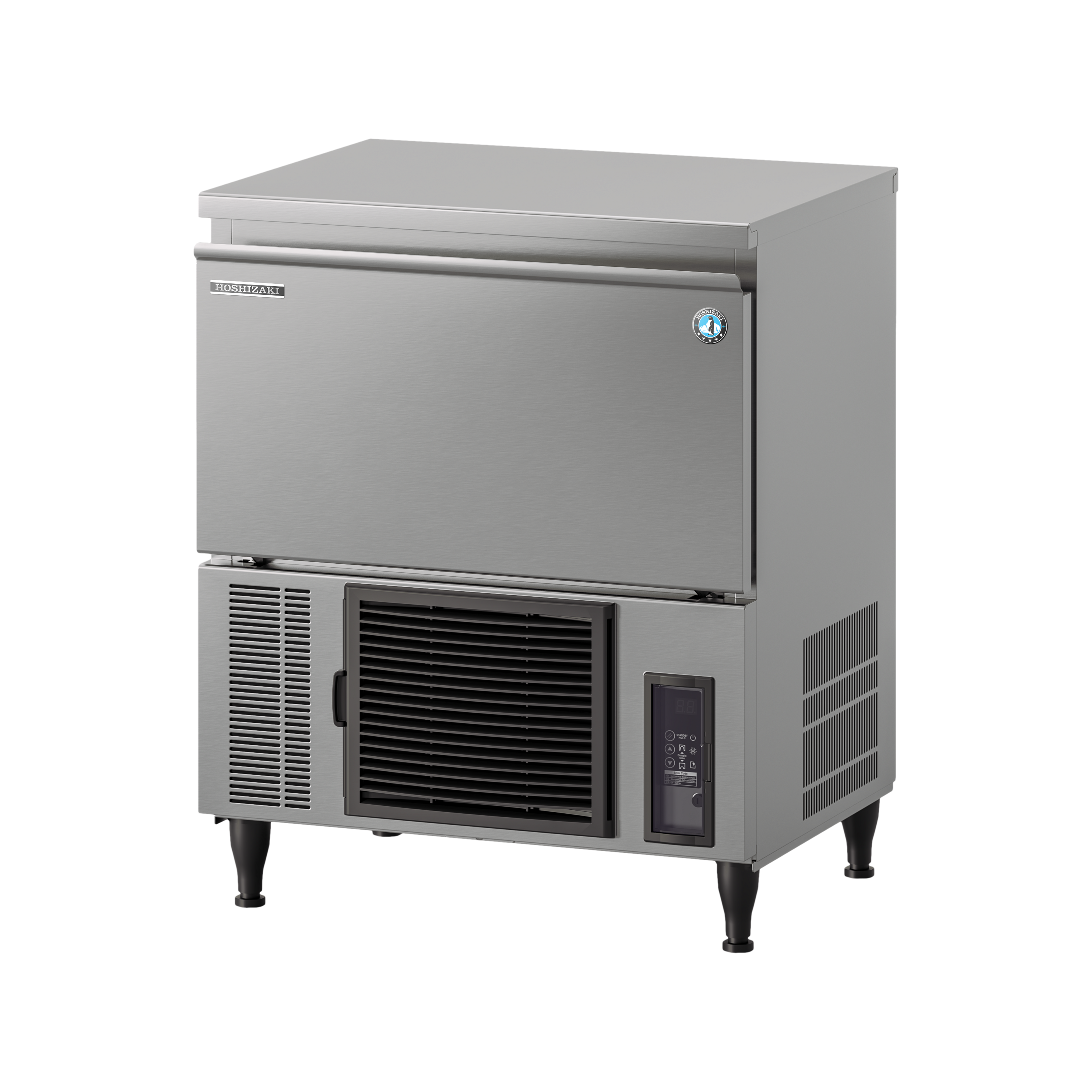

The Hoshizaki IM-45CPE-28-F FlexiCUBE Ice Maker is a self-contained commercial ice machine producing Hoshizaki's renowned 28mm hard, clear and slow-melting cube ice. Producing approximately 36kg of ice per 24 hours at 21°C air / 15°C water conditions, it combines premium ice production with an integrated drain pump for significantly greater installation flexibility.
Part of Hoshizaki's FlexiCUBE range, the IM-45CPE-28-F is particularly useful in kitchens, bars and hospitality venues where access to a suitable gravity drain is difficult. The integrated drain pump allows installation up to 10 metres horizontally from the drain and up to 1.5 metres vertically, providing greater freedom when planning equipment layouts.
The latest IM CUBE generation introduces advanced features including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
A fully closed water circuit and closed-cell cube-forming system help protect against contamination while producing consistently clear and uniform cubes. Intelligent water flow adapts throughout the ice-making cycle to help prevent chipped or cloudy ice, while the variable-speed pump and optimised water tank help reduce water and energy consumption.
Key Features
- FlexiCUBE self-contained commercial cube ice maker
- Integrated drain pump for flexible installation
- Drain pump allows installation up to 10 metres horizontally from the drain
- Can pump drainage up to 1.5 metres vertically
- Produces approximately 36kg of ice per 24 hours at 21°C air / 15°C water conditions
- Up to approximately 42kg production per 24 hours at 10°C air / 10°C water conditions
- Premium 28mm Hoshizaki cube ice
- Hard, clear and slow-melting ice cubes
- Approx. 15kg maximum ice storage capacity
- Fully closed water circuit helps protect against contamination
- Closed-cell individual cube-forming system
- Variable-speed magnetic DC pump motor
- Intelligent water flow adjustment throughout the ice-making cycle
- Helps prevent chipped or cloudy ice cubes
- Optimised water tank design helps reduce water consumption
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash buttons
- Adjustable control panel for cube dimple size
- Removable water tank and DC pump for easier servicing
- Food-grade AISI 430 stainless steel internal components
- High-grade foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- Optional Scoop Holder-Kit available
- 220-240V single phase
- 10A plug
- Installation kit, legs and ice scoop included
FlexiCUBE Integrated Drain Pump
Unlike a conventional gravity-drain ice maker, the IM-45CPE-28-F features an integrated internal drain pump. This allows the machine to be positioned up to 10 metres horizontally from the drain and up to 1.5 metres vertically, making it a practical option for locations where drainage restrictions would otherwise limit ice machine placement.
This added installation flexibility can be particularly valuable for bars, cafés, restaurants and commercial kitchen projects where existing plumbing or equipment layouts make access to a nearby floor-level drain difficult.
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 42kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 36kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 29kg / 24 Hours |
Specifications
| Model | IM-45CPE-28-F |
| Item Number | 91000158 |
| Ice Type | 28mm Cube Ice |
| Rated Production Capacity | Approx. 36kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 42kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 15kg (Bin Control Setting Approx. 8kg) |
| Drain Pump | Integrated |
| Maximum Horizontal Drain Distance | Up to 10m |
| Maximum Vertical Drain Height | Up to 1.5m |
| Cooling | Air Cooled |
| Refrigerant | R290 / 70g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 633mm |
| Depth | 511mm |
| Height | 780mm |
| Net Weight | 45kg |
| Packed Weight | 55kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 1.6A |
| Starting Amperage | 9A |
| Electrical Consumption | 255W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 710W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Legs & Scoop |
| Package Dimensions | 735(W) x 570(D) x 864(H)mm |
| GEM Number | AIM0018 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.11m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.05m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.04m³ / 24 Hours |

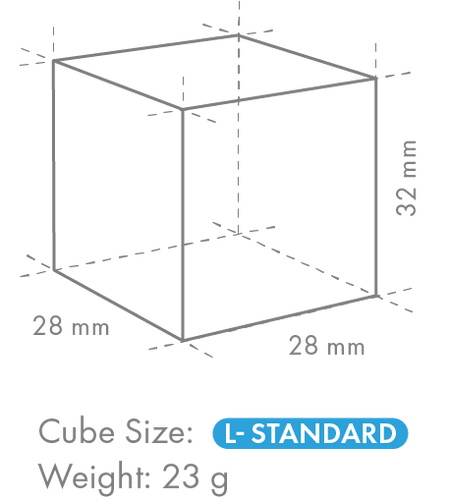

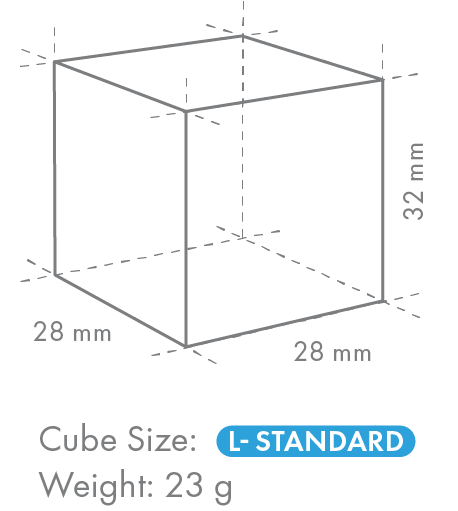

Premium 28mm Hoshizaki Cube Ice
The Hoshizaki IM-45CPE-28-F produces individual 28mm cubes designed for excellent clarity, hardness and slow melting. Hoshizaki's closed-cell ice-making system forms each cube individually, helping deliver consistent size, shape and quality for professional beverage presentation.
Advanced Cleaning & Hygiene
Automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications and easily removable internal components help simplify ongoing maintenance. The closed water circuit and food-grade stainless steel components are designed to support high hygiene standards and dependable long-term commercial operation.
Ideal For
Ideal for restaurants, cafés, bars, pubs, clubs, hotels and commercial kitchens requiring premium 28mm cube ice, particularly where traditional gravity drainage is difficult or a suitable drain is not located directly beside the ice maker.
