Hoshizaki IM-45CPE-25-F 34kg Cube Ice Maker with Drain Pump – 25mm

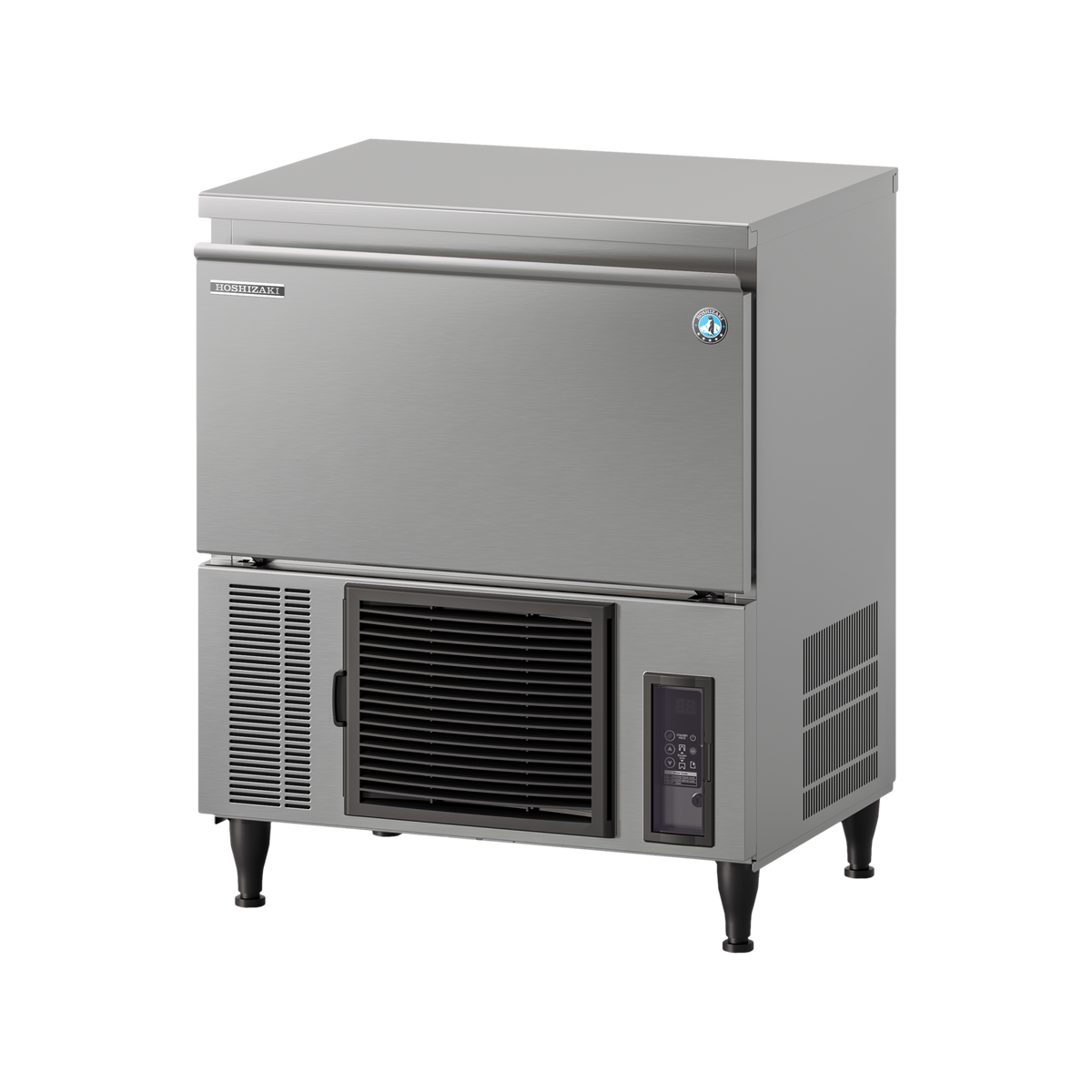

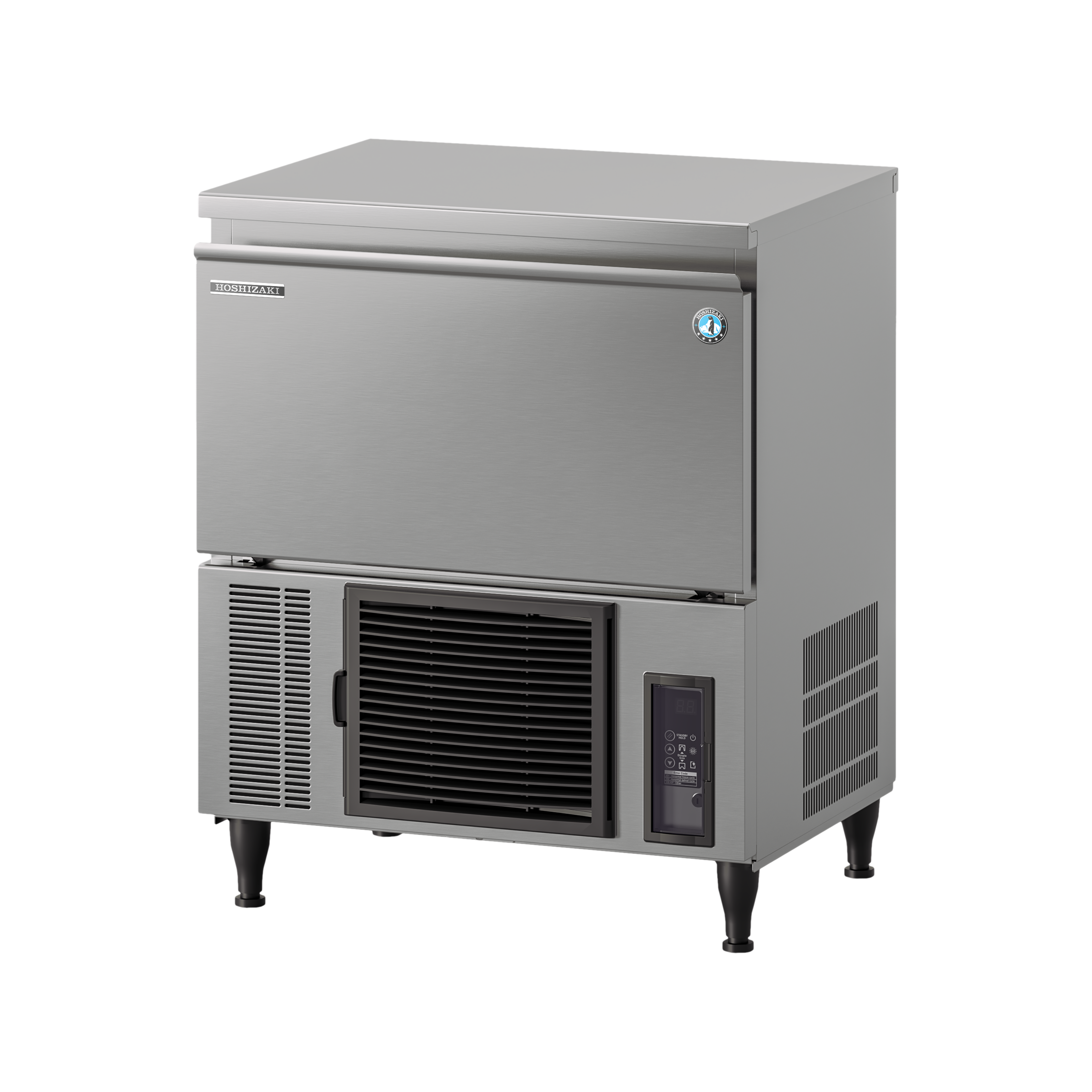

The Hoshizaki IM-45CPE-25-F FlexiCUBE Ice Maker is a self-contained commercial ice machine producing Hoshizaki's renowned 25mm hard, clear and slow-melting cube ice. Producing approximately 34kg of ice per 24 hours at 21°C air / 15°C water conditions, it combines premium ice production with an integrated drain pump for greater installation flexibility.
Part of Hoshizaki's FlexiCUBE range, the IM-45CPE-25-F is particularly useful in kitchens, bars and hospitality venues where access to a suitable gravity drain is difficult. The integrated drain pump allows drainage up to 10 metres horizontally and up to 1.5 metres vertically, giving designers and operators greater freedom when positioning the machine.
The latest IM CUBE generation features advanced upgrades including automated cleaning, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
A closed water circuit helps protect the ice-making process against contamination, while Hoshizaki's closed-cell system forms each cube individually for consistent results. Intelligent water flow control adjusts throughout the production cycle to help prevent chipped or cloudy cubes while improving water and energy efficiency.
Key Features
- FlexiCUBE self-contained commercial cube ice maker
- Integrated drain pump for flexible installation
- Drainage possible up to 10 metres horizontally
- Drainage possible up to 1.5 metres vertically
- Produces approximately 34kg of ice per 24 hours at 21°C air / 15°C water conditions
- Up to approximately 38kg production per 24 hours at 10°C air / 10°C water conditions

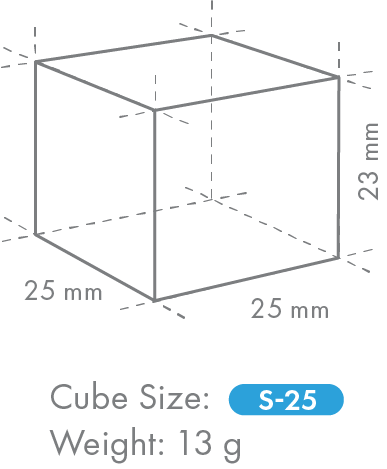

- Premium 25mm Hoshizaki cube ice
- Hard, clear and slow-melting ice cubes
- Approx. 15kg maximum ice storage capacity
- Closed water circuit helps protect against contamination
- Closed-cell system forms each cube individually
- Variable-speed magnetic DC pump motor
- Intelligent water flow adjustment throughout the ice-making cycle
- Helps prevent chipped or cloudy ice cubes
- Improved water tank design helps reduce water consumption
- Automated cleaning for easier maintenance
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash controls
- Adjustable cube dimple size
- Removable water tank and pump for easier servicing
- Food-grade AISI 430 stainless steel internal components
- High-grade foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- Optional Scoop Holder-Kit available
- 220-240V single phase
- 10A plug
- Installation kit, legs and ice scoop included
FlexiCUBE Integrated Drain Pump
Unlike a conventional gravity-drain ice maker, the IM-45CPE-25-F features an integrated internal drain pump. The pump allows drainage over distances of up to 10 metres horizontally and 1.5 metres vertically, providing greater flexibility when a suitable drain is not located immediately beside or below the ice machine.
This makes the FlexiCUBE particularly useful for bars, cafés, restaurants and commercial kitchens where existing plumbing, cabinetry or equipment layouts would otherwise restrict the placement of a traditional ice maker.
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 38kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 34kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 26kg / 24 Hours |
Specifications
| Model | IM-45CPE-25-F |
| Item Number | 91000156 |
| Ice Type | 25mm Cube Ice |
| Rated Production Capacity | Approx. 34kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 38kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 15kg (Bin Control Setting Approx. 8kg) |
| Drain Pump | Integrated |
| Maximum Horizontal Drain Distance | Up to 10m |
| Maximum Vertical Drain Height | Up to 1.5m |
| Cooling | Air Cooled |
| Refrigerant | R290 / 70g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 633mm |
| Depth | 511mm |
| Height | 780mm |
| Net Weight | 45kg |
| Packed Weight | 55kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 1.6A |
| Starting Amperage | 9A |
| Electrical Consumption | 245W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 710W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Legs & Scoop |
| Package Dimensions | 735(W) x 570(D) x 864(H)mm |
| GEM Number | AIM0019 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.20m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.11m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.09m³ / 24 Hours |
Premium 25mm Hoshizaki Cube Ice
The Hoshizaki IM-45CPE-25-F produces individual 25mm cubes designed for excellent clarity, hardness and slow melting. Hoshizaki's closed-cell ice-making system forms each cube individually, helping deliver consistent size, shape and quality for professional beverage presentation.
Advanced Cleaning & Hygiene
Automated cleaning, water circuit and condenser cleaning notifications and easily removable internal components help simplify ongoing maintenance. The closed water circuit and food-grade stainless steel components support high hygiene standards and reliable long-term commercial operation.
Ideal For
Ideal for restaurants, cafés, bars, pubs, clubs, hotels and commercial kitchens requiring premium 25mm cube ice, particularly where traditional gravity drainage is difficult or a suitable drain cannot be positioned directly beside the ice maker.
