Hoshizaki
SKU / Model no: 91000163

Hoshizaki IM-130PE-23 96kg Self-Contained Cube Ice Maker – 23mm

$6,423.00 AUD + GST
$9,660.00 AUD + GST -34% $6,423.00 AUD + GST
SilverChef Logo
Rent, Try, Buy From $81.52 + GST Per Week
Apply Now →
Call Us for a Stellar Deal

Contact Us 0426 810 596

Last Price Guarantee
18+ Years Experience

Please let us know how we can assist you in the comments section. If you would like us to give you a call, kindly include your contact number.

Shipping Prices Tailored to you

    After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote

    Specifications
    • Type Ice Machines
    • Vendor Hoshizaki
    • SKU / Model no 91000163
    • Width(mm) 704
    • Depth(mm) 506
    • Height(mm) 1280
    • Warranty Two years
    • Weight 71kg
    • Spec Sheet Link
    • User Manual Link

    To check item availability for pickup, please email us the product code(s) along with your state. We'll confirm if the item(s) are available for pickup in your area sales@stellarequip.com.au

    Description Our Ordering Process

    Hoshizaki IM-130PE-23 96kg Self-Contained Cube Ice Maker – 23mm

    The Hoshizaki IM-130PE-23 Cube Ice Maker is a high-performance self-contained commercial ice machine producing Hoshizaki's renowned 23mm hard, clear and slow-melting cube ice. Producing approximately 96kg of ice per 24 hours at 21°C air / 15°C water conditions, it is designed for restaurants, bars, hotels, cafés and other busy hospitality venues requiring a reliable supply of premium-quality ice.

    Part of Hoshizaki's latest IM CUBE generation, the IM-130PE-23 introduces advanced features including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.

    The closed water circuit helps protect the ice-making process against contamination, while Hoshizaki's individual cube-forming system produces consistently clear and uniform cubes. An intelligent DC pump adjusts water flow throughout each stage of the ice-making cycle to help prevent chipped or cloudy ice while improving overall water efficiency.

    With an integrated storage bin providing approximately 50kg maximum storage capacity, a compact self-contained design and standard 220-240V 10A plug, the IM-130PE-23 provides a practical all-in-one solution for demanding commercial environments.

    Key Features

    • Self-contained commercial cube ice maker
    • Produces approximately 96kg of ice per 24 hours at 21°C air / 15°C water conditions
    • Up to approximately 106kg production per 24 hours at 10°C air / 10°C water conditions
    • Produces premium 23mm Hoshizaki cube ice
    • Hard, clear and slow-melting ice cubes
    • Approx. 50kg maximum ice storage capacity
    • Closed water circuit helps protect against contamination
    • Individual cube-forming system for consistent ice quality
    • Variable-speed magnetic DC pump motor
    • Smart water flow control throughout the ice-making cycle
    • Helps prevent chipped and cloudy ice cubes
    • Automated cleaning with wash auto-restart
    • Water circuit cleaning notification
    • Condenser cleaning notification
    • Dedicated standby and wash buttons
    • Adjustable cube dimple size
    • Easily removable water tank and DC pump components
    • Food-grade stainless steel internal components
    • High-grade foamed insulation
    • R290 natural refrigerant
    • Air-cooled refrigeration system
    • Compact self-contained design
    • 220-240V single phase
    • 10A plug
    • Installation kit and ice scoop included

    Ice Production Capacity

    10°C Air / 10°C Water Approx. 106kg / 24 Hours
    21°C Air / 15°C Water Approx. 96kg / 24 Hours
    32°C Air / 21°C Water Approx. 88kg / 24 Hours

    Specifications

    Model IM-130PE-23
    Item Number 91000163
    Ice Type 23mm Cube Ice
    Rated Production Capacity Approx. 96kg / 24 Hours at 21°C Air / 15°C Water
    Maximum Production Approx. 106kg / 24 Hours at 10°C Air / 10°C Water
    Maximum Storage Capacity Approx. 50kg (Bin Control Setting Approx. 28kg)
    Cooling Air Cooled
    Refrigerant R290 / 140g
    Exterior AISI 441 Stainless Steel / Galvanised Steel Rear
    Width 704mm
    Depth 506mm
    Height 1280mm
    Net Weight 71kg
    Packed Weight 83kg
    Electrical Supply 220-240V / 50Hz / Single Phase
    Plug 10A
    Running Amperage 4.2A
    Starting Amperage 19A
    Electrical Consumption 595W
    Ambient Operating Temperature 1°C to 40°C
    Water Supply Temperature 5°C to 35°C
    Water Supply Pressure 0.07-0.8 MPa (0.7-8 bar)
    Voltage Range Rated Voltage ±6%
    Electrical Circuit Breaker Protection 5A
    Heat Rejection 1450W at 32°C Air / 21°C Water
    Accessories Included Installation Kit & Scoop
    Package Dimensions 805(W) x 580(D) x 1375(H)mm
    GEM Number AIM0006

    Water Consumption

    10°C Air / 10°C Water Approx. 0.57m³ / 24 Hours
    21°C Air / 15°C Water Approx. 0.23m³ / 24 Hours
    32°C Air / 21°C Water Approx. 0.21m³ / 24 Hours

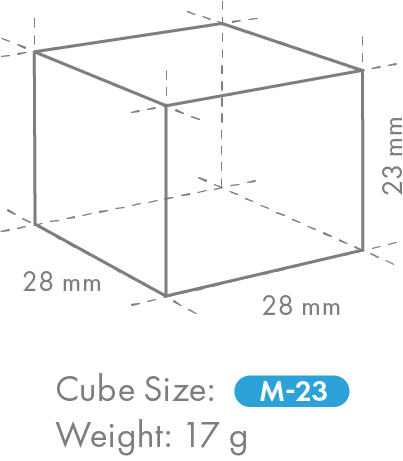

    Premium 23mm Hoshizaki Cube Ice

    The Hoshizaki IM-130PE-23 produces individual 23mm cubes designed for excellent clarity, hardness and slow melting. The closed-cell ice-making system forms each cube individually, delivering consistent shape and quality for professional beverage presentation.

    Advanced Cleaning & Hygiene

    The latest IM CUBE design incorporates automated cleaning with wash auto-restart alongside water circuit and condenser cleaning notifications. Combined with the closed water circuit and food-grade stainless steel internal components, these features help simplify maintenance and support high standards of hygiene in commercial environments.

    Ideal For

    Ideal for restaurants, bars, pubs, clubs, hotels, cafés, cocktail bars, event venues and other hospitality businesses requiring reliable high-volume production of premium 23mm cube ice.
