Hoshizaki IM-130PE-23-F 96kg Cube Ice Maker with Drain Pump – Self Contained

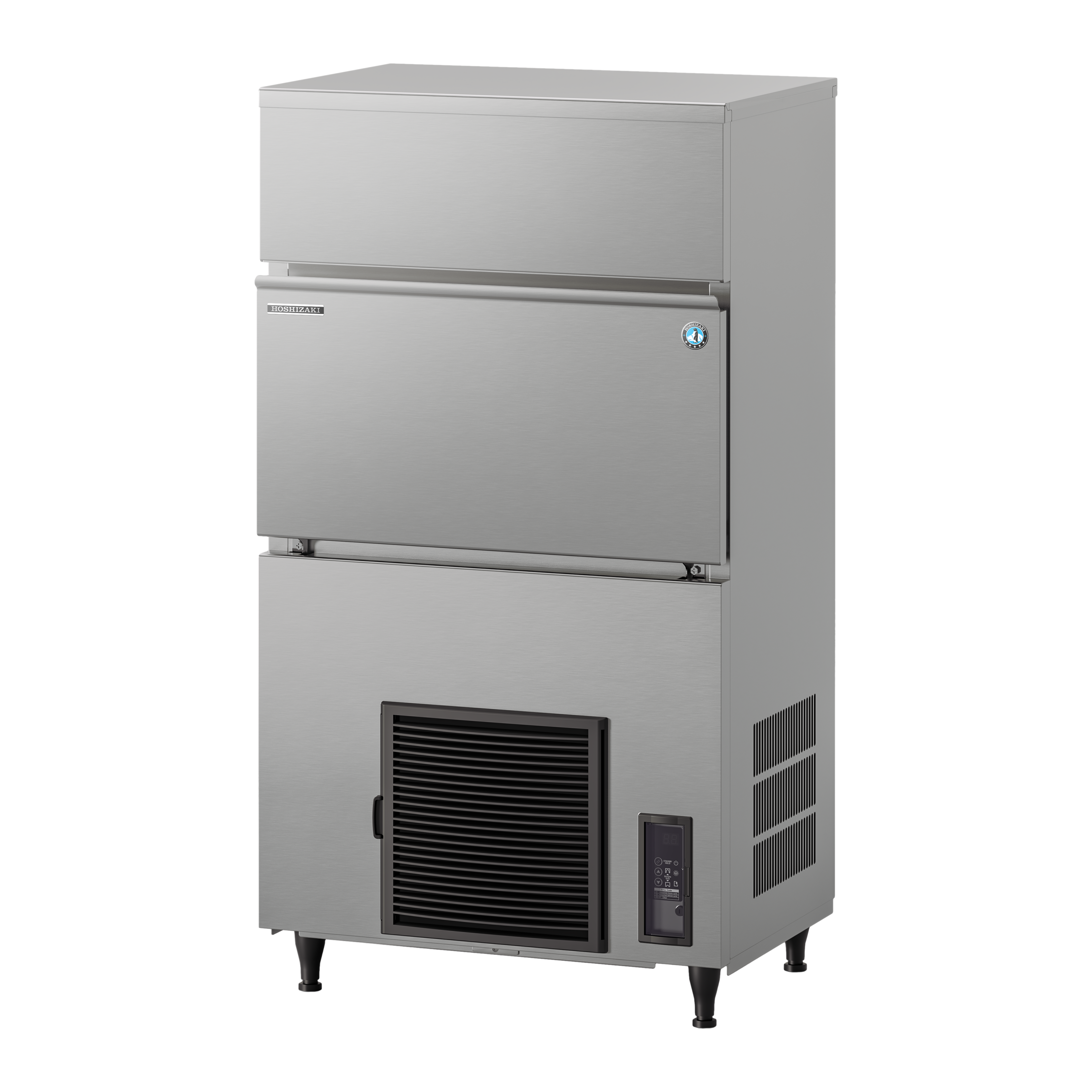

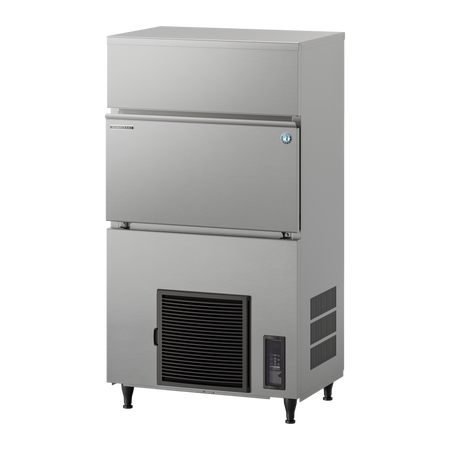

The Hoshizaki IM-130PE-23-F FlexiCUBE is a high-performance self-contained commercial ice maker designed to produce Hoshizaki's renowned hard, clear and slow-melting 23mm cube ice. Producing approximately 96kg of ice per 24 hours at 21°C air / 15°C water conditions, with output reaching approximately 106kg per 24 hours under optimal conditions, it's an excellent solution for busy restaurants, bars, hotels and other commercial hospitality environments.
As part of Hoshizaki's latest FlexiCUBE range, the IM-130PE-23-F features an integrated internal drain pump that allows drainage up to approximately 10 metres horizontally and 1.5 metres vertically. This provides greater installation flexibility in locations where conventional gravity drainage is difficult or where the available drain isn't positioned directly beside the ice machine.
The latest IM CUBE generation introduces advanced features including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
Hoshizaki's closed water circuit and Closed Cell System help protect the ice-making process against contamination while forming cubes individually for consistent clarity and quality. Combined with environmentally friendly R290 natural refrigerant, intelligent water-flow control and a standard 220-240V 10A plug, the IM-130PE-23-F delivers reliable and efficient commercial ice production.
Key Features
- Self-contained commercial cube ice maker
- Produces premium 23mm Hoshizaki cube ice
- Approx. 96kg ice production per 24 hours at 21°C air / 15°C water conditions
- Up to approx. 106kg production per 24 hours at 10°C air / 10°C water conditions
- Approx. 50kg maximum ice storage capacity
- FlexiCUBE design with integrated internal drain pump
- Drain pump allows drainage up to 10 metres horizontally
- Can pump drainage up to 1.5 metres vertically
- Ideal where conventional gravity drainage is difficult
- Closed water circuit helps protect against contamination
- Closed Cell System individually forms each ice cube
- Variable-speed magnetic DC pump motor
- Intelligent water-flow control throughout the ice-making cycle
- Helps prevent chipped or cloudy ice
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash controls
- Adjustable control panel for ice dimple size
- Removable water tank and DC pump for easier maintenance
- Food-grade AISI 430 stainless steel internal components
- High-grade foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- Optional scoop holder kit available
- 220-240V single phase operation
- 10A plug
- Installation kit and scoop included
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 106kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 96kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 88kg / 24 Hours |
Specifications
| Model | IM-130PE-23-F |
| Item Number | 91000164 |
| Configuration | Self-Contained FlexiCUBE with Integrated Drain Pump |
| Ice Type | 23mm Cube Ice |
| Rated Production Capacity | Approx. 96kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 106kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 50kg (Bin Control Setting Approx. 28kg) |
| Drain Pump | Integrated |
| Maximum Horizontal Drain Distance | Up to 10m |
| Maximum Vertical Drain Height | Up to 1.5m |
| Cooling | Air Cooled |
| Refrigerant | R290 / 140g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 704mm |
| Depth | 506mm |
| Height | 1280mm |
| Net Weight | 72kg |
| Packed Weight | 84kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 4.2A |
| Starting Amperage | 19A |
| Electrical Consumption | 595W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 1450W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit & Scoop |
| Package Dimensions | 805(W) x 580(D) x 1375(H)mm |
| GEM Number | AIM0006 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.57m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.23m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.21m³ / 24 Hours |
FlexiCUBE with Integrated Drain Pump
The FlexiCUBE integrated drain pump provides greater flexibility when positioning the ice maker. Drainage can be pumped up to approximately 10 metres horizontally and 1.5 metres vertically, helping overcome installation challenges where a suitable gravity drain isn't available directly beside or below the machine.

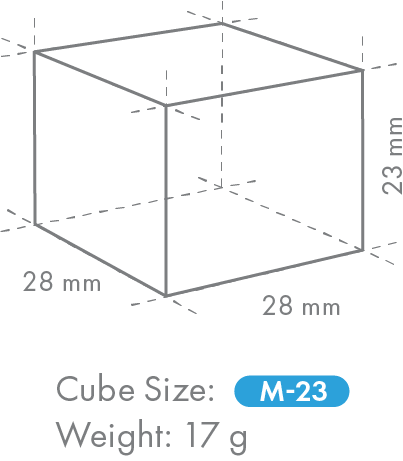

Premium 23mm Cube Ice
The IM-130PE-23-F produces Hoshizaki's renowned 23mm hard, clear and slow-melting cube ice. The Closed Cell System forms cubes individually, while intelligent water-flow control helps minimise chipped or cloudy cubes for consistent presentation and quality.
Advanced Hygiene & Cleaning
A fully enclosed water circuit helps protect the ice-making process against contamination. Automated cleaning with wash auto-restart, along with dedicated water circuit and condenser cleaning notifications, simplifies routine maintenance and supports high hygiene standards in demanding commercial environments.
Efficient & Sustainable Operation
The variable-speed magnetic DC pump motor intelligently regulates water flow throughout each production cycle. Combined with environmentally friendly R290 natural refrigerant, standby functionality, premium foamed insulation and an improved water tank design, the machine is engineered to reduce unnecessary energy and water consumption.
Ideal For
Ideal for restaurants, bars, pubs, clubs, hotels, cafés, entertainment venues and other hospitality businesses requiring dependable daily ice production with the added installation flexibility of an integrated drain pump.
