Hoshizaki
SKU / Model no: 91000166

Hoshizaki IM-130PE-28-F 102kg Cube Ice Maker with Drain Pump

$6,789.00 AUD + GST
$10,210.00 AUD + GST -34% $6,789.00 AUD + GST
SilverChef Logo
Rent, Try, Buy From $86.17 + GST Per Week
Apply Now →
Call Us for a Stellar Deal

Contact Us 0426 810 596

Last Price Guarantee
18+ Years Experience

Please let us know how we can assist you in the comments section. If you would like us to give you a call, kindly include your contact number.

Shipping Prices Tailored to you

    After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote

    Specifications
    • Type Ice Machines
    • Vendor Hoshizaki
    • SKU / Model no 91000166
    • Width(mm) 704
    • Depth(mm) 506
    • Height(mm) 1280
    • Warranty Two years
    • Weight 72kg
    • Spec Sheet Link
    • User Manual Link

    To check item availability for pickup, please email us the product code(s) along with your state. We'll confirm if the item(s) are available for pickup in your area sales@stellarequip.com.au

    Description Our Ordering Process

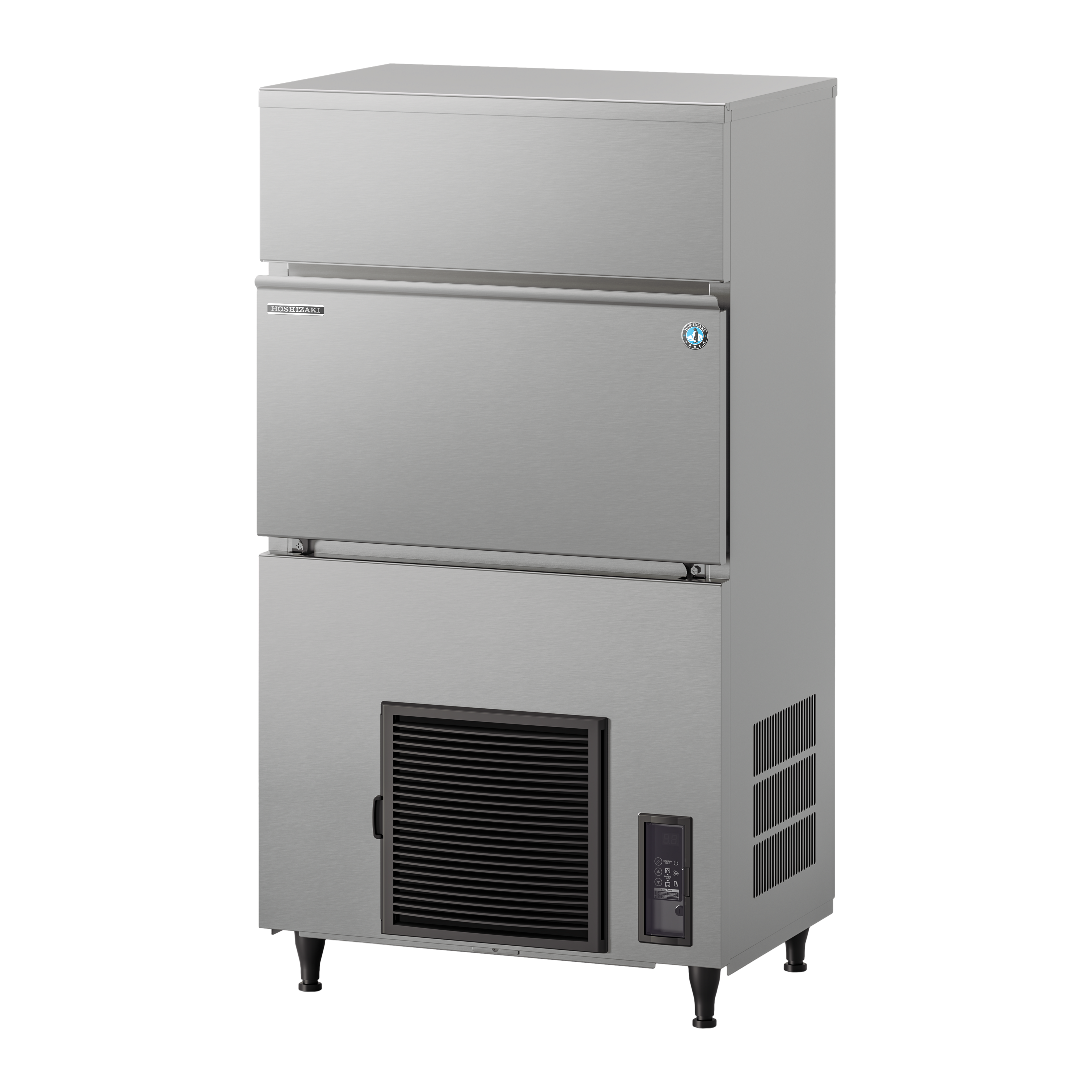

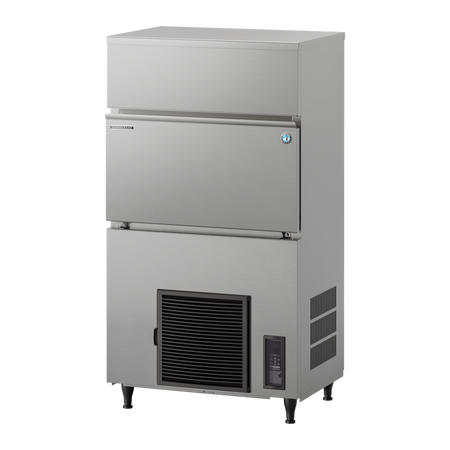

    Hoshizaki IM-130PE-28-F 102kg Cube Ice Maker with Drain Pump

    The Hoshizaki IM-130PE-28-F FlexiCUBE Ice Maker is a high-performance self-contained commercial ice machine designed to produce Hoshizaki's renowned 28mm hard, clear and slow-melting cube ice. Producing approximately 102kg of ice per 24 hours at 21°C air / 15°C water conditions, this model is ideal for busy bars, restaurants, hotels, cafés and hospitality venues requiring reliable, high-quality cube ice.

    Part of Hoshizaki's latest FlexiCUBE range, the IM-130PE-28-F incorporates an integrated drain pump that provides greater flexibility when choosing where to install the machine. The drain can be positioned up to 10 metres horizontally and 1.5 metres vertically from the unit, making this model particularly useful for bars and commercial kitchens where access to a conventional gravity drain is difficult.

    The advanced closed water circuit and individual cube-forming system help produce consistently clear, high-quality ice while protecting the ice-making process from contamination. A variable-speed magnetic DC pump intelligently controls water flow throughout the production cycle, helping prevent chipped or cloudy cubes while improving water and energy efficiency.

    Designed for demanding commercial environments, the IM-130PE-28-F also features automatic cleaning with wash auto-restart, water circuit and condenser cleaning notifications, dedicated standby and wash controls, durable stainless steel construction and removable components for easier maintenance.

    Key Features

    • Self-contained commercial cube ice maker
    • Produces approximately 102kg of ice per 24 hours at 21°C air / 15°C water conditions
    • Up to approximately 109kg production per 24 hours at 10°C air / 10°C water conditions

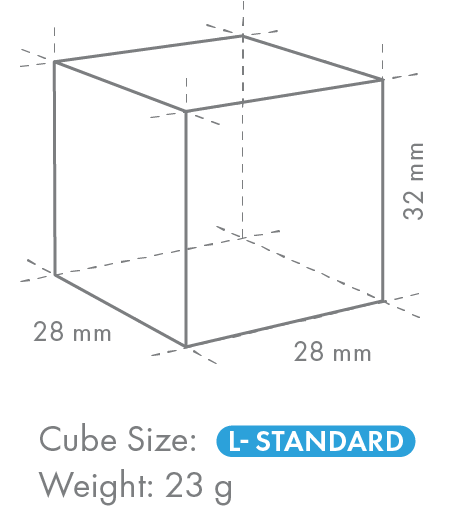

    • Produces premium 28mm Hoshizaki cube ice
    • Hard, clear and slow-melting ice cubes
    • Approx. 50kg maximum ice storage capacity
    • Integrated drain pump for flexible installation
    • Drain can be positioned up to 10 metres horizontally from the machine
    • Supports drainage up to 1.5 metres vertically
    • Closed water circuit helps protect against contamination
    • Individual cube-forming system for consistent ice quality
    • Variable-speed magnetic DC pump motor
    • Smart water flow control helps prevent chipped or cloudy cubes
    • Automatic cleaning with wash auto-restart
    • Water circuit cleaning notification
    • Condenser cleaning notification
    • Dedicated standby and wash buttons
    • Adjustable cube dimple size
    • Removable water tank and DC pump components for easier maintenance
    • High-grade stainless steel construction
    • Energy-efficient R290 natural refrigerant
    • Air-cooled refrigeration system
    • Compact self-contained design
    • 220-240V single phase with 10A plug
    • Installation kit and ice scoop included

    Ice Production Capacity

    10°C Air / 10°C Water Approx. 109kg / 24 Hours
    21°C Air / 15°C Water Approx. 102kg / 24 Hours
    32°C Air / 21°C Water Approx. 91kg / 24 Hours

    Specifications

    Model IM-130PE-28-F
    Item Number 91000166
    Ice Type 28mm Cube Ice
    Rated Production Capacity Approx. 102kg / 24 Hours at 21°C Air / 15°C Water
    Maximum Production Approx. 109kg / 24 Hours at 10°C Air / 10°C Water
    Maximum Storage Capacity Approx. 50kg (Bin Control Setting Approx. 28kg)
    Drain Pump Integrated
    Drain Pump Range Up to 10m Horizontal / 1.5m Vertical
    Cooling Air Cooled
    Refrigerant R290 / 140g
    Exterior AISI 441 Stainless Steel / Galvanised Steel Rear
    Width 704mm
    Depth 506mm
    Height 1280mm
    Net Weight 72kg
    Packed Weight 82kg
    Electrical Supply 220-240V / 50Hz / Single Phase
    Plug 10A
    Running Amperage 4.3A
    Starting Amperage 19A
    Electrical Consumption 565W
    Ambient Operating Temperature 1°C to 40°C
    Water Supply Temperature 5°C to 35°C
    Water Supply Pressure 0.07-0.8 MPa (0.7-8 bar)
    Voltage Range Rated Voltage ±6%
    Electrical Circuit Breaker Protection 5A
    Heat Rejection 1450W at 32°C Air / 21°C Water
    Accessories Included Installation Kit & Scoop
    Package Dimensions 805(W) x 580(D) x 1375(H)mm
    GEM Number AIM0005

    Integrated Drain Pump for Flexible Installation

    One of the key advantages of the Hoshizaki IM-130PE-28-F FlexiCUBE is its integrated drain pump. Unlike conventional gravity-drain ice machines, the FlexiCUBE can be installed up to 10 metres horizontally and 1.5 metres vertically from the drain, providing considerably more flexibility when planning commercial kitchen and bar layouts.

    Premium 28mm Hoshizaki Cube Ice

    The closed-cell ice-making system forms each cube individually, producing consistent 28mm hard and slow-melting ice cubes. This makes the IM-130PE-28-F particularly well suited to beverages where presentation, dilution control and ice longevity are important.

    Ideal For

    Ideal for restaurants, bars, pubs, clubs, hotels, cafés, cocktail bars, event venues and other hospitality businesses requiring high-volume production of premium cube ice with the installation flexibility of an integrated drain pump.
