Hoshizaki IM-65PE-25 46KG CUBE ICE MAKER, SELF CONTAINED
After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote

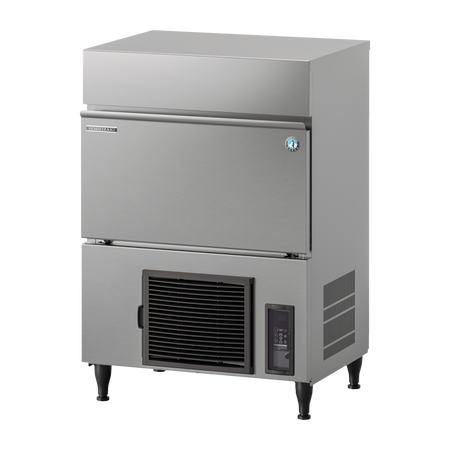

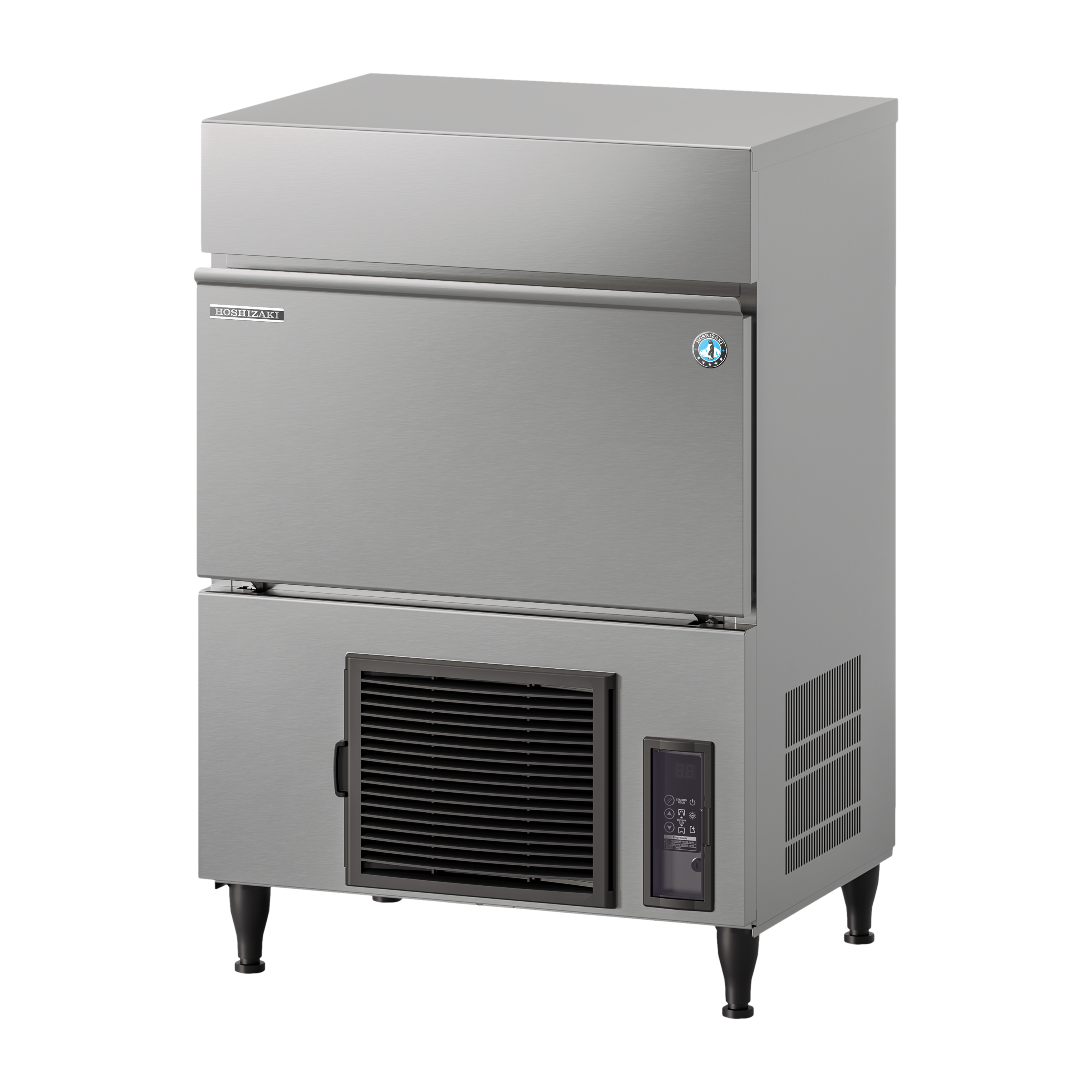

Hoshizaki IM-65PE-25 46kg Self-Contained Cube Ice Maker – 25mm
The Hoshizaki IM-65PE-25 Cube Ice Maker is a self-contained commercial ice machine from the latest IM CUBE series, producing Hoshizaki's renowned 25mm hard, clear and slow-melting cube ice. Producing approximately 46kg of ice per 24 hours at 21°C air / 15°C water conditions, it provides dependable ice production for restaurants, cafés, bars, hotels, pubs, clubs and other busy hospitality venues.
The latest Hoshizaki IM CUBE generation introduces a range of upgrades including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
A closed water circuit helps protect the ice-making process against contamination, while Hoshizaki's closed-cell system forms each cube individually for consistent clarity, shape and quality. Intelligent water flow control adjusts throughout the ice-making cycle to help prevent chipped or cloudy cubes while improving water and energy efficiency.
With approximately 26kg maximum ice storage capacity, environmentally friendly R290 refrigerant and a standard 220-240V 10A plug, the IM-65PE-25 combines strong commercial ice production with generous built-in storage in a compact, self-contained design.
Key Features
- Self-contained commercial cube ice maker
- Produces approximately 46kg of ice per 24 hours at 21°C air / 15°C water conditions
- Up to approximately 53kg production per 24 hours at 10°C air / 10°C water conditions
- Premium 25mm Hoshizaki cube ice
- Hard, clear and slow-melting ice cubes
- Approx. 26kg maximum ice storage capacity
- Closed water circuit helps protect the ice-making process against contamination
- Closed-cell system forms each cube individually
- Variable-speed magnetic DC pump motor
- Intelligent water flow adjustment throughout the production cycle
- Helps prevent chipped or cloudy ice cubes
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash controls
- Adjustable control panel for cube dimple size
- Removable water tank and DC pump for easier servicing
- Food-grade AISI 430 stainless steel internal components
- High-grade foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- Optional Scoop Holder-Kit available
- 220-240V single phase
- 10A plug
- Installation kit, legs and ice scoop included
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 53kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 46kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 37kg / 24 Hours |
Specifications
| Model | IM-65PE-25 |
| Item Number | 91000159 |
| Ice Type | 25mm Cube Ice |
| Rated Production Capacity | Approx. 46kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 53kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 26kg (Bin Control Setting Approx. 18kg) |
| Cooling | Air Cooled |
| Refrigerant | R290 / 110g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 633mm |
| Depth | 506mm |
| Height | 930mm (840mm without legs) |
| Net Weight | 48kg |
| Packed Weight | 58kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 2.1A |
| Starting Amperage | 11A |
| Electrical Consumption | 305W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 830W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Legs & Scoop |
| Package Dimensions | 735(W) x 570(D) x 1012(H)mm |
| GEM Number | AIM0009 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.22m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.14m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.11m³ / 24 Hours |

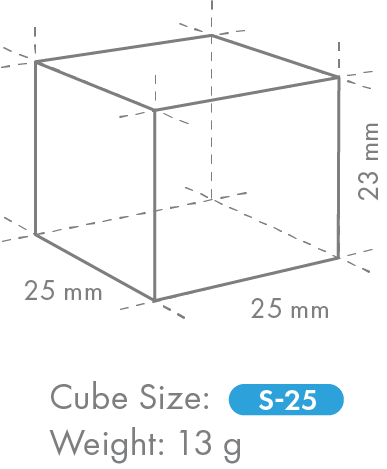

Premium 25mm Hoshizaki Cube Ice
The Hoshizaki IM-65PE-25 produces individual 25mm cubes designed for excellent clarity, hardness and slow melting. Hoshizaki's closed-cell ice-making system forms each cube individually, helping provide consistent size, shape and quality for professional beverage presentation.
Advanced Cleaning & Hygiene
Automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications and easily removable internal components help simplify ongoing maintenance. The closed water circuit and food-grade stainless steel components support high hygiene standards and reliable long-term commercial operation.
High-Capacity Built-In Ice Storage
With approximately 26kg maximum storage capacity, the IM-65PE-25 keeps a substantial supply of ice ready for service while maintaining the convenience of an all-in-one self-contained ice machine.
Compact Commercial Design
At just 633mm wide, the IM-65PE-25 delivers substantial production and storage capacity without taking up excessive floor space. Its compact footprint makes it well suited to professional kitchens, bars and service areas where efficient use of space is important.
Ideal For
Ideal for restaurants, cafés, bars, pubs, clubs, hotels, cocktail bars and other hospitality businesses requiring a dependable supply of premium 25mm cube ice.
