Hoshizaki IM-65PE-25-F 46kg Self-Contained Cube Ice Maker with Drain Pump – 25mm
After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote
Hoshizaki IM-65PE-25-F 46kg Self-Contained Cube Ice Maker with Drain Pump – 25mm
The Hoshizaki IM-65PE-25-F FlexiCUBE is a self-contained commercial ice maker with an integrated drain pump, producing Hoshizaki's renowned 25mm hard and slow-melting cube ice. Producing approximately 46kg of ice per 24 hours at 21°C air / 15°C water conditions, it combines dependable commercial ice production with greater flexibility when choosing an installation location.
As part of Hoshizaki's FlexiCUBE range, the IM-65PE-25-F features an integrated drain pump that allows drainage up to 10 metres horizontally and 1.5 metres vertically. This provides greater installation flexibility in bars, cafés, restaurants and commercial kitchens where access to a conventional gravity drain may be limited.
The latest IM CUBE generation introduces automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
A closed water circuit helps protect the ice-making process against contamination, while Hoshizaki's closed-cell system forms each cube individually for consistent ice quality. With approximately 26kg maximum ice storage capacity, R290 natural refrigerant and a standard 220-240V 10A plug, the IM-65PE-25-F is a practical all-in-one solution for demanding hospitality environments.
Key Features
- FlexiCUBE self-contained commercial cube ice maker
- Integrated drain pump for flexible installation
- Drainage possible up to 10 metres horizontally
- Drainage possible up to 1.5 metres vertically
- Produces approximately 46kg of ice per 24 hours at 21°C air / 15°C water conditions
- Up to approximately 53kg production per 24 hours at 10°C air / 10°C water conditions
- Premium 25mm Hoshizaki cube ice
- Hard and slow-melting ice cubes
- Approx. 26kg maximum ice storage capacity
- Closed water circuit helps protect the ice-making process against contamination
- Closed-cell system forms each cube individually
- Variable-speed magnetic DC pump motor
- Smart water flow technology adjusts throughout the ice-making cycle
- Helps prevent chipped or cloudy ice cubes
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash controls
- Adjustable control panel for cube dimple size
- Removable water tank and DC pump for easier servicing
- Food-grade AISI 430 stainless steel internal components
- High-grade foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- 220-240V single phase
- 10A plug
- Installation kit, legs and ice scoop included
FlexiCUBE Integrated Drain Pump
A key advantage of the Hoshizaki FlexiCUBE design is its integrated drain pump. The IM-65PE-25-F can discharge drainage water up to 10 metres horizontally and 1.5 metres vertically, providing considerably more flexibility when positioning the machine.
This makes the unit particularly useful where the nearest suitable drain cannot be positioned directly beside or below the ice maker, helping overcome common drainage restrictions in commercial kitchen and bar fit-outs.
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 53kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 46kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 37kg / 24 Hours |
Specifications
| Model | IM-65PE-25-F |
| Item Number | 91000160 |
| Series | FlexiCUBE |
| Ice Type | 25mm Cube Ice |
| Rated Production Capacity | Approx. 46kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 53kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 26kg (Bin Control Setting Approx. 18kg) |
| Drain Pump | Integrated |
| Maximum Horizontal Drainage | Up to 10m |
| Maximum Vertical Drainage | Up to 1.5m |
| Cooling | Air Cooled |
| Refrigerant | R290 / 110g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 633mm |
| Depth | 506mm |
| Height | 930mm (840mm without legs) |
| Net Weight | 49kg |
| Packed Weight | 59kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 2.1A |
| Starting Amperage | 11A |
| Electrical Consumption | 305W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 830W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Legs & Scoop |
| Package Dimensions | 735(W) x 570(D) x 1012(H)mm |
| GEM Number | AIM0009 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.22m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.14m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.11m³ / 24 Hours |

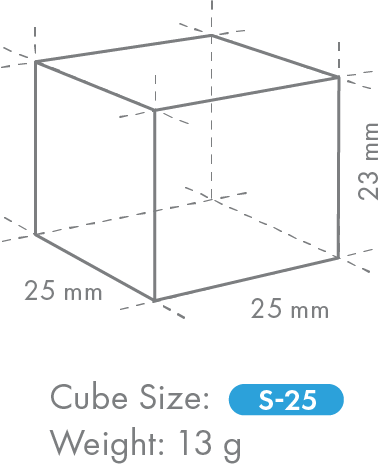

Premium 25mm Hoshizaki Cube Ice
The Hoshizaki IM-65PE-25-F produces individual 25mm cubes designed for hardness and slow melting. Hoshizaki's closed-cell ice-making system forms each cube individually, helping deliver consistent size and quality for professional beverage service.
Advanced Cleaning & Hygiene
Automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications and easily removable components help simplify ongoing maintenance. The closed water circuit and food-grade stainless steel components support high hygiene standards and reliable long-term commercial operation.
High-Capacity Built-In Ice Storage
With approximately 26kg maximum storage capacity, the IM-65PE-25-F keeps a substantial supply of ice ready for busy service periods while retaining the convenience of an all-in-one self-contained machine.
Compact Commercial Design
At just 633mm wide, the IM-65PE-25-F delivers strong production and storage capacity within a relatively compact footprint. Combined with its integrated drain pump, this makes it particularly suited to commercial spaces where installation flexibility is important.
Ideal For
Ideal for restaurants, cafés, bars, pubs, clubs, hotels, cocktail bars and commercial kitchens requiring premium 25mm cube ice, particularly where access to a conventional gravity drain is limited.
