Hoshizaki IM-65PE-28-F 48kg Self-Contained Cube Ice Maker with Drain Pump – 28mm
The Hoshizaki IM-65PE-28-F FlexiCUBE is a self-contained commercial ice maker with an integrated drain pump, producing Hoshizaki's renowned 28mm hard, clear and slow-melting cube ice. Producing approximately 48kg of ice per 24 hours at 21°C air / 15°C water conditions, it combines reliable commercial ice production with greater flexibility when choosing an installation location.
As part of Hoshizaki's FlexiCUBE range, the IM-65PE-28-F incorporates an internal drain pump that allows drainage up to 10 metres horizontally and 1.5 metres vertically. This makes the machine particularly useful for bars, cafés, restaurants and commercial kitchens where a conventional gravity drain cannot be positioned directly beside the ice maker.
The latest IM CUBE generation also introduces automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
A closed water circuit helps protect the ice-making process against contamination, while Hoshizaki's closed-cell system forms each cube individually for consistent clarity, shape and quality. With approximately 26kg maximum ice storage capacity, R290 natural refrigerant and a standard 220-240V 10A plug, the IM-65PE-28-F provides a practical all-in-one solution for demanding hospitality environments.
Key Features
- FlexiCUBE self-contained commercial cube ice maker
- Integrated drain pump for flexible installation
- Drainage possible up to 10 metres horizontally
- Drainage possible up to 1.5 metres vertically
- Produces approximately 48kg of ice per 24 hours at 21°C air / 15°C water conditions
- Up to approximately 55kg production per 24 hours at 10°C air / 10°C water conditions
- Premium 28mm Hoshizaki cube ice
- Hard, clear and slow-melting ice cubes
- Approx. 26kg maximum ice storage capacity
- Closed water circuit helps protect against contamination
- Closed-cell system forms each cube individually
- Variable-speed magnetic DC pump motor
- Smart water flow technology for consistent ice production
- Helps prevent chipped or cloudy ice cubes
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash controls
- Adjustable control panel for cube dimple size
- Removable water tank and DC pump for easier servicing
- Food-grade AISI 430 stainless steel internal components
- High-grade foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- Optional Scoop Holder-Kit available
- 220-240V single phase
- 10A plug
- Installation kit, legs and ice scoop included
FlexiCUBE Integrated Drain Pump
The key advantage of the Hoshizaki FlexiCUBE design is its integrated drain pump. Unlike conventional gravity-drain ice machines, the IM-65PE-28-F can discharge drainage water up to 10 metres horizontally and 1.5 metres vertically.
This provides considerably greater flexibility when positioning the ice maker, particularly in locations where the nearest suitable drain is not directly beside or below the machine. It can help overcome common installation restrictions in bars, commercial kitchens and other hospitality fit-outs.
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 55kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 48kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 39kg / 24 Hours |
Specifications
| Model | IM-65PE-28-F |
| Item Number | 91000162 |
| Series | FlexiCUBE |
| Ice Type | 28mm Cube Ice |
| Rated Production Capacity | Approx. 48kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 55kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 26kg (Bin Control Setting Approx. 18kg) |
| Drain Pump | Integrated |
| Maximum Horizontal Drainage | Up to 10m |
| Maximum Vertical Drainage | Up to 1.5m |
| Cooling | Air Cooled |
| Refrigerant | R290 / 110g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 633mm |
| Depth | 506mm |
| Height | 930mm (840mm without legs) |
| Net Weight | 49kg |
| Packed Weight | 59kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 2.1A |
| Starting Amperage | 11A |
| Electrical Consumption | 290W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 830W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Legs & Scoop |
| Package Dimensions | 735(W) x 570(D) x 1012(H)mm |
| GEM Number | AIM0010 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.43m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.12m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.10m³ / 24 Hours |

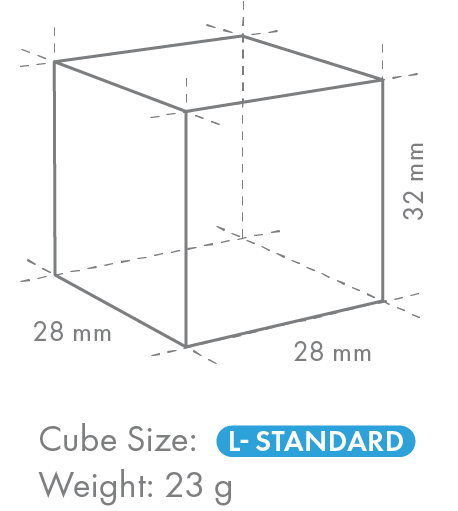

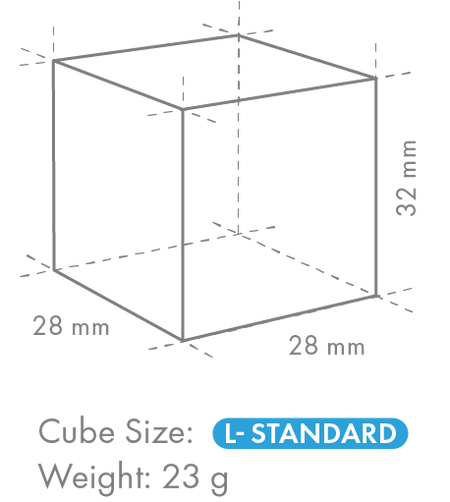

Premium 28mm Hoshizaki Cube Ice
The Hoshizaki IM-65PE-28-F produces individual 28mm cubes designed for excellent clarity, hardness and slow melting. Hoshizaki's closed-cell ice-making system forms each cube individually, helping provide consistent size and quality for professional beverage presentation.
Advanced Cleaning & Hygiene
Automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications and easily removable components help simplify ongoing maintenance. The closed water circuit and food-grade stainless steel components support high hygiene standards and reliable long-term commercial operation.
High-Capacity Built-In Ice Storage
With approximately 26kg maximum storage capacity, the IM-65PE-28-F keeps a substantial supply of ice ready for busy service periods while retaining the convenience of a self-contained machine.
Ideal For
Ideal for restaurants, cafés, bars, pubs, clubs, hotels, cocktail bars and commercial kitchens requiring premium cube ice, particularly where access to a conventional gravity drain is limited.
