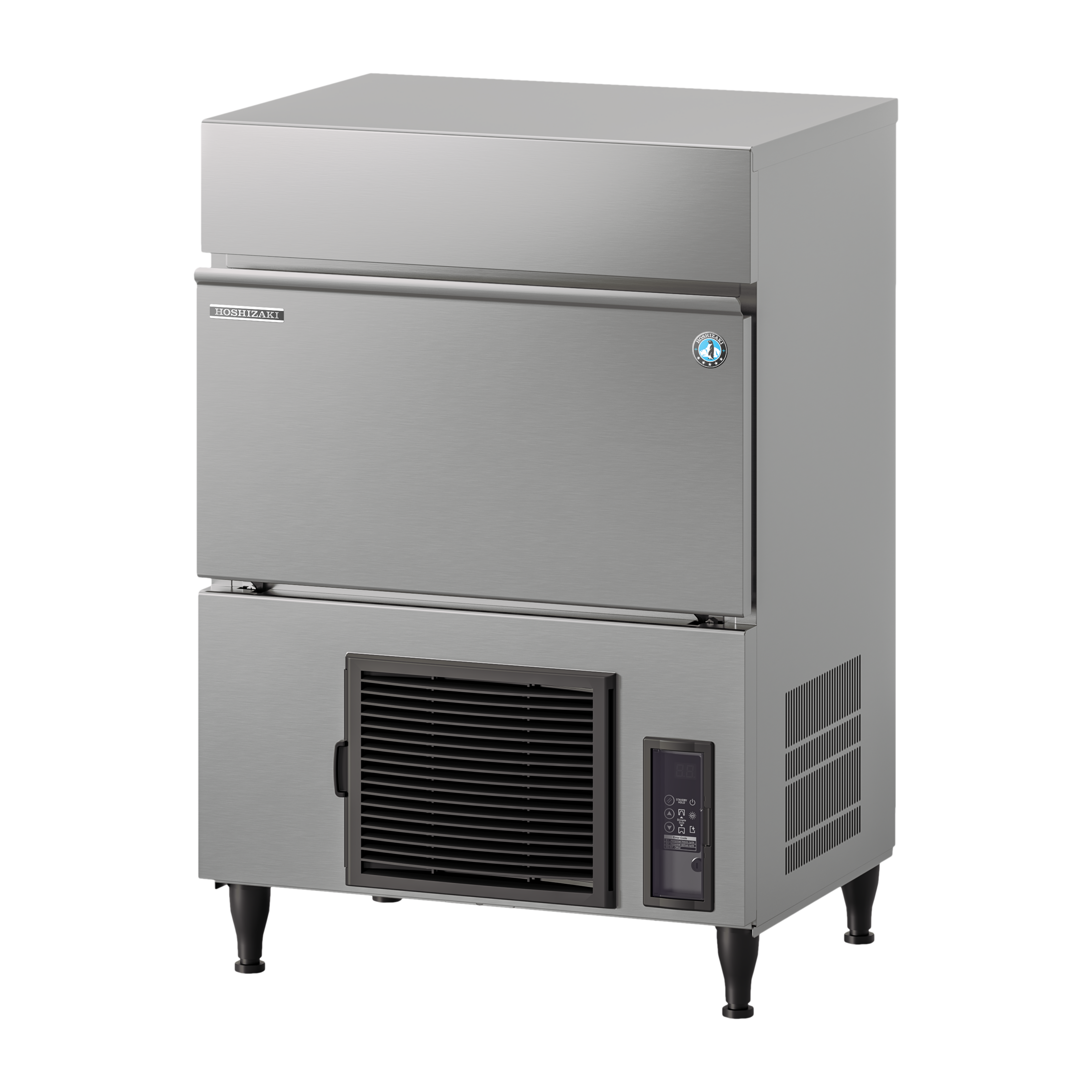

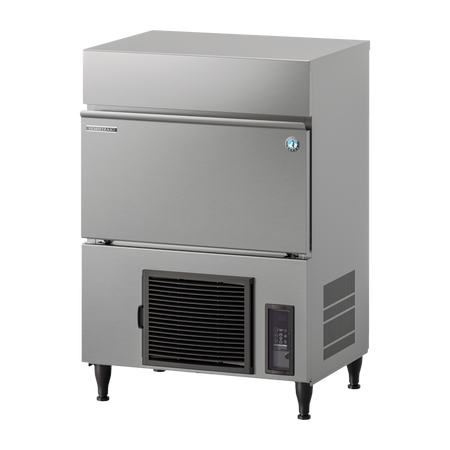

Hoshizaki IM-65PE-28 48kg Self-Contained Cube Ice Maker – 28mm
After processing your order, we'll contact you within 1-2 business hours to provide a tailored shipping and order quote
Hoshizaki IM-65PE-28 48kg Self-Contained Cube Ice Maker – 28mm
The Hoshizaki IM-65PE-28 Cube Ice Maker is a self-contained commercial ice machine from the latest IM CUBE range, producing Hoshizaki's renowned 28mm hard, clear and slow-melting cube ice. Producing approximately 48kg of ice per 24 hours at 21°C air / 15°C water conditions, it provides dependable ice production for busy restaurants, cafés, bars, hotels and other hospitality venues.
The latest Hoshizaki IM CUBE generation introduces a range of upgrades including automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high-grade stainless steel components, a variable-speed magnetic DC pump motor and dedicated standby and wash controls.
A closed water circuit helps protect the cubing process against contamination, while Hoshizaki's closed-cell system forms each cube individually for consistent clarity, shape and quality. The intelligent variable-speed pump automatically adjusts water flow throughout the ice-making cycle to help prevent chipped or cloudy cubes while improving water and energy efficiency.
With approximately 26kg maximum ice storage capacity, R290 natural refrigerant and a standard 220-240V 10A plug, the IM-65PE-28 combines strong commercial ice production and generous built-in storage within one self-contained unit.
Key Features
- Self-contained commercial cube ice maker
- Produces approximately 48kg of ice per 24 hours at 21°C air / 15°C water conditions
- Up to approximately 55kg production per 24 hours at 10°C air / 10°C water conditions
- Premium 28mm Hoshizaki cube ice
- Hard, clear and slow-melting ice cubes
- Approx. 26kg maximum ice storage capacity
- Closed water circuit helps protect the ice-making process against contamination
- Closed-cell system forms each cube individually
- Variable-speed magnetic DC pump motor
- Intelligent water flow adjustment throughout the production cycle
- Helps prevent chipped or cloudy ice cubes
- Automated cleaning with wash auto-restart
- Water circuit cleaning notification
- Condenser cleaning notification
- Dedicated standby and wash controls
- Adjustable control panel for cube dimple size
- Removable water tank and DC pump for easier servicing
- Food-grade AISI 430 stainless steel internal components
- High-grade foamed insulation
- Eco-friendly R290 natural refrigerant
- Air-cooled refrigeration system
- Optional Scoop Holder-Kit available
- 220-240V single phase
- 10A plug
- Installation kit, legs and ice scoop included
Ice Production Capacity
| 10°C Air / 10°C Water | Approx. 55kg / 24 Hours |
| 21°C Air / 15°C Water | Approx. 48kg / 24 Hours |
| 32°C Air / 21°C Water | Approx. 39kg / 24 Hours |
Specifications
| Model | IM-65PE-28 |
| Item Number | 91000161 |
| Ice Type | 28mm Cube Ice |
| Rated Production Capacity | Approx. 48kg / 24 Hours at 21°C Air / 15°C Water |
| Maximum Production | Approx. 55kg / 24 Hours at 10°C Air / 10°C Water |
| Maximum Storage Capacity | Approx. 26kg (Bin Control Setting Approx. 18kg) |
| Cooling | Air Cooled |
| Refrigerant | R290 / 110g |
| Exterior | AISI 441 Stainless Steel / Galvanised Steel Rear |
| Width | 633mm |
| Depth | 506mm |
| Height | 930mm (840mm without legs) |
| Net Weight | 48kg |
| Packed Weight | 58kg |
| Electrical Supply | 220-240V / 50Hz / Single Phase |
| Plug | 10A |
| Running Amperage | 2.1A |
| Starting Amperage | 11A |
| Electrical Consumption | 290W |
| Ambient Operating Temperature | 1°C to 40°C |
| Water Supply Temperature | 5°C to 35°C |
| Water Supply Pressure | 0.07-0.8 MPa (0.7-8 bar) |
| Voltage Range | Rated Voltage ±6% |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection | 830W at 32°C Air / 21°C Water |
| Accessories Included | Installation Kit, Legs & Scoop |
| Package Dimensions | 735(W) x 570(D) x 1012(H)mm |
| GEM Number | AIM0010 |
Water Consumption
| 10°C Air / 10°C Water | Approx. 0.43m³ / 24 Hours |
| 21°C Air / 15°C Water | Approx. 0.12m³ / 24 Hours |
| 32°C Air / 21°C Water | Approx. 0.10m³ / 24 Hours |

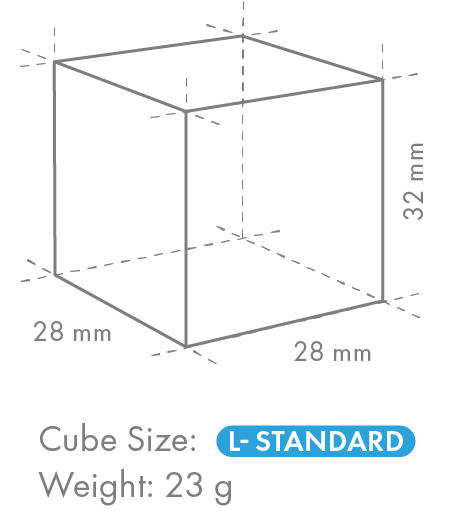

Premium 28mm Hoshizaki Cube Ice
The Hoshizaki IM-65PE-28 produces individual 28mm cubes designed for excellent clarity, hardness and slow melting. Hoshizaki's closed-cell ice-making system forms each cube individually, helping provide consistent size, shape and quality for professional beverage presentation.
Advanced Cleaning & Hygiene
Automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications and easily removable internal components help simplify ongoing maintenance. The closed water circuit and food-grade stainless steel components support high hygiene standards and reliable long-term commercial operation.
High-Capacity Built-In Ice Storage
With approximately 26kg maximum storage capacity, the IM-65PE-28 provides significantly more built-in ice storage than smaller self-contained models. This helps maintain a ready supply of ice during busy service periods without requiring a separate external storage bin.
Ideal For
Ideal for restaurants, cafés, bars, pubs, clubs, hotels, cocktail bars and other hospitality businesses requiring a reliable supply of premium 28mm cube ice.
